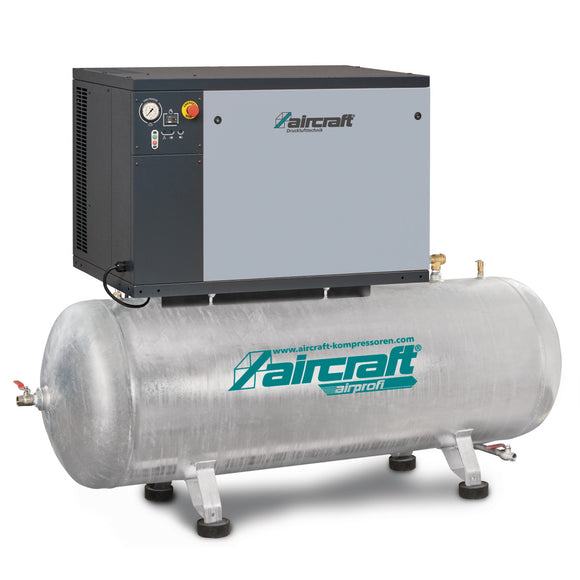

Piston compressor AIRPROFI 1003/500/10 H Silent

€8.856,00 EUR (€7.200,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2022860 Barcode: 4036351288138

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out

Piston compressor AIRPROFI /500/.
  • Extremely quiet due to sound-insulated housing and additional silencer on the intake filter
  • Suitable for installation even in noise-sensitive areas and the direct working environment
  • Two-cylinder high-performance unit made of grey cast iron with low speed warrantys particularly quiet and low-vibration operation: less wear and longer service life
  • Large fan impeller on the compressor and temperature-controlled radial fan on the housing ensure optimum cooling of the entire interior
  • Inter- and aftercooler as well as an additional air duct between motor and compressor reduce condensate formation
  • High-quality Condor pressure switch

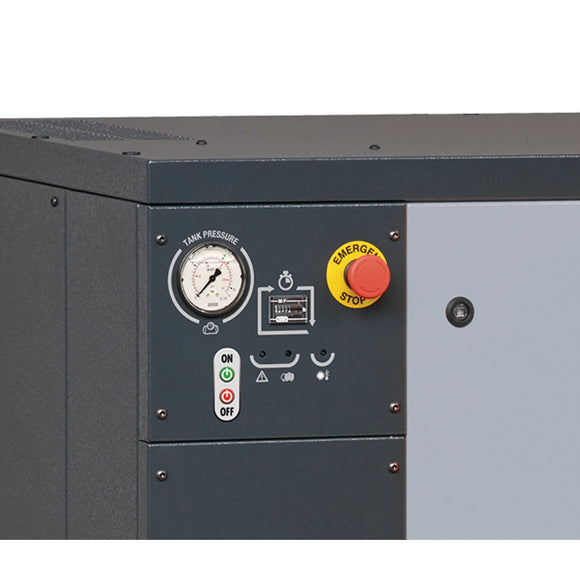

  • Equipped with glycerine pressure gauge, hour meter and fault indication via LED lights
  • Quality electric motor with motor protection switch and start-up relief
  • Integrated phase monitoring
  • Facility for easy tensioning of the V-belt
  • Service-friendly design
  • Ready for connection with all fittings and safety devices
  • Models with compressed air tank: Galvanised air reservoir inside and out with 15-year warranty against rusting through


.
  • Air outlet 3/4 "
  • Compressor speed 1100 min¯¹
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling capacity 770 l/min
  • Frequency 50 Hz
  • Height 1840 mm
  • Length 2020 mm
  • Maximum pressure 10 bar
  • Motor output power 7.5 kW
  • Motor power (input power) 8.7 kW
  • Net weight 410 kg
  • Number of compressor stages 2
  • Number of cylinders 2
  • Pressure vessel capacity 500 l
  • Sound pressure level 64 dB(A)
  • Star-delta switch ✔
  • Suction capacity 1080 l/min
  • Supply voltage 400 V
  • Width 980 mm
