Stationary piston compressor AIRPROFI DUO 703 / 2x75 / 13K

€5.521,47 EUR (€4.489,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2023186 Barcode: 9006248013858

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

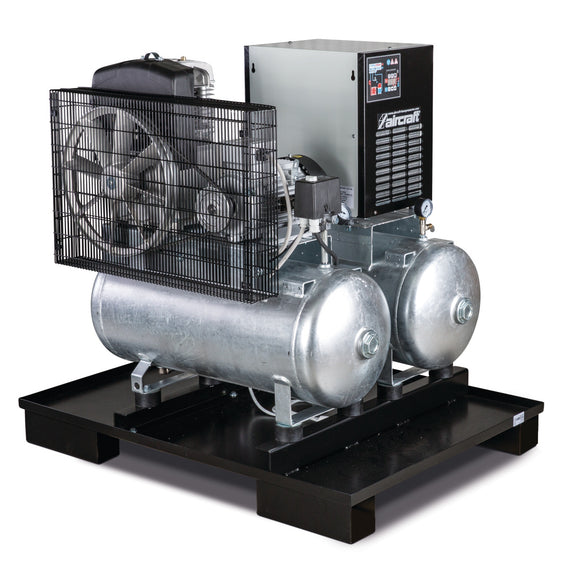

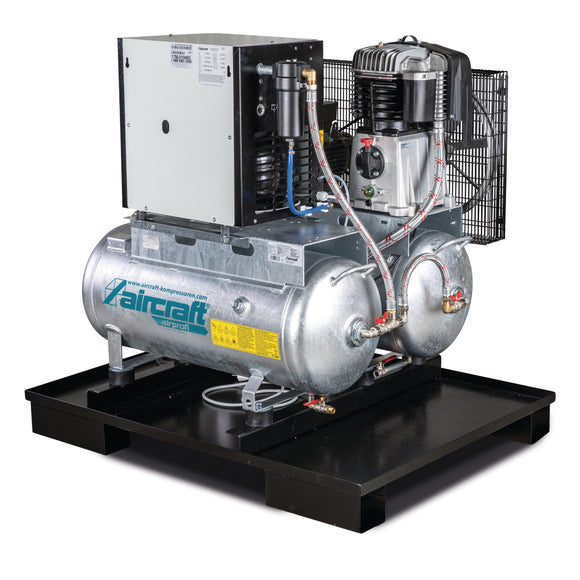

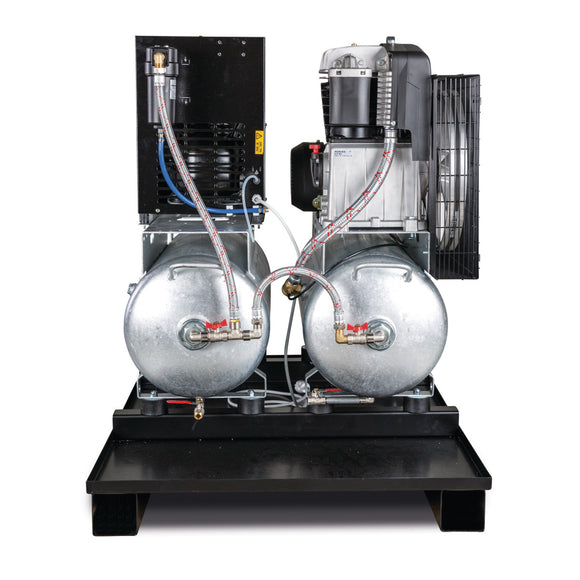

Stationary piston compressor AIRPROFI DUO 703 / 2x75 / 13K.
  • Two-stage high-performance 2-cylinder engine with gray cast iron cylinder block
  • Low speed for quiet, low-vibration operation and long life
  • Large fan for optimum performance Cooling
  • High-quality electric motors equipped with motor protection switch
  • With phase inverter for easy manual reversal of the direction of rotation
  • Intermediate and aftercooler reduce condensation
  • Maintenance block with two pressure gauges for tank pressure and working pressure and high-quality CONDOR pressure switch
  • Fully automatic on-off operation
  • Ready for connection with all fittings
  • Fifteen-year rust-proofing on inside and out external hot-dip galvanized compressed air tank


.
  • Air outlet 3/4 "
  • Compressed air outlet 1/2 inch air outlet on refrigeration dryer
  • Compressor speed 850 min¯¹
  • Condensate drain 3/8" ball valve on each tank. automatic condensate drain in refrigeration dryer
  • Connector 400V CEE plug with phase inverter
  • Explanation Pressure vessel capacity 2 x 75 l
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound pressure level Lp Sound pressure level at 1 m distance according to DIN 45635 T 13
  • Filling capacity 460 l/min
  • Frequency 50 Hz
  • Height 1140 mm
  • Length 1200 mm
  • Maximum pressure 13 bar
  • Motor output power 4 kW
  • Motor power (input power) 4.8 kW
  • Net weight 230 kg
  • Number of compressor stages 2
  • Number of cylinders 2
  • Pressure vessel capacity 150 l
  • Sound pressure level 79 dB(A)
  • Suction capacity 575 l/min
  • Supply voltage 400 V
  • Width 900 mm
