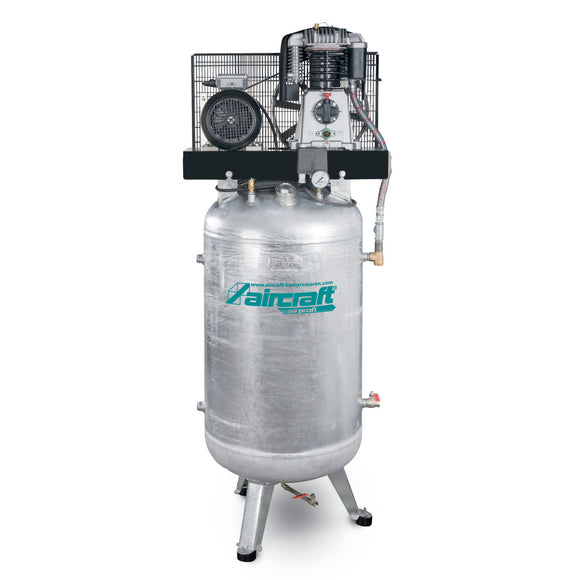

Stationary piston compressor (15 bar) AIRPROFI 703/270/15 v.
  • The two-stage compression 2-cylinder high-performance unit enables a very low speed, resulting in a particularly quiet and low-vibration run
  • Large fan ensures optimal cooling
  • Intercooler and aftercooler ensure a low container inlet temperature and thus reduce condensation
  • High quality electric motor with high torque
  • Electric motor equipped with motor protection switch
  • Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
  • Flexible armored hose line with heat protection prevents vibration breakage
  • High-quality CONDOR pressure switch as standard
  • From 7. with star-delta switch with operating hours counter
  • Ready for connection with all fittings
Additional equipment K-version:
  • Refrigerated dryer with integrated automatic steam trap for dry compressed air, longer service life of compressed air tools and avoidance of disturbances in pneumatic controls
  • Fine filter for separating condensate and solid impurities with particles up to 1 μ in front of the refrigeration dryer

Equipment

  • Automatic steam trap on the compressed air tank
  • No unnecessary pressure loss

  • Condensate conditioner for oil-water separation
  • Important notes on condensate treatment can also be found in the section on compressed air preparation.

  • Fine filter for separating condensate and solid impurities with particles up to 1 μm
  • Compressed air quality according to ISO -1
  • As a pre-filter in front of the refrigeration dryer

  • Refrigerated dryer with integrated automatic steam trap
  • Pressure dew point at 5 °C, ambient temperature 25 °C, atmospheric dew point at -22 °C


.
  • Air outlet 3/4 "
  • Compressor speed 850 min¯¹
  • Condensate drain 3/8" ball valve
  • Connector 400V CEE plug with phase inverter
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound pressure level Lp Sound pressure level at 1 m distance according to DIN 45635 T 13
  • Filling capacity 460 l/min
  • Frequency 50 Hz
  • Height 1870 mm
  • Length 780 mm
  • Maximum pressure 15 bar
  • Motor output power 4 kW
  • Motor power (input power) 4.8 kW
  • Net weight 152 kg
  • Number of compressor stages 2
  • Number of cylinders 2
  • Pressure vessel capacity 270 l
  • Sound pressure level 83 dB(A)
  • Suction capacity 575 l/min
  • Supply voltage 400 V
  • Width 680 mm
