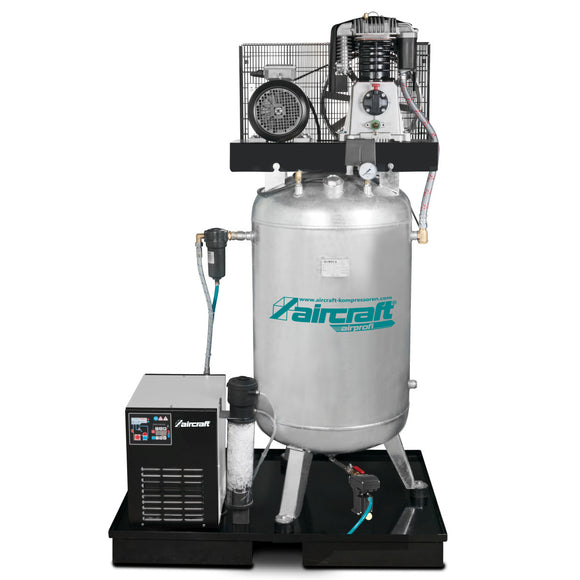

Stationary piston compressor (15 bar) AIRPROFI 703/270/15 VKK

• The two-stage compression 2-cylinder high-performance unit enables a very low speed, resulting in a particularly quiet and low-vibration run
• Large fan ensures optimal cooling
• Intercooler and aftercooler ensure a low container inlet temperature and thus reduce condensation
• High quality electric motor with high torque
• Electric motor equipped with motor protection switch
• Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
• Flexible armored hose line with heat protection prevents vibration breakage
• High-quality CONDOR pressure switch as standard
• From 7. with star-delta switch with operating hours counter
• Ready for connection with all fittings

• Refrigerated dryer with integrated automatic steam trap for dry compressed air, longer service life of compressed air tools and avoidance of disturbances in pneumatic controls
• Fine filter for separating condensate and solid impurities with particles up to 1 μ in front of the refrigeration dryer

Equipment

• Automatic steam trap on the compressed air tank
• No unnecessary pressure loss


• Condensate conditioner for oil-water separation
• Important notes on condensate treatment can also be found in the section on compressed air preparation.


• Fine filter for separating condensate and solid impurities with particles up to 1 μm
• Compressed air quality according to ISO -1
• As a pre-filter in front of the refrigeration dryer


• Refrigerated dryer with integrated automatic steam trap
• Pressure dew point at 5 °C, ambient temperature 25 °C, atmospheric dew point at -22 °C
