Stationary piston compressor (15 bar) AIRPROFI 703/270/15 H

€3.184,47 EUR

Tax includedShipping calculated at checkout

SKU: 2025752 Barcode: 9006248018204

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

Available on backorder ⓘ

Contact us about this product

Paying with a business card? Please contact our manager, who will assist you with your purchase | +353 (0) 9064 32000

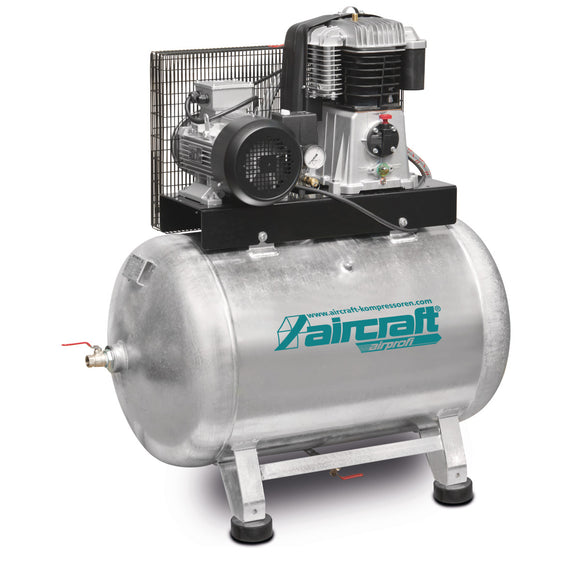

Stationary piston compressor (15 bar) AIRPROFI 703/270/15 H.
  • The two-stage compression 2-cylinder high-performance unit enables a very low speed, resulting in a particularly quiet and low-vibration run
  • The large fan ensures optimal cooling
  • Intercooler and aftercooler ensure a low container inlet temperature and thus reduce condensation
  • Quality electric motors equipped with motor protection switch
  • Flexible armored hose line with heat protection prevents vibration breakage
  • Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
  • With high-quality CONDOR pressure switch
  • Star-delta switch with operating hours counter for 7. 5 and 11 kW models
  • Ready for connection with all fittings


.
  • Air outlet 3/4 "
  • Compressor speed 850 min¯¹
  • Condensate drain 3/8" ball valve
  • Connector 400V CEE plug with phase inverter
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound pressure level Lp Sound pressure level at 1 m distance according to DIN 45635 T 13
  • Filling capacity 460 l/min
  • Frequency 50 Hz
  • Height 1250 mm
  • Length 1190 mm
  • Maximum pressure 15 bar
  • Motor output power 4 kW
  • Motor power (input power) 4.8 kW
  • Net weight 210 kg
  • Number of compressor stages 2
  • Number of cylinders 2
  • Pressure vessel capacity 270 l
  • Sound pressure level 83 dB(A)
  • Suction capacity 575 l/min
  • Supply voltage 400 V
  • Width 600 mm
