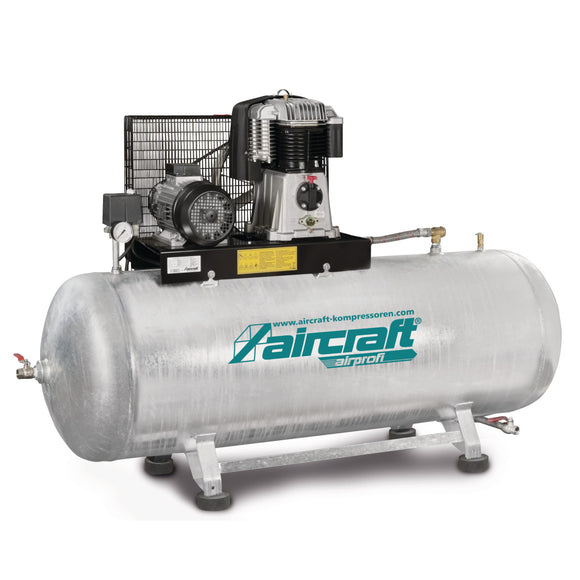

Stationary piston compressor (10 bar) AIRPROFI 853/500/10 H

• The two-stage compression 2-cylinder high-performance unit enables a very low speed, resulting in a particularly quiet and low-vibration run
• The large fan ensures optimal cooling
• Intercooler and aftercooler ensure a low container inlet temperature and thus reduce condensation
• High quality electric motor with high torque
• Electric motor equipped with motor protection switch
• Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
• 200, 270 and 500 liter containers according to AD
• With high-quality CONDOR pressure switch
• Flexible armored hose line with heat protection prevents vibration breakage
• Star-delta switch with operating hours counter from 7. 5 kW models
• High quality finned intake filter from Airprofi /500/10 H
• Ready for connection with all fittings

• Particularly space-saving with 100 l containers

Recommended accessories:

• For oil-water separation
• Important notes on condensate treatment in the section on compressed air preparation

• For separating condensate and solid impurities with particles up to 1 μm
• Compressed air quality according to ISO -1
• As a pre-filter in front of the refrigeration dryer

• At the compressed air tank
• No unnecessary pressure loss during condensate drainage

• With integrated automatic steam trap
• Pressure dew point at 5 °C, ambient temperature 25 °C, atmospheric dew point at -22 °C
