Stationary piston compressor (15 bar) AIRPROFI 753/270/15 H

€4.070,07 EUR (€3.309,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2025852 Barcode: 9006248018211

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

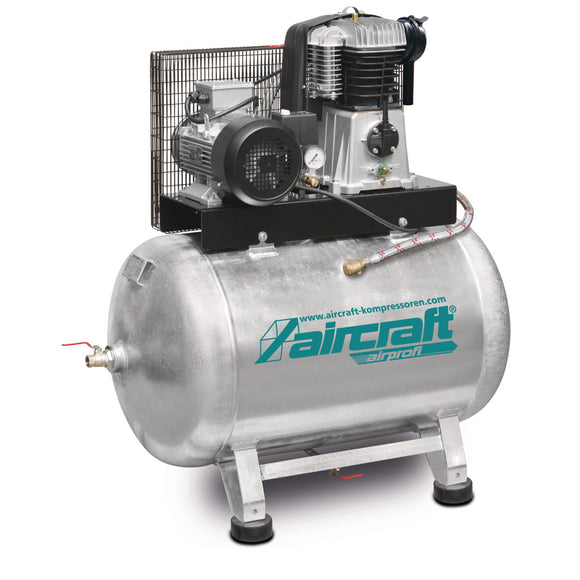

Stationary piston compressor (15 bar) AIRPROFI 753/270/15 H.
  • The two-stage compression 2-cylinder high-performance unit enables a very low speed, resulting in a particularly quiet and low-vibration run
  • The large fan ensures optimal cooling
  • Intercooler and aftercooler ensure a low container inlet temperature and thus reduce condensation
  • Quality electric motors equipped with motor protection switch
  • Flexible armored hose line with heat protection prevents vibration breakage
  • Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
  • With high-quality CONDOR pressure switch
  • Star-delta switch with operating hours counter for 7. 5 and 11 kW models
  • Ready for connection with all fittings


.
  • Air outlet 3/4 "
  • Compressor speed 785 min¯¹
  • Condensate drain 3/8" ball valve
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound pressure level Lp Sound pressure level at 1 m distance according to DIN 45635 T 13
  • Filling capacity 525 l/min
  • Frequency 50 Hz
  • Height 1320 mm
  • Length 1190 mm
  • Maximum pressure 15 bar
  • Motor output power 5.5 kW
  • Motor power (input power) 6.5 kW
  • Net weight 215 kg
  • Number of compressor stages 2
  • Number of cylinders 2
  • Pressure vessel capacity 270 l
  • Sound pressure level 82 dB(A)
  • Suction capacity 750 l/min
  • Supply voltage 400 V
  • Width 600 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
