Stationary vertical piston compressor for belt-driven craftsmen AIRSTAR 853/270/10V

€2.643,27 EUR (€2.149,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2028760 Barcode: 4036351300885

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out

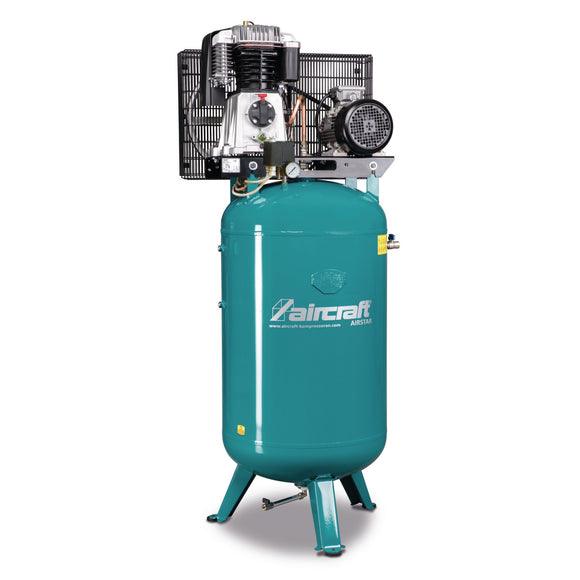

Stationary vertical piston compressor for belt-driven craftsmen AIRSTAR 853/270/10V.
  • The two-stage compression 2-cylinder high-performance unit achieves a very low rotational speed, resulting in a particularly quiet and low-vibration run
  • This ensures a longer life due to less wear
  • Large fan wheel and a cooling air baffle on the cylinder for optimum cooling of the compressor
  • Aftercooler with cooling fins and intercooler to the aftercooler ensure a low container inlet temperature and thus less moisture in the compressed air
  • High quality electric motor with high torque
  • Electric motor equipped with motor protection switch
  • With high-quality CONDOR pressure switch
  • Equipped with a pressure gauge for tank pressure and a ball valve on the compressed air tank
  • Compressed air tank equipped with safety valve, container pressure gauge and condensate drain tap
  • Ten-year rust-through warranty on powder-coated compressed air tank
  • With all safety devices
  • Fully wired
  • Stable belt guard made of metal
  • Including swinging elements
  • Connection to grid by qualified electrician


.
  • Air outlet 3/4 "
  • Compressor speed 1250 min¯¹
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound power level Lw Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
  • Explanation sound pressure level Lp Sound pressure level at 4 m distance
  • Filling capacity 720 l/min
  • Frequency 50 Hz
  • Height 1770 mm
  • Length 720 mm
  • Maximum pressure 10 bar
  • Motor output power 5.5 kW
  • Motor power (input power) 6.5 kW
  • Net weight 146 kg
  • Number of compressor stages 2
  • Number of cylinders 2
  • Pressure vessel capacity 270 l
  • Sound power level 95 dB(A)
  • Sound pressure level 79 dB(A)
  • Suction capacity 860 l/min
  • Supply voltage 400 V
  • Width 720 mm
