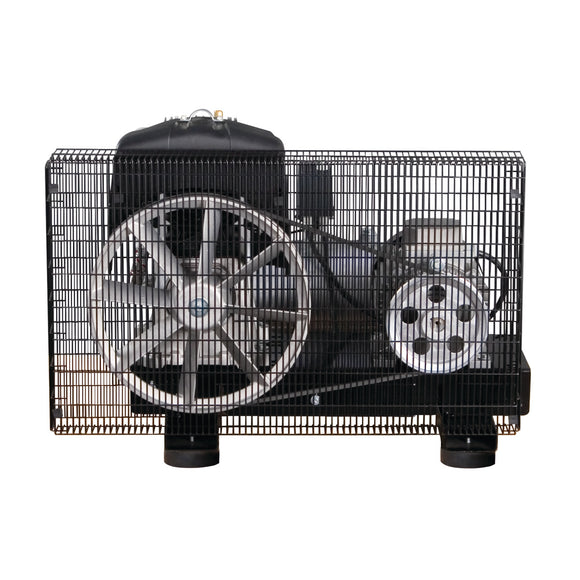

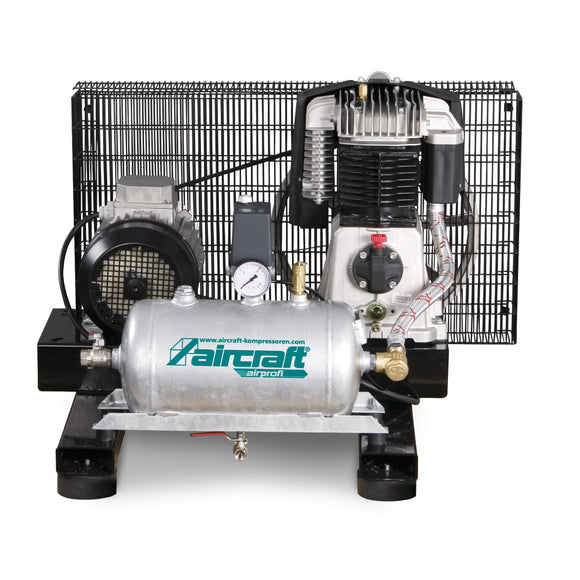

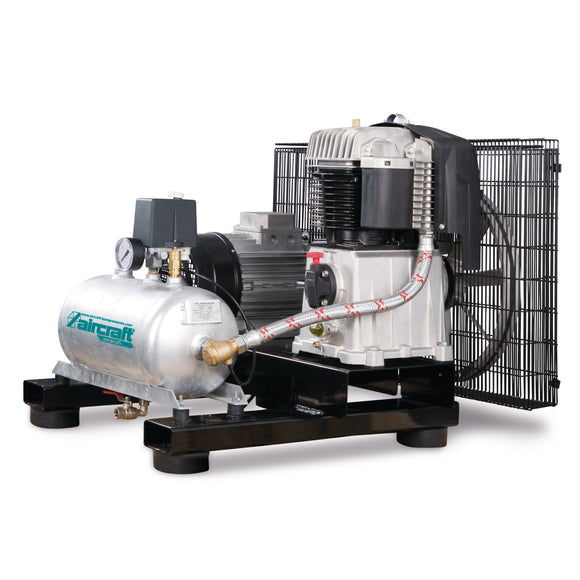

Stationary auxiliary piston compressor (15 bar) AIRPROFI 703/13/15

€2.065,17 EUR (€1.679,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2029751 Barcode: 9006248010703

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Stationary auxiliary piston compressor (15 bar) AIRPROFI 703/13/15.
The reason for this is that, according to experience, 90% of all users have an operating pressure of max. 13 bar
  • Any additional pressure generated means an energy consumption of about 8% per bar.
  • If you still need the maximum pressure of 15 bar, you can easily do it yourself at any time at the pressure switch.


    • .
    • Air outlet 3/4 "
    • Compressor speed 850 min¯¹
    • Condensate drain 3/8" ball valve
    • Connector 400V CEE plug with phase inverter
    • Explanation filling capacity at 6 bar working pressure
    • Explanation sound pressure level Lp Sound pressure level at 1 m distance according to DIN 45635 T 13
    • Filling capacity 460 l/min
    • Frequency 50 Hz
    • Height 675 mm
    • Length 685 mm
    • Maximum pressure 15 bar
    • Motor output power 4 kW
    • Motor power (input power) 4.8 kW
    • Net weight 55 kg
    • Number of compressor stages 2
    • Number of cylinders 2
    • Pressure vessel capacity 13 l
    • Sound pressure level 83 dB(A)
    • Suction capacity 575 l/min
    • Supply voltage 400 V
    • Width 745 mm

    Add content using the options to the left

    Shipping to Ireland & UK.

    To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

    Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

    €10 is via DPD and the €60 is via pallet express.

    Free shipping on all online orders over €100.00

    You can also pick up an item for free from our Longford store.

    All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

    We expect delivery to be within 2 to 5 working days thereafter.

    Standard Delivery will be by Courier service for orders up to 30kg in weight.

    Oscillating element DM70 x 70 mm one. M10 x 20 Oscillating element DM70 x 70 mm one. M10 x 20 - 0

    Oscillating element DM70 x 70 mm one. M10 x 20

    Aircraft

    €17,10 EUR
    Enquire

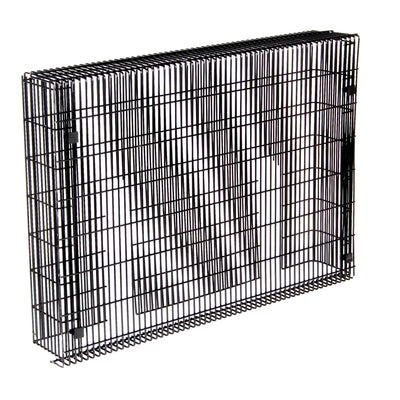

    Belt Guard 470 x 730 mm for 100 l containers from year 09/2009 Belt Guard 470 x 730 mm for 100 l containers from year 09/2009 - 0

    Belt Guard 470 x 730 mm for 100 l containers from year 09/2009

    Aircraft

    €100,17 EUR
    Enquire

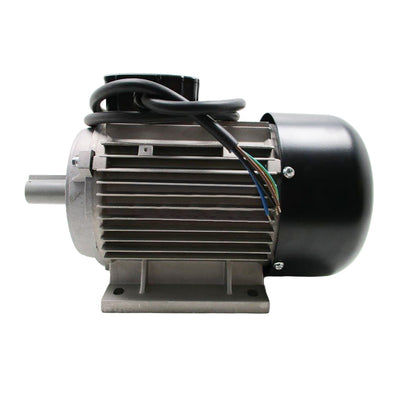

    Electric motor 4,0 kW / 400 V Electric motor 4,0 kW / 400 V - 0

    Electric motor 4,0 kW / 400 V

    Aircraft

    €505,95 EUR
    Enquire

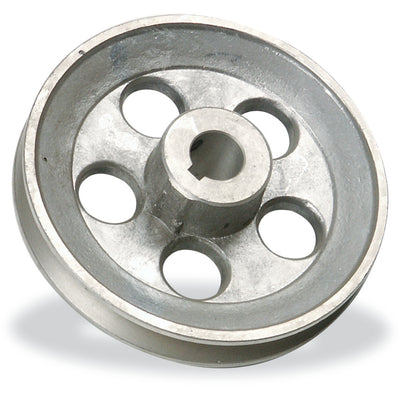

    V-belt pulley SPZ 110 x 28 V-belt pulley SPZ 110 x 28 - 0

    V-belt pulley SPZ 110 x 28

    Aircraft

    €33,83 EUR
    Enquire

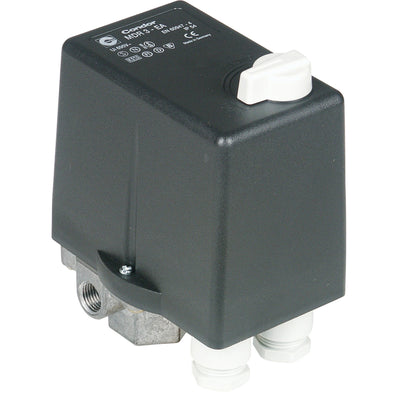

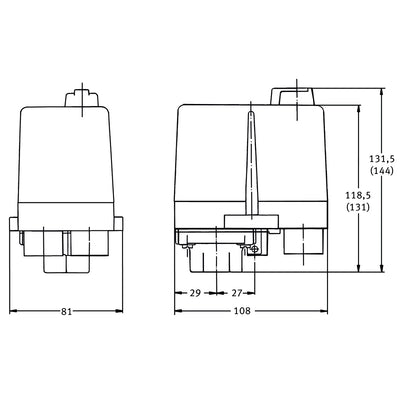

    Pressure switch CONDOR MDR 3 / 10-16 A / 16 bar Pressure switch CONDOR MDR 3 / 10-16 A / 16 bar - 0
