Stationary Side Piston Compressor AIRPROFI BK 1003/13/10

€3.061,47 EUR (€2.489,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2029911 Barcode: 9006248010727

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

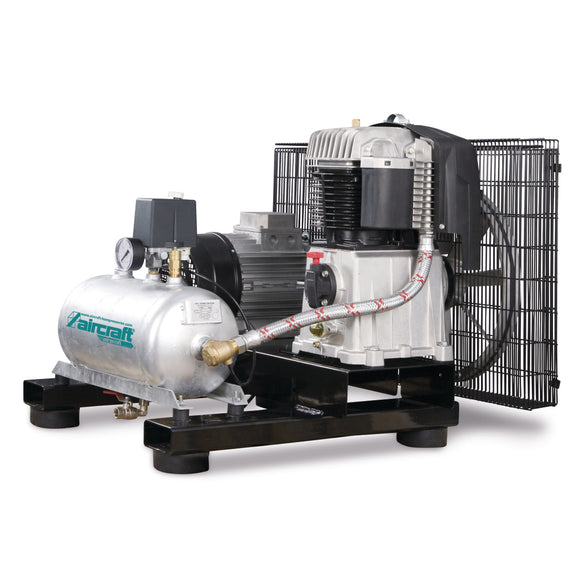

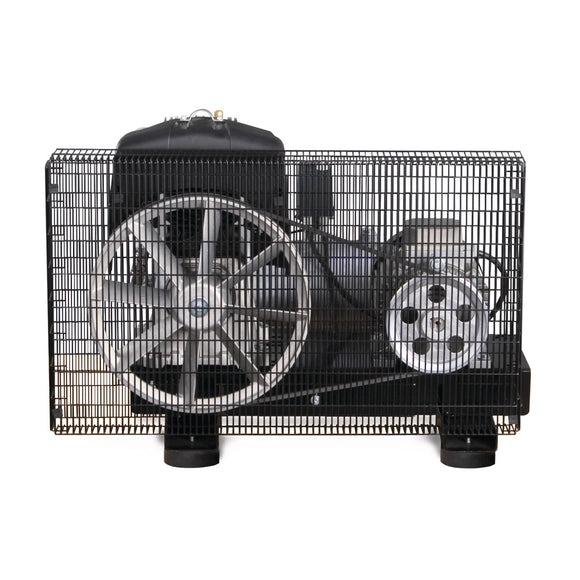

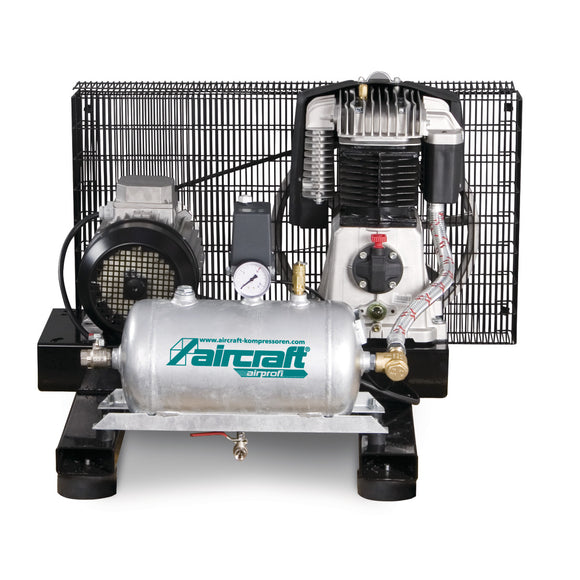

Stationary Side Piston Compressor AIRPROFI BK /13/10.
  • The two-stage compression 2-cylinder high-performance unit enables a very low speed, resulting in a particularly quiet and low-vibration run.
  • The large fan ensures optimal cooling.
  • Intercooler and aftercooler ensure a low container inlet temperature and thus reduce condensation.
  • Quality electric motors equipped with motor protection switch
  • Ready for connection with all fittings such as pressure switch for fully automatic on-off operation, safety and check valve, condensate and air release valve for autonomous operation
  • Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
  • With high-quality CONDOR pressure switch
  • Ready for connection with all fittings

Room amenities

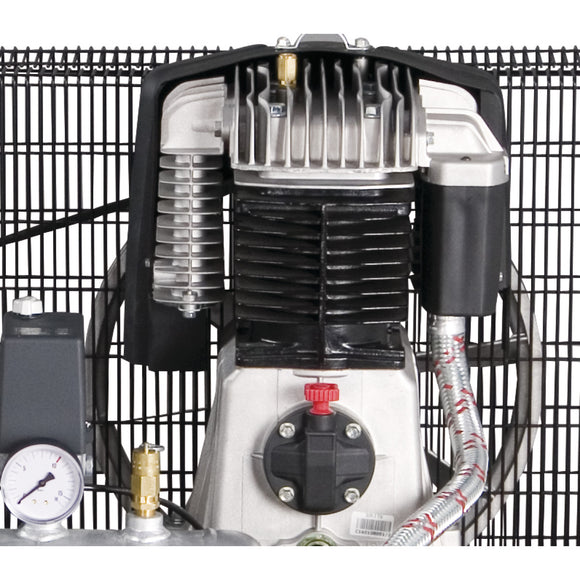

  • High-performance gray cast iron unit with low speed
  • Aftercooler with large cooling fins ensures low tank inlet temperature
  • The flexible armored hose line with heat protection prevents a vibration break.


Side compressors are used
  • if the existing air volume is too small.
  • when peak loads have to be covered.
  • if 100% safety must be warrantyd.
  • if old equipment would require expensive repairs.

Recommended accessories

  • AIRCRAFT tank batteries as 2 or 4 batteries for up to 400 liters additional air reserve


.
  • Air outlet 3/4 "
  • Compressor speed 1060 min¯¹
  • Condensate drain 3/8" ball valve
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling capacity 750 l/min
  • Frequency 50 Hz
  • Height 745 mm
  • Length 685 mm
  • Maximum pressure 10 bar
  • Motor output power 5.5 kW
  • Motor power (input power) 6.5 kW
  • Net weight 80 kg
  • Number of compressor stages 2
  • Number of cylinders 2
  • Pressure vessel capacity 13 l
  • Sound pressure level 83 dB(A)
  • Suction capacity 960 l/min
  • Supply voltage 400 V
  • Width 790 mm
