Oil-water separator ÖWAMAT® 11-1
Oil-water separator ÖWAMAT® 11-2

Oil-water separator ÖWAMAT® 11

€891,75 EUR (€725,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2048011 Barcode: 9006248013957

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

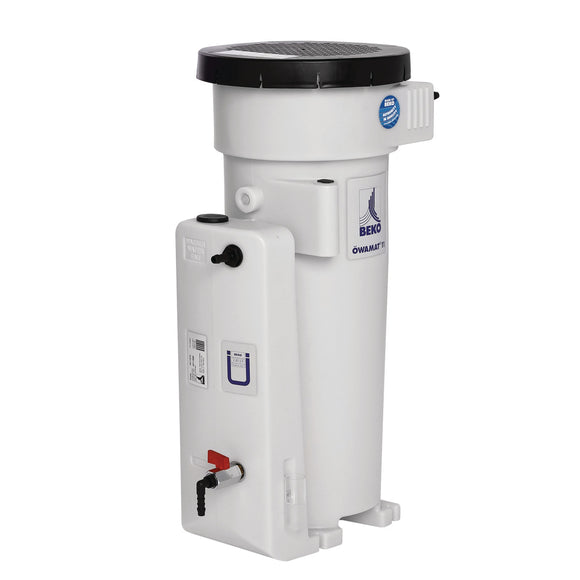

Oil-water separator ÖWAMAT® 11.
    function Description
    • For treatment, the oil-containing condensate first passes under pressure into the pressure relief chamber.
    • There, the overpressure is reduced, without causing turbulence in the subsequent separation tank for free oil separation.
    • Carried coarse dirt particles are retained in a removable catch.
    • In the separation tank, the oil settles on the surface through gravity separation and is led into the overflow-proof oil catch tank (version available on request).
    • The filter makes the difference: The pre-cleaned condensate flows through the oleophilic pre-filter, which has a large active filter area. Flowing through from the inside to the outside, it binds the remaining oil droplets and also absorbs residual, floating oil in the filter chamber.
    • In the OEKOSORB® main filter with cartridge technology, the last oil components are reliably retained. What remains is water for direct discharge into the sewage system.

    The advantages at a glance
    • System-compatible size
    • Installation on wall possible with ÖWAMAT® 10 and ÖWAMAT® 11
    • Long service life of the filter units
    • Easy retrofitting of a heater at any time
    • Easiest handling by cartridge technology
    • Type approval with and without free oil separation
    • No energy costs


    .
  • 3.2 m³/min
  • 3.5 m³/min
  • 3.8 m³/min
  • 4.9 m³/min
  • Connection condensate feed 2 x G 1/2 "
  • Connection water drain G 1/2 "
  • Height 755 mm
  • Length 390 mm
  • Maximum compressor output piston compressor VDL oil 2.9 m³/min
  • Maximum compressor output piston compressor synthetic oil Ester 2.8 m³/min
  • Maximum compressor output piston compressor synthetic oil PAO 2.4 m³/min
  • Width 445 mm
