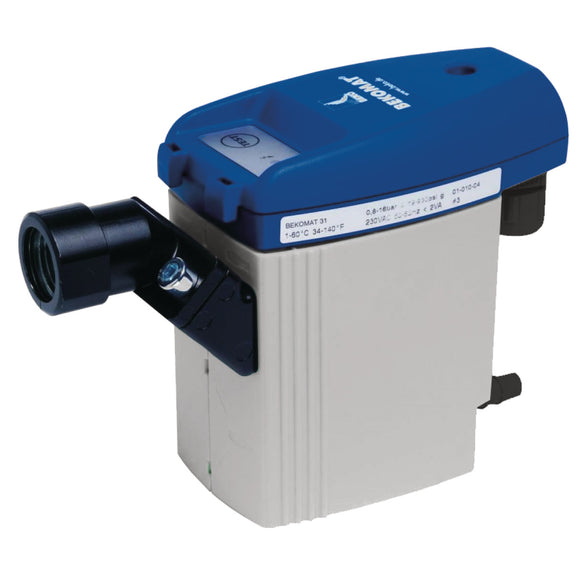

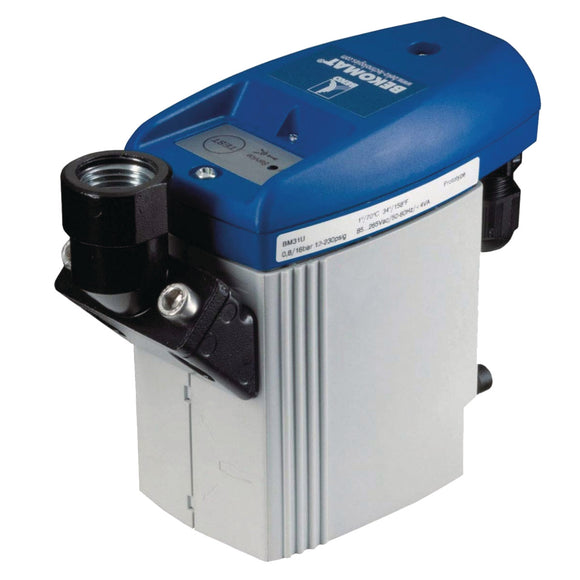

Condensate drain (electronic) BEKOMAT 31

€269,37 EUR (€219,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2049049 Barcode: 9006248013964

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Condensate drain (electronic) BEKOMAT 31.
    When producing and conditioning compressed air, condensate inevitably accumulates, oily and frequently polluted with dirt particles. Since condensate accumulates irregularly depending on the year and time of day or load of the compressor, the BEKOMAT® with its capacitive sensor often pays for itself over time-controlled drain valves within half a year.
    Features and Benefits:
    • Usable and resistant to oily and oil-free, aggressive condensates
    • Easy connection to filter or boiler by adapting the inlet nozzle with horizontal or vertical condensate inlet
    • With discharge with BEKOMAT® improved function with oil / water separators
    • BEKOMAT® 32 with alarm function and switchable fault message

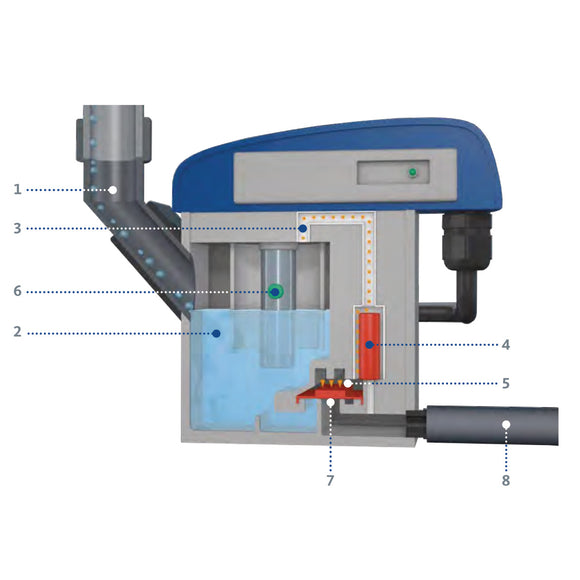

    function Description
    • Condensate collects in the collection container of the arrester.
    • A capacitive sensor detects the level of the condensate. At maximum level, a diaphragm opens, through which the condensate is discharged through the system pressure.
    • The membrane is closed before compressed air can escape

    The advantages at a glance
    • No unnecessary compressed air losses
    • Derivation according to the amount of seizure
    • Sensor detects every type of condensate
    • Insensitive to dirt
    • simple electrical installation (230 V)
    • Low maintenance

    Including service unit
    • Economical: Complete replacement of all wearing parts and pressure-bearing parts with just one handle.
    • 5,5 l/h
    • Compressor output 2,5 m³/min
    • Condensate outlet 1 x G¼; hose connector, hose Ø = 10 mm (inside)
    • Dryer performance 5 m³/min
    • Explanation drain off quantity max. at 4 - 7 bar
    • Filter performance 25 m³/min
    • Height 118 mm
    • IP degree of protection IP67
    • Length 164 mm
    • Net weight 0.8 kg
    • Operating pressure 0.8 – 16 bar
    • Operating temperature 1 - 60 °C
    • Supply voltage 230 V
    • Width 65 mm

    Add content using the options to the left

    Shipping to Ireland & UK.

    To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

    Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

    €10 is via DPD and the €60 is via pallet express.

    Free shipping on all online orders over €100.00

    You can also pick up an item for free from our Longford store.

    All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

    We expect delivery to be within 2 to 5 working days thereafter.

    Standard Delivery will be by Courier service for orders up to 30kg in weight.

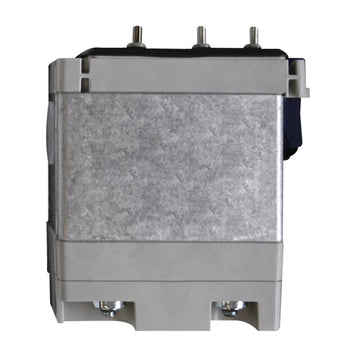

    Service Unit Service unit Bekomat 31 Service Unit Service unit Bekomat 31 - 0
