Condensate drain (electronic) BEKOMAT 32-1
Condensate drain (electronic) BEKOMAT 32-2
Condensate drain (electronic) BEKOMAT 32-3
Condensate drain (electronic) BEKOMAT 32-4
Condensate drain (electronic) BEKOMAT 32-5

Condensate drain (electronic) BEKOMAT 32

€334,44 EUR (€271,90 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2049053 Barcode: 4036351103011

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

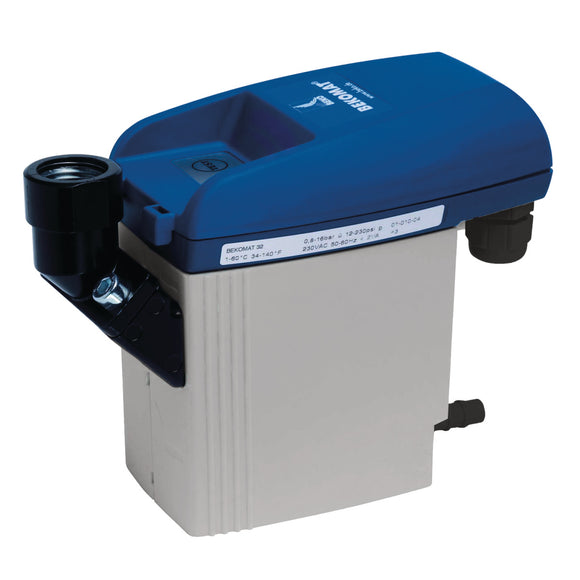

Condensate drain (electronic) BEKOMAT 32.
    When producing and conditioning compressed air, condensate inevitably accumulates, oily and frequently polluted with dirt particles. Since condensate accumulates irregularly depending on the year and time of day or load of the compressor, the BEKOMAT® with its capacitive sensor often pays for itself over time-controlled drain valves within half a year.
    Features and Benefits:
    • Usable and resistant to oily and oil-free, aggressive condensates
    • Easy connection to filter or boiler by adapting the inlet nozzle with horizontal or vertical condensate inlet
    • With discharge with BEKOMAT® improved function with oil / water separators
    • BEKOMAT® 32 with alarm function and switchable fault message

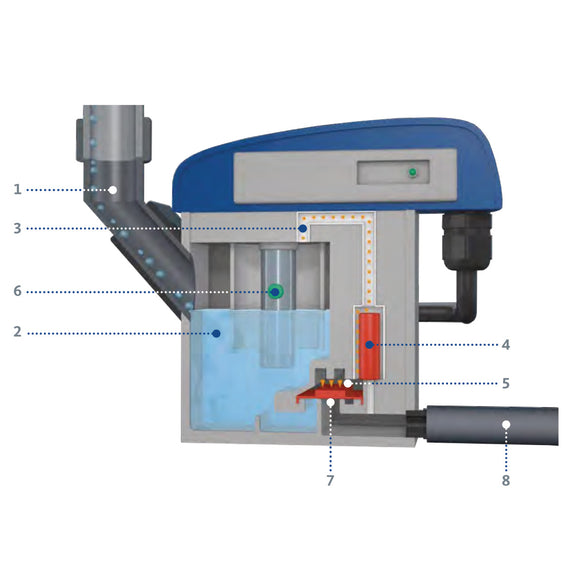

    function Description
    • Condensate collects in the collection container of the arrester.
    • A capacitive sensor detects the level of the condensate. At maximum level, a diaphragm opens, through which the condensate is discharged through the system pressure.
    • The membrane is closed before compressed air can escape

    The advantages at a glance
    • No unnecessary compressed air losses
    • Derivation according to the amount of seizure
    • Sensor detects every type of condensate
    • Insensitive to dirt
    • simple electrical installation (230 V)
    • Low maintenance

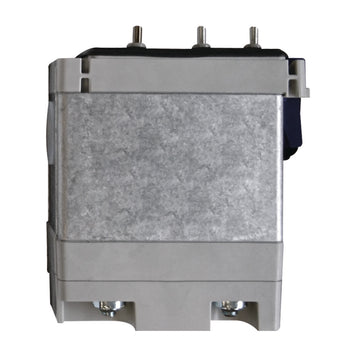

    Including service unit

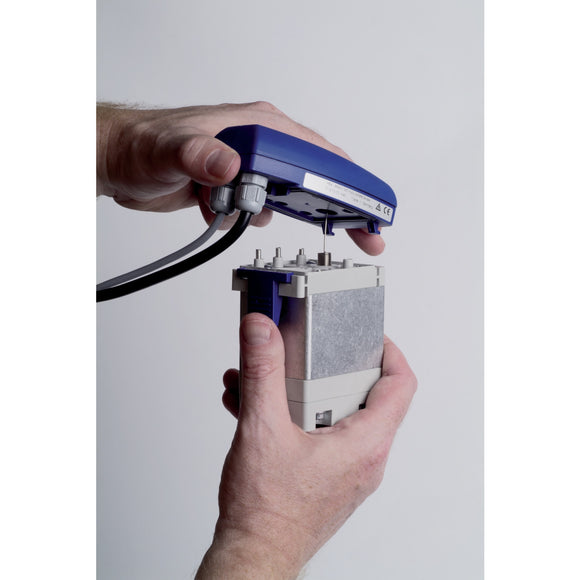

    • Economical: Complete replacement of all wearing parts and pressure-bearing parts with just one handle.
    • 10 l/h
    • Compressor output 5 m³/min
    • Condensate outlet 1 x G¼; hose connector, hose Ø = 10 mm (inside)
    • Dryer performance 10 m³/min
    • Explanation drain off quantity max. at 4 - 7 bar
    • Filter performance 50 m³/min

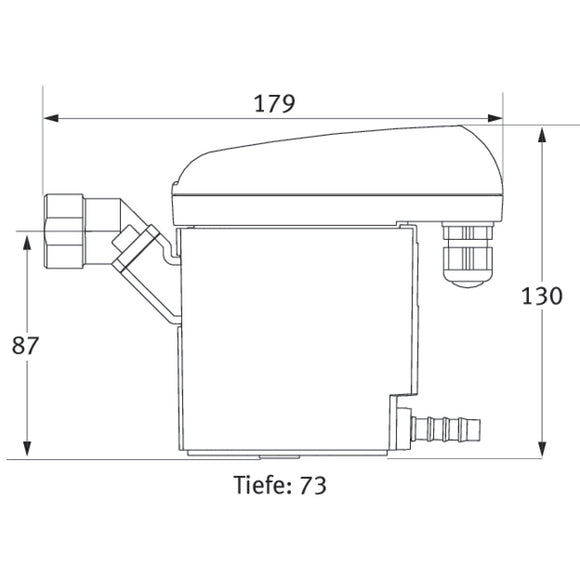

    • Height 130 mm
    • IP degree of protection IP67
    • Length 179 mm
    • Net weight 1,0 kg
    • Operating pressure 0.8 – 16 bar
    • Operating temperature 1 - 60 °C
    • Supply voltage 230 V
    • Width 73 mm
