Cyclone separator ACKL 0235B-1
Cyclone separator ACKL 0235B-2
Cyclone separator ACKL 0235B-3
Cyclone separator ACKL 0235B-4

Cyclone separator ACKL 0235B

€227,43 EUR (€184,90 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2053014 Barcode: 9006248015968

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

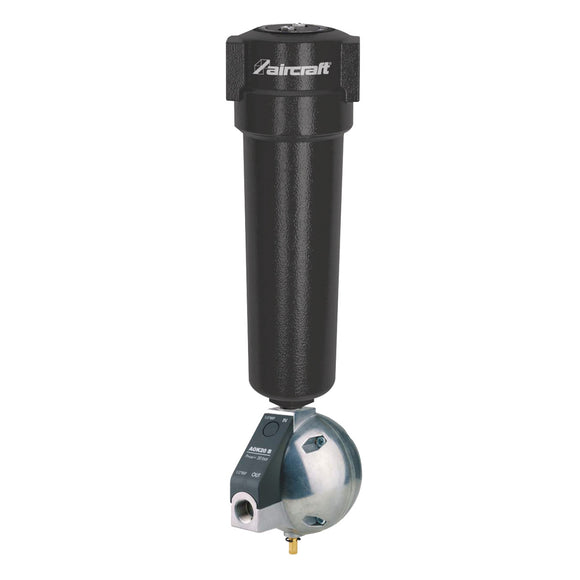

Cyclone separator ACKL 0235B.
  • For highly efficient separation of large quantities of condensate from compressed air and vacuum systems
    • Installation between compressor and compressed air tank
  • Filter housing made of aluminum and anodized inside
  • Separation of condensate (water, oil) and dirt particles by centrifugal acceleration of the compressed air
  • The condensate drain with float valve is used to separate the condensate from the water separator
  • Electronic condensate drain can be retrofitted


.
  • Air connection 3/4 "
  • Height 337 mm
  • Max. operating pressure 16 bar
  • Max. operating temperature 65 °C
  • Min. operating temperature 1.5 °C
  • Volume flow l/min 3877 l/min
  • Volume flow measured at operating pressure 7 bar
  • Volume flow m³/h 235 test
  • Width 88 mm
  • Steam trap AOK 20 B

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

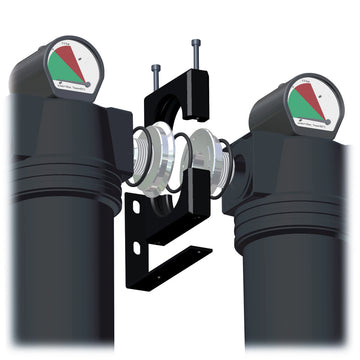

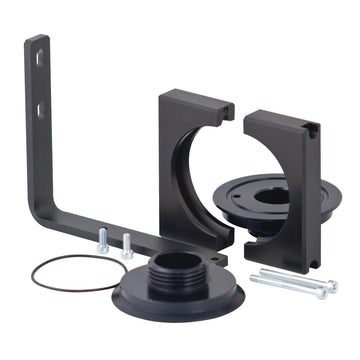

Connection set AK 3/4 " Connection set AK 3/4 " - 0
