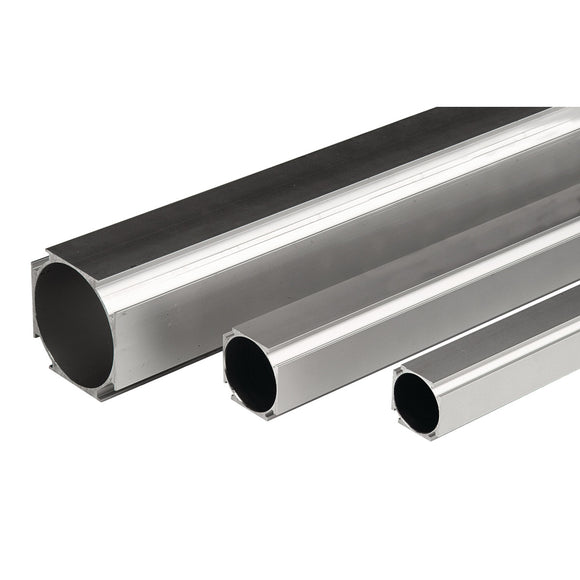

Aluminium pipe Aluminum pipe Ø 80 mm, rod 6 m-1
Aluminium pipe Aluminum pipe Ø 80 mm, rod 6 m-2

Aluminium pipe Aluminum pipe Ø 80 mm, rod 6 m

€61,25 EUR (€49,80 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2154180 Barcode: 4036351110224

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

Sold Out
WhatsApp
Description Features Delivery contents Shipping
Aluminium pipe Aluminum pipe Ø 80 mm, rod 6 m.
  • The aluminum pipe combines all the advantages of conventional materials such as steel, plastic or copper, but avoids their disadvantages.
  • Thanks to the consistent new development, 50% of the time can be saved during assembly compared to the previously used system.
  • The aim of the development was to save at least half of the screw connections in the individual components. Only the outer profile shape was retained.


Patented clamping technology
  • Drilling under pressure possible
  • Low noise due to sound absorption
  • Compatible with all systems used worldwide
  • All four sides can be used
  • Quick and safe attachment of connections
  • Easier, faster and cheaper to install
  • Air extraction at any desired point
  • Various fixing hooks available for wall or ceiling mounting
  • Subsequent modifications possible at any time.
  • Absolute tightness and reliability

Tools required for installation:
  • Allen key
  • Deburring knife
  • Countersink
  • Saw (hand saw or electric cross-cut saw)
  • Grease (Klüber Microlube GL 261 recommended)
  • Drill or cordless screwdriver
  • Drilling jig (if drilling is to be carried out under pressure under operating conditions)


Your advantages
Flexibility
  • Air can be tapped at any desired point, even under pressure. Changes can therefore be made quickly and easily.

System
  • When it comes to compressed air systems, complete solutions from a single source are your guarantee of safety.

Installation
  • Handling is uncomplicated. Only an Allen key is required for installation.

Performance
  • Complete system - everything is coordinated from A to Z in various sizes.

Result
  • Maximum compressed air quality, high flexibility and time savings thanks to ease of installation make the system a system for the future.


ALS aluminum profile compressed air piping system
  • For craft businesses or smaller industrial companies with an air consumption of up to max. l/min
  • The ideal complement to the simplyAir system for branch and outgoing lines. Here, too, you benefit from the decisive advantages of our intelligent aluminum piping system
  • Extremely simple and quick installation
  • Aluminum is lightweight, corrosion-resistant and particularly streamlined
  • Air can be extracted at any desired point without interrupting the operating process
  • Complete system in various sizes, everything perfectly coordinated from A to Z
  • Fast modular installation
  • Laying the duct by simply inserting the pipes
  • Quick assembly and disassembly without special tools
  • Large selection of connection and accessory parts enables optimum adaptation of the pipe network to the existing workshop
  • Pipes and connections in various dimensions, complete with plates, angles or as a T-connection, form the basis


.
  • Brinnel hardness 70.4 HB
  • Elastic module 6700 K/mm²
  • Electrical conductivity 53 % IACS
  • Elongation A 50% 6 %
  • Elongation break load 160 N/mm²
  • Heat conductivity 200 W/m, K
  • Heat treatment Remuneration T66
  • Inner diameter of the pipe 80 mm
  • Length 6
  • Linear expansion coefficient 0.024 mm/m.°C
  • Material ENAW 6060
  • Max. operating pressure 15 bar
  • Max. operating temperature 120 °C
  • Melting point 600 – 650 °C
  • Min. operating pressure 10 bar
  • Min. operating temperature -40 °C
  • Other designations DIN: ALMgSi 0.5 / F22 / ENAW
  • Screw material Steel of class 8.8
  • Specific heat 96 J/Kg.K
  • Tensile fracture load 215 N/mm²
  • Test pressure 24 kg/cm²
  • Weight per metre 2.6 kg

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Reduction plate complete ALS, 80 - 22 mm Reduction plate complete ALS, 80 - 22 mm - 0

Reduction plate complete ALS, 80 - 22 mm

Aircraft

€45,76 EUR
Enquire

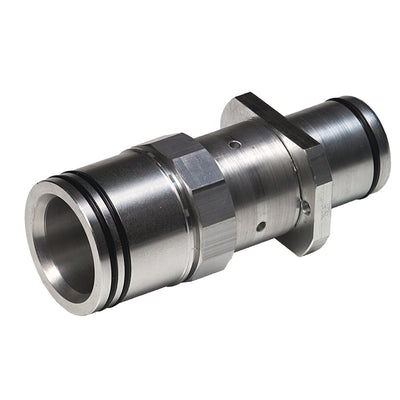

Reducing connector 80 - 60 mm Reducing connector 80 - 60 mm - 0

Reducing connector 80 - 60 mm

Aircraft

€162,36 EUR
Enquire

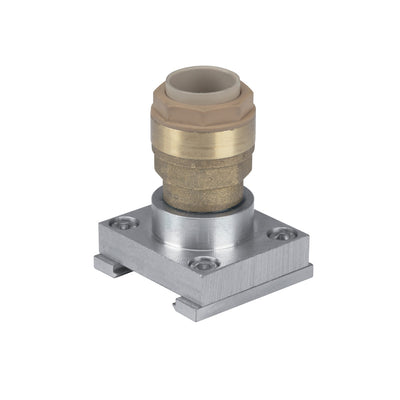

Reduction plate complete ALS, 80 - 28 mm Reduction plate complete ALS, 80 - 28 mm - 0

Reduction plate complete ALS, 80 - 28 mm

Aircraft

€47,97 EUR
Enquire

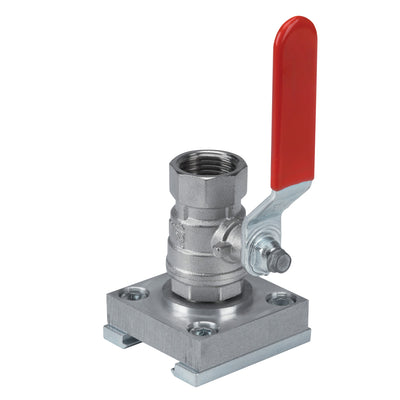

Output plate with ball valve ½" 80 mm Output plate with ball valve ½" 80 mm - 0

Output plate with ball valve ½" 80 mm

Aircraft

€43,54 EUR
Enquire

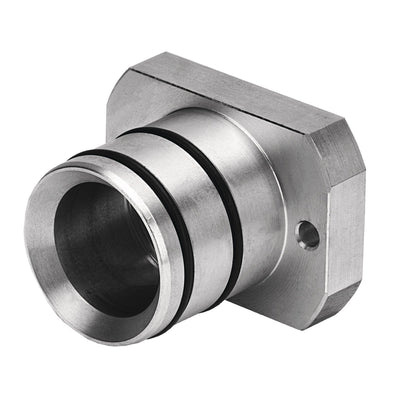

End piece with internal thread 80 mm IG ½ '' End piece with internal thread 80 mm IG ½ '' - 0
