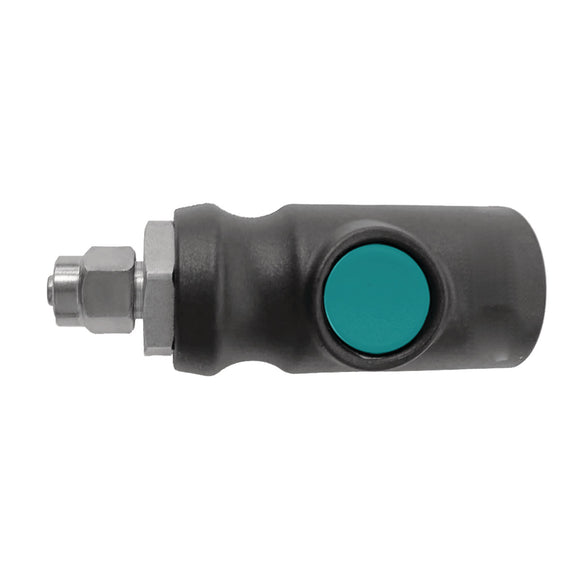

One-hand safety quick coupling with lock nut for 5mm spiral hose-1
One-hand safety quick coupling with lock nut for 5mm spiral hose-2

One-hand safety quick coupling with lock nut for 5mm spiral hose

€15,38 EUR (€12,50 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2203639 Barcode: 4036351356509

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
One-hand safety quick coupling with lock nut for 5mm spiral hose.
Work safety
  • Parts and dirt particles are not flung away
  • No whipping of the hose line as with a conventional quick disconnect coupling
  • The system meets the requirements of ISO and is BIA-compliant. Increased safety standard at the workplace as standard!
  • Very high flow rate
  • Absolute tightness of the couplings and threads
Economic benefits and stability
  • Long coupling service life thanks to high-quality workmanship and reduced mechanical stress
  • Low energy costs due to the long-lasting tightness of the coupling
  • Plug nipple is not subjected to mechanical stress, so brass nipples also last longer
  • Resistant to abrasion, impact loads, crushing, vibrations and corrosion
  • Lightweight, antistatic and scratch-resistant material
Comfortable
  • Safety couplings - incomparably easy to operate
  • The pressure is released at the push of a button and compressed air systems and tools are safely disconnected at the push of another button
  • Pressureless coupling
  • Ergonomic, compact shape for intuitive and natural handling
  • The position of the control knob can be variably adjusted thanks to the rotatable housing
  • Reduced dimensions for low space consumption, easy installation


.
  • Burst pressure 124 bar
  • Connection dimensions 5 x 8 mm
  • Explanation Bursting pressure for approx. 1 minute
  • Height 32 mm
  • Length 88 mm
  • Maximum pressure 20 bar
  • Net weight 0,151 kg
  • Operating pressure 15 bar
  • Temperature -20 – 80 °C
  • Throughput at 6 bar 850 l/min
  • Width 32 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

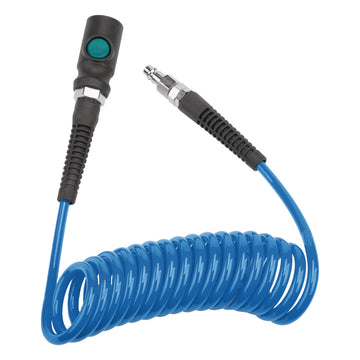

Spiral hose PU 5x8 mm 3m with one-hand safety coupling Spiral hose PU 5x8 mm 3m with one-hand safety coupling - 0
