Combi maintenance unit 1/4" 12 bar-1
Combi maintenance unit 1/4" 12 bar-2
Combi maintenance unit 1/4" 12 bar-3

Combi maintenance unit 1/4" 12 bar

€122,88 EUR (€99,90 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2317400 Barcode: 4036351321521

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

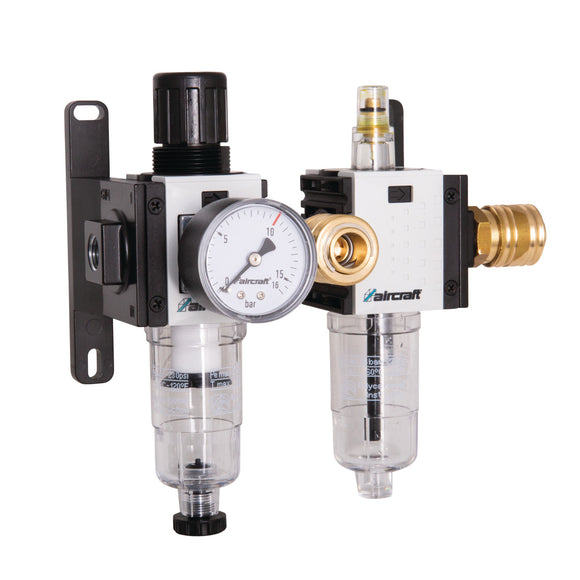

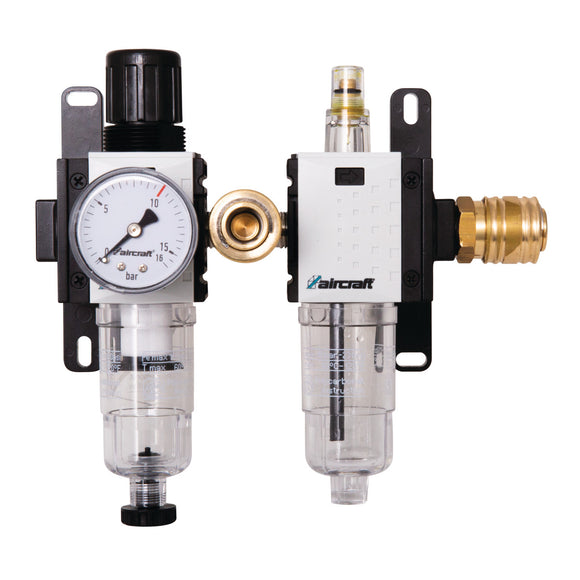

Combi maintenance unit 1/4" 12 bar.
  • Sintered filter with centrifugal principle, diaphragm pressure regulator with secondary venting and micro-mist lubricator
  • For compressed air and neutral gases
  • Filter pressure regulator with semi-automatic condensate drain
  • Mist lubricator for oil grade CL 32 to DIN -ISO VG 32 - oil refill not possible under pressure
  • Inlet pressure 1, 5 - 12 bar
  • Suitable for temperatures from -10 to +50°C
  • For vertical installation


.
  • Adjustment range 0.5 – 10 bar
  • Condensate vessel volume 16 cm³
  • Connecting thread 1/4 "
  • Connection pressure gauge 1/8 "
  • Filter fineness 5 μm
  • Max. inlet pressure 12 bar
  • Max. operating pressure 12 bar
  • Min. inlet pressure 1,5 bar
  • Oil vessel volume 35 cm³
  • Operating temperature max. +50 °C
  • Operating temperature min. -10 °C
