Bench drill OPTIdrill DX 17V

€2.761,35 EUR (€2.245,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3020170 Barcode: 4030635035982

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out

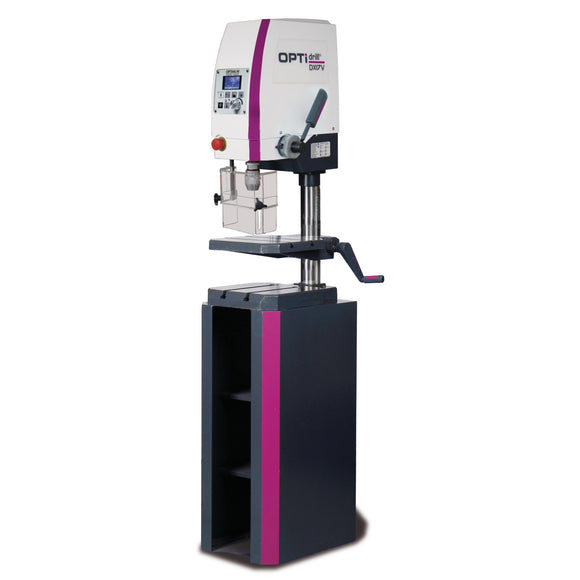

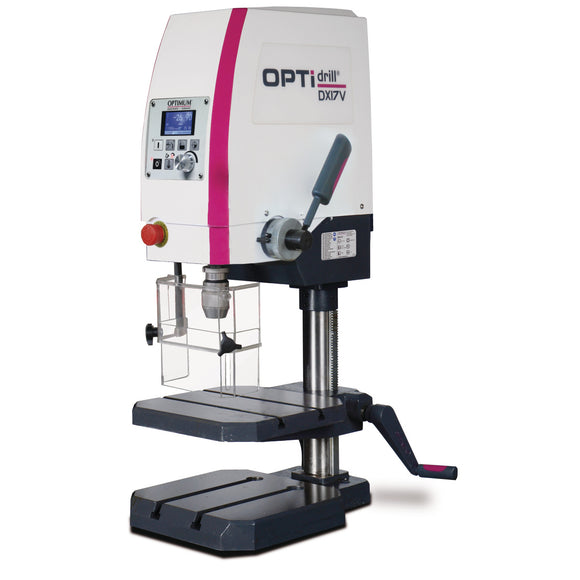

Bench drill OPTIdrill DX 17V.
  • Best power transmission through aluminum pulleys
  • Emergency stop impact switch
  • Drill spindle with precision ball bearings
  • Guaranteed concentricity accuracy less than 0. 03 mm measured at the drilling spindle

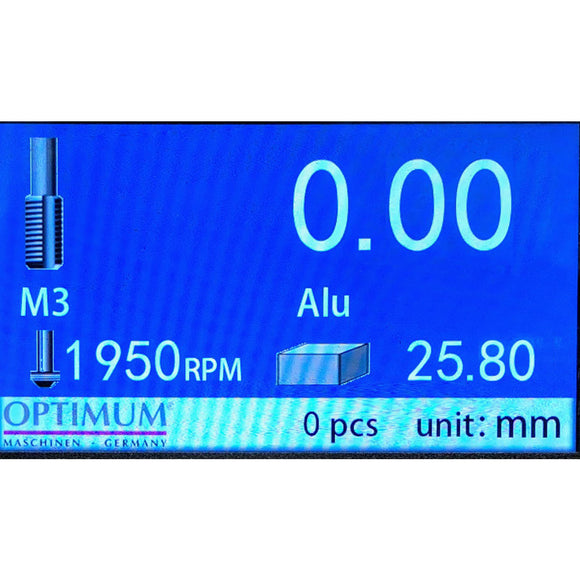

  • Dirt and water resistant, easy to clean membrane keyboard with high-contrast OLED display
  • Glare-free LED lighting integrated on the left and right in the drill head. Patent pending DE A1

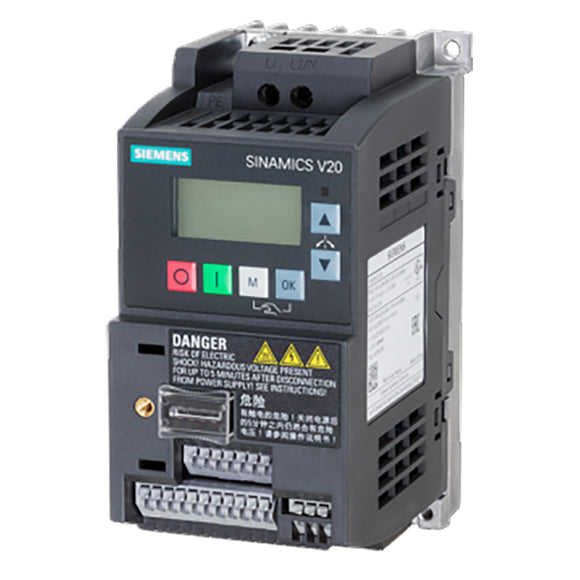

    • Siemens SINAMICS V20 inverter


    .
  • 50 - 4000 min¯¹
  • Column diameter 60 mm
  • Continuous drilling performance (steel) 13 mm
  • Drilling performance (steel) 16 mm
  • Drilling table workspace length 290 mm
  • Drilling table workspace width 290 mm
  • EMV-Class C2
  • Frequency 50 Hz

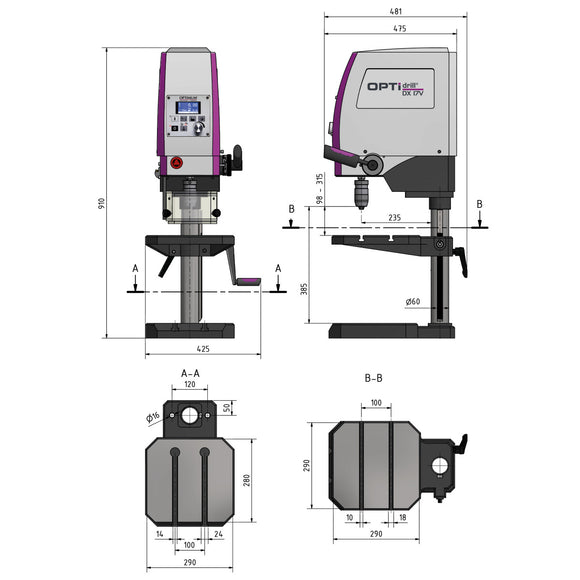

  • Height 910 mm
  • Length 425 mm
  • Machine base workspace length 290 mm
  • Machine base workspace width 280 mm
  • Motor power 1.0 kW
  • Net weight 73 kg
  • Quill stroke 60 mm
  • Reach 235 mm
  • Spindle chuck MT 2
  • Standard DIN EN 55011
  • Supply voltage 230 V
  • Thread tapping (steel) M8
  • Width 481 mm
  • Keyless chuck 1 - 13 mm
