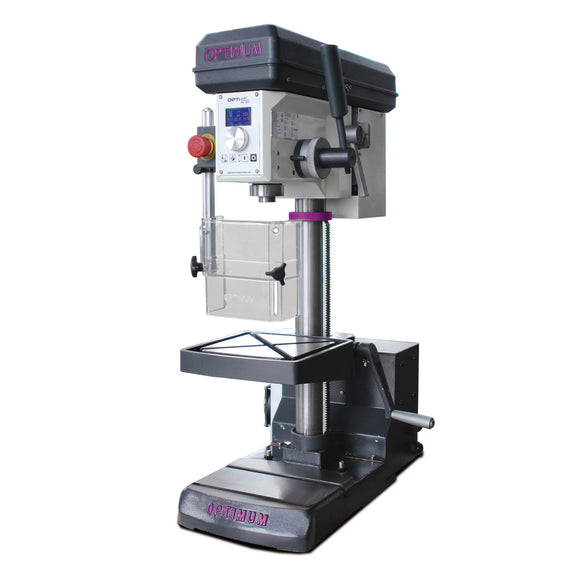

Bench drill OPTIdrill DH 18V set.

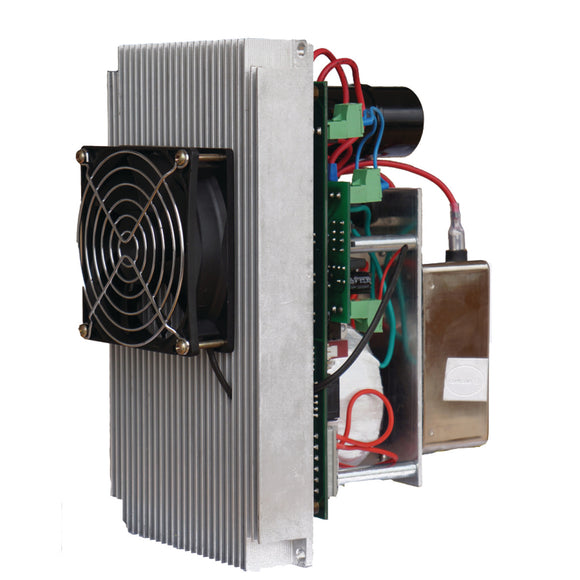

  • Restless and powerful brushless drive
  • Best power transmission through aluminum pulleys in conjunction with toothed GATES quality V-belt
  • Smooth running thanks to ground multi-tooth driver
  • Concentricity guaranteed less than 0. 015 mm measured in Bohrpinole
  • Drill spindle with precision ball bearing

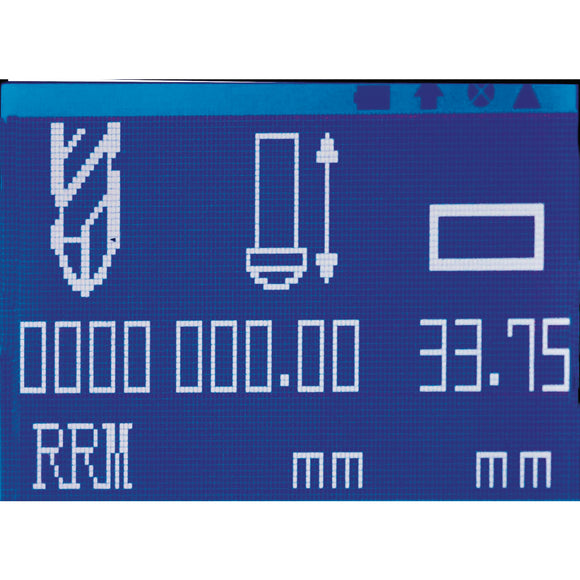

  • Membrane keyboard; Dirt and water resistant, easy to clean
  • High quality OPTIMUM keyless chuck as standard
  • Separate emergency stop impact switch
  • Precisely machined drill table with diagonal T-slots, 360 ° rotatable
  • Circulating cooling water channel around the drilling table
  • Large, height-adjustable protective screen with safety switch for the utmost protection of the user

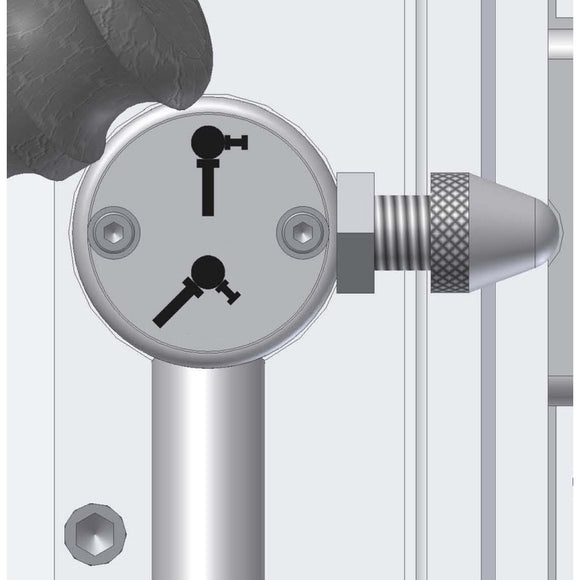

  • depth stop
  • V-belt cover with safety switch
  • V-belt tensioning device
  • Massive base plate, large dimensions, strongly ribbed on the back


.
  • 100 - 6000 min¯¹

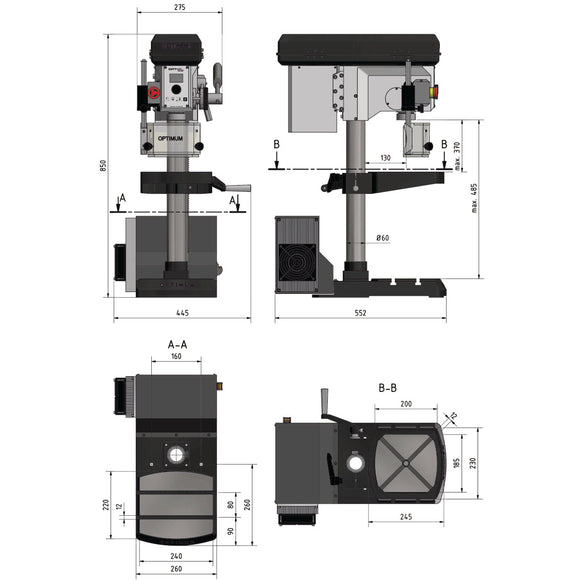

  • Column diameter 60 mm
  • Continuous drilling performance (steel) 16 mm
  • Drilling performance (steel) 18 mm
  • Drilling table rotation 360 °
  • Drilling table workspace length 230 mm
  • Drilling table workspace width 245 mm
  • Frequency 50 Hz
  • Height 850 mm
  • Length 552 mm
  • Machine base workspace length 220 mm
  • Machine base workspace width 240 mm
  • Net weight 64 kg
  • Number of gears 5
  • Quill stroke 65 mm
  • Reach 130 mm
  • Spindle chuck MT 2
  • Supply voltage 230 V

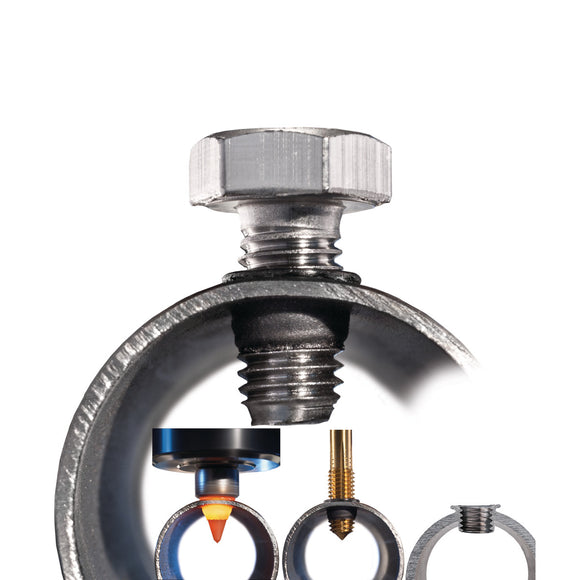

  • Thread tapping (steel) M10
  • Total rated value 1,5 kW
  • Width 445 mm
  • Keyless chuck 1 - 13 mm
  • Morse cone MK 2
  • T-nuts
