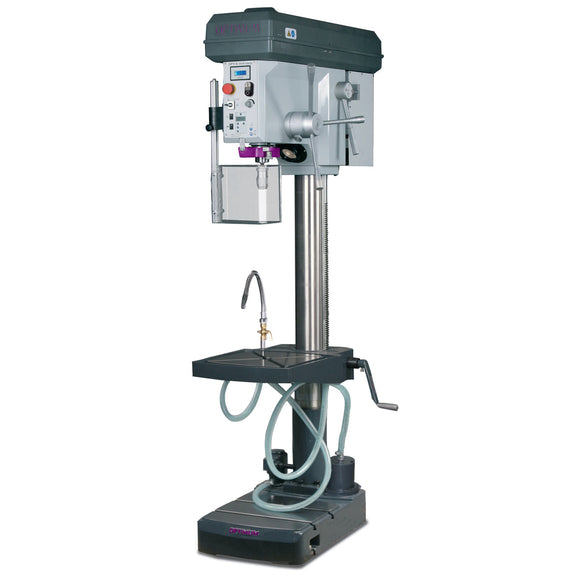

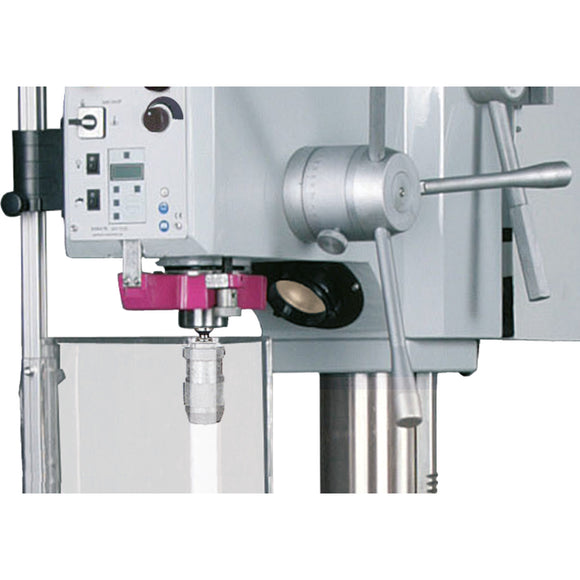

Upright drill OPTIdrill B 34HV Special offer set

• 40 - 5000 min¯¹
• Column diameter 115 mm
• Continuous drilling performance (steel) 26 mm
• Coolant pump drive motor output 40 W
• Drilling performance (steel) 34 mm
• Drilling table rotation 360 °
• Drilling table workspace length 420 mm
• Drilling table workspace width 400 mm
• EMV-Class C3
• Frequency 50 Hz
• Height 1930 mm
• Length 918 mm
• Machine base workspace length 390 mm
• Machine base workspace width 390 mm
• Net weight 275 kg
• Number of gears 9 Steps
• Quill stroke 160 mm
• Reach 285 mm
• Spindle chuck MT 4
• Standard DIN EN 55011
• Supply voltage 230 V
• Thread tapping (steel) M 16 x 2 mm
• Total rated value 2,2 kW
• Width 595 mm

• Optimum quality keyless chuck (1 - 16 mm)
• Morse cone MK 4
• T-nuts

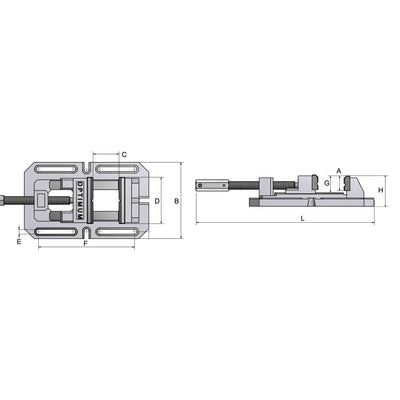

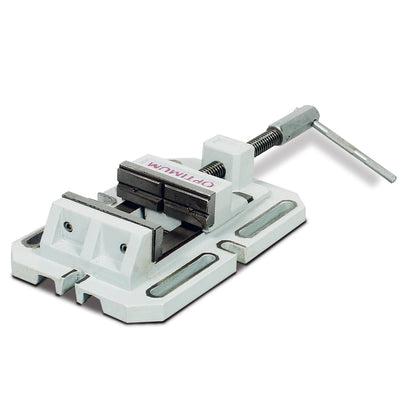

• Machine vise BSI 140
