Bench drill OPTIdrill DH 24BV-1
Bench drill OPTIdrill DH 24BV-2
Bench drill OPTIdrill DH 24BV-3
Bench drill OPTIdrill DH 24BV-4
Bench drill OPTIdrill DH 24BV-5
Bench drill OPTIdrill DH 24BV-6
Bench drill OPTIdrill DH 24BV-7
Bench drill OPTIdrill DH 24BV-8

Bench drill OPTIdrill DH 24BV

€3.393,57 EUR (€2.759,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3020420 Barcode: 4030635020445

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

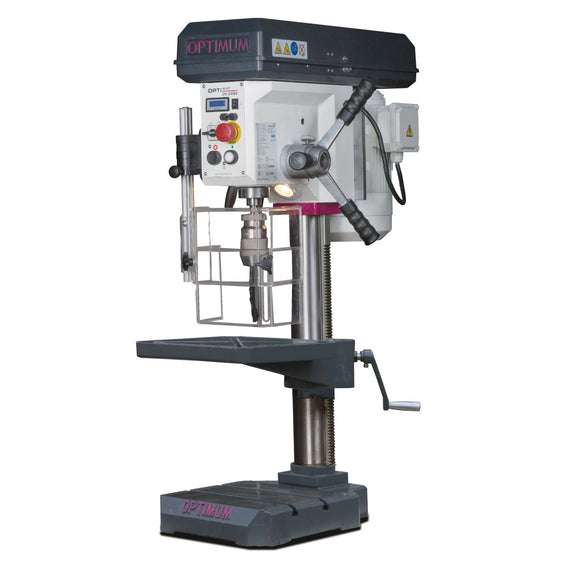

Bench drill OPTIdrill DH 24BV.
  • Smooth and powerful electric motor
  • Two speed levels
  • Forward / reverse operation

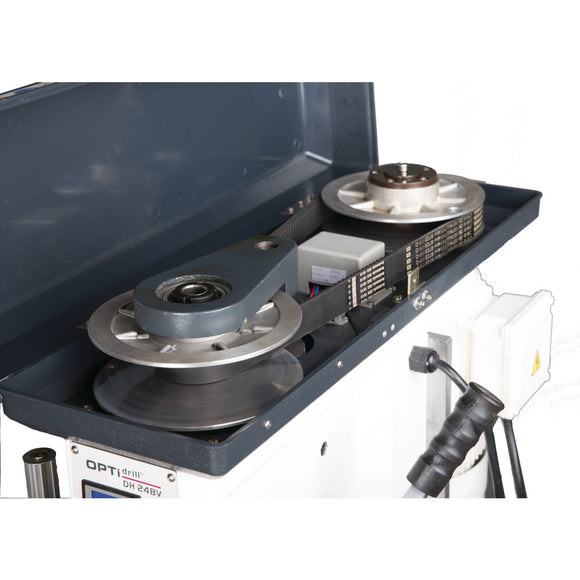

  • V-belt cover with safety switch
  • Digital speed indicator integrated in the housing
  • Concentricity guaranteed less than 0. 015 mm measured in quill
  • Height-adjustable feed guard with microswitch for the utmost protection of the user

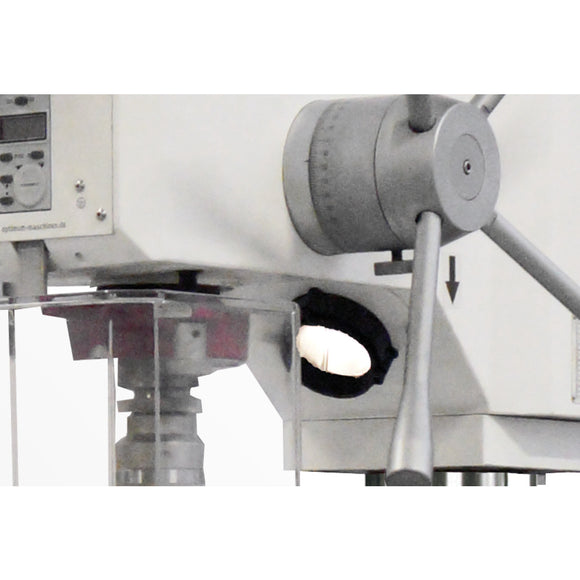

  • Machine light integrated in the drill head
  • Drill spindle with precision ball bearing
  • High quality keyless chuck as standard
  • Precision machined drilling table with diagonally running T-slots, 360 ° rotatable with circulating cooling water channel
  • Thick-walled cast-iron column for high power absorption and stability
  • Massive base plate, large dimensions heavily ribbed on the back
  • Base plate usable by pivoting away the drilling table as a work surface for particularly high workpieces
From DH 28BV
  • Easy tool change through integrated expeller
  • Quillons made of steel
DH 40BV
  • Digital depth gauge
  • Countershaft transmission allows a much higher torque


.
  • 300 - 4000 min¯¹
  • Column diameter 80 mm
  • Continuous drilling performance (steel) 20 mm
  • Drilling performance (steel) 24 mm
  • Drilling table rotation 360 °
  • Drilling table workspace length 280 mm
  • Drilling table workspace width 300 mm
  • Frequency 50 Hz
  • Height 1025 mm
  • Length 675 mm
  • Machine base workspace length 280 mm
  • Machine base workspace width 260 mm
  • Net weight 115 kg
  • Number of gears 2 Steps
  • Number of gears spindle motor 2 Steps
  • Quill stroke 85 mm
  • Reach 165 mm
  • Speed control Manual
  • Spindle chuck MT 2
  • Spindle motor power 0.85 / 1.50 kW
  • Supply voltage 400 V
  • Width 555 mm
  • Optimum quality keyless chuck (1 - 16 mm)
  • Morse cone MK 2 / B16
  • T-nuts

    Shipping to Ireland & UK.

    To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

    Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

    €10 is via DPD and the €60 is via pallet express.

    Free shipping on all online orders over €100.00

    You can also pick up an item for free from our Longford store.

    All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

    We expect delivery to be within 2 to 5 working days thereafter.

    Standard Delivery will be by Courier service for orders up to 30kg in weight.
