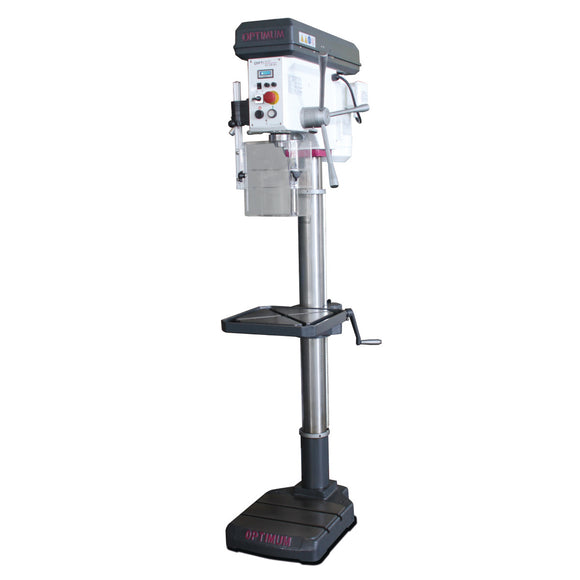

Upright drill OPTIdrill DH 28BV.

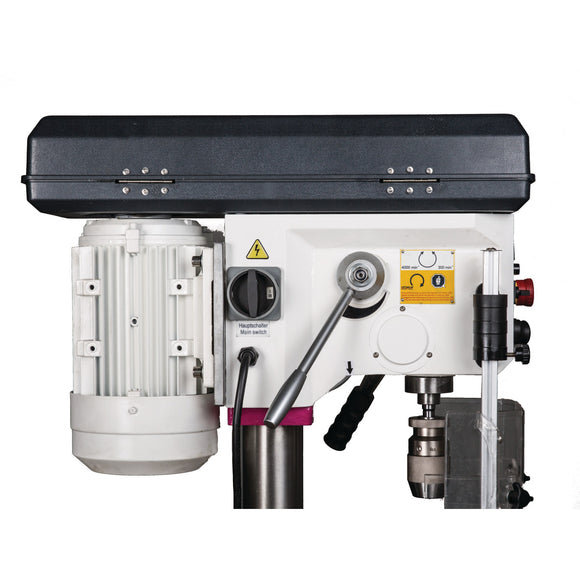

  • Smooth and powerful electric motor
  • Two speed levels
  • Forward / reverse operation

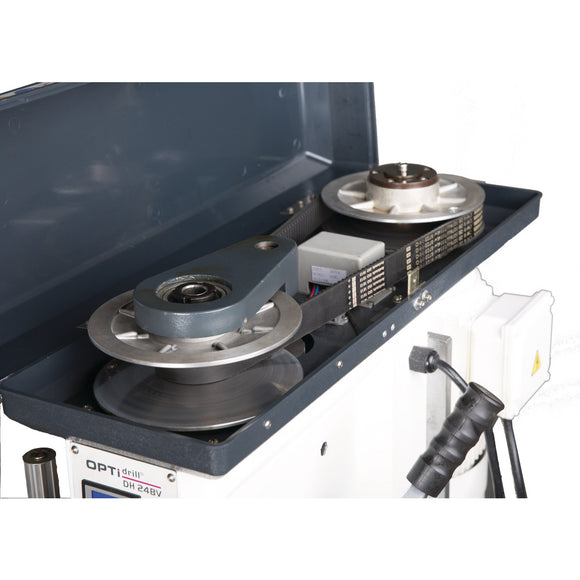

  • V-belt cover with safety switch
  • Digital speed indicator integrated in the housing
  • Concentricity guaranteed less than 0. 015 mm measured in quill
  • Height-adjustable feed guard with microswitch for the utmost protection of the user
  • Machine light integrated in the drill head
  • Drill spindle with precision ball bearing
  • High quality keyless chuck as standard
  • Precision machined drilling table with diagonally running T-slots, 360 ° rotatable with circulating cooling water channel
  • Thick-walled cast-iron column for high power absorption and stability
  • Massive base plate, large dimensions heavily ribbed on the back
  • Base plate usable by pivoting away the drilling table as a work surface for particularly high workpieces
From DH 28BV

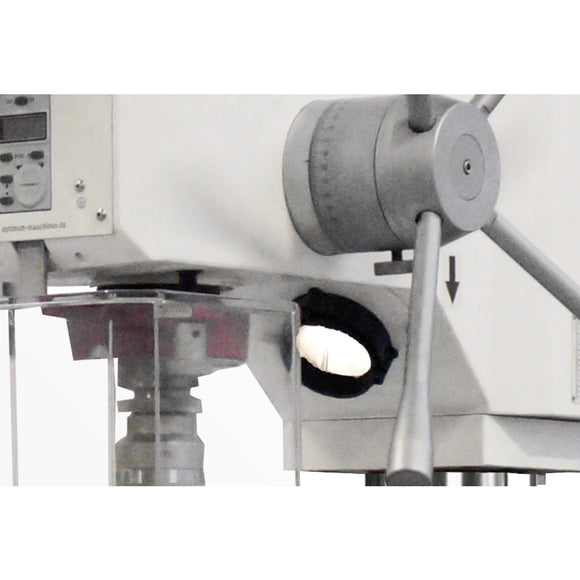

  • Easy tool change through integrated expeller
  • Quillons made of steel
DH 40BV
  • Digital depth gauge
  • Countershaft transmission allows a much higher torque


.
  • 300 - 4000 min¯¹
  • Column diameter 92 mm
  • Continuous drilling performance (steel) 24 mm
  • Drilling performance (steel) 28 mm
  • Drilling table rotation 360 °
  • Drilling table workspace length 340 mm
  • Drilling table workspace width 360 mm
  • Frequency 50 Hz
  • Height 1745 mm
  • Length 755 mm
  • Machine base workspace length 320 mm
  • Machine base workspace width 320 mm
  • Net weight 152 kg
  • Number of gears 2 Steps
  • Number of gears spindle motor 2 Steps
  • Quill stroke 105 mm
  • Reach 200 mm
  • Speed control Manual
  • Spindle chuck MT 3
  • Spindle motor power 0.85 / 1.50 kW
  • Supply voltage 400 V
  • Width 550 mm
  • Optimum quality keyless chuck (1 - 16 mm)
  • Morse cone MK 3 / B16
  • T-nuts

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Morse taper MK3-B16 Morse taper MK3-B16 - 0

Morse taper MK3-B16

Optimum

€12,18 EUR
Workplace mat 3040 x 640 mm Workplace mat 3040 x 640 mm - 0

Workplace mat 3040 x 640 mm

Unicraft

€441,57 EUR
Enquire
Keyless drill chuck DKC13 0-13 mm Keyless drill chuck DKC13 0-13 mm - 0

Keyless drill chuck DKC13 0-13 mm

Optimum

€43,05 EUR
OPTIMUM direct quick-action drill chuck MK 3 1 - 16 mm; up to 6000 min¯¹ OPTIMUM direct quick-action drill chuck MK 3 1 - 16 mm; up to 6000 min¯¹ - 0

OPTIMUM direct quick-action drill chuck MK 3 1 - 16 mm; up to 6000 min¯¹

Optimum

€118,08 EUR
Enquire
Tapping chuck with inserts MK 3; M3 - M12 Tapping chuck with inserts MK 3; M3 - M12 - 0

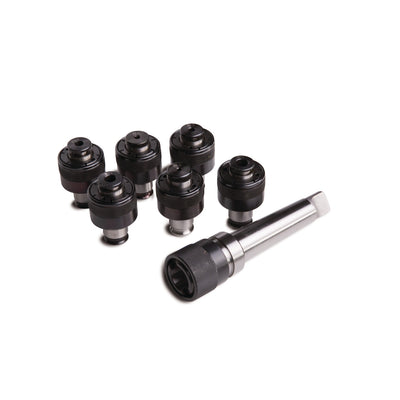

Tapping chuck with inserts MK 3; M3 - M12
