Optimum OPTIdrill DP 33 Upright Drill

€2.126,67 EUR

Tax includedShipping calculated at checkout

SKU: 3020640 Barcode: 4030635042522

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

In stock!

Contact us about this product

WhatsApp
Description Features Delivery contents Shipping

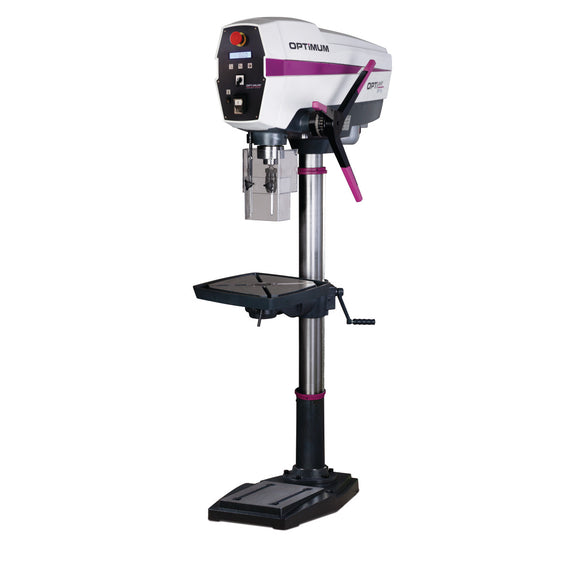

Optimum OPTIdrill DP 33 Upright Drill

The Optimum OPTIdrill DP 33 is a heavy-duty 400 V upright drill with a digital depth gauge, an integrated LED machine light and a quiet spindle design. The industrial motor and stable T-slot drilling table with a circulating cooling water channel keep workpieces secure and holes repeatable, while the separate emergency stop gives you quick, safe shutdown, so you avoid depth errors, poor visibility and noisy, tiring drilling.

Key features

  • Heavy-duty design

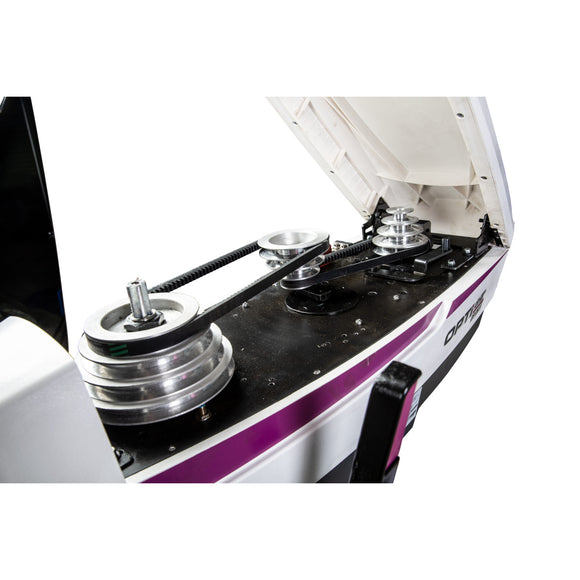

  • Very quiet running thanks to the new spindle design
  • Industrial motor

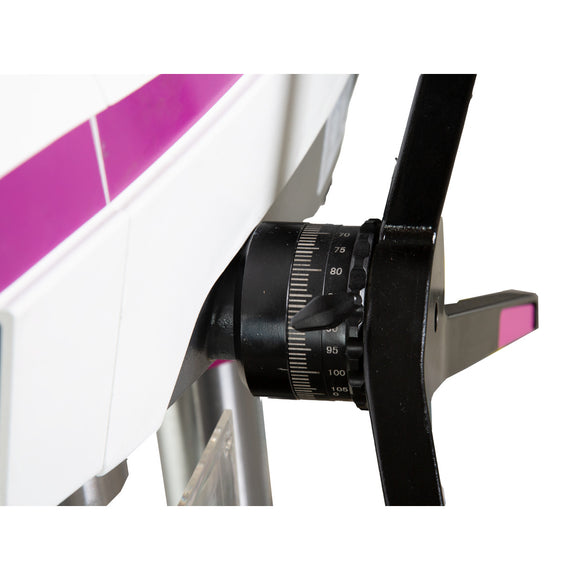

  • Digital depth gauge for repeatable hole depths
  • LED machine light integrated in the drill head

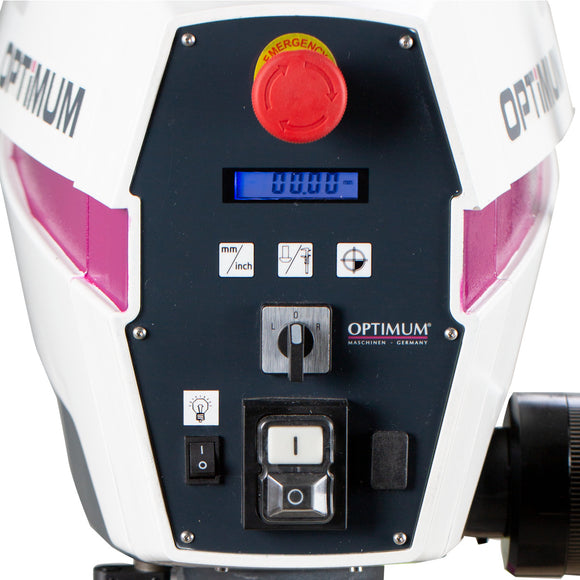

  • Separate emergency stop pushbutton
  • Precisely machined, stable drilling table with diagonal T-slots and a circulating cooling water channel

Technical specifications

Drilling capacity

  • Drilling capacity in steel: 30 mm
  • Continuous drilling capacity in steel: 25 mm
  • Quill stroke: 125 mm
  • Reach: 270 mm
  • Column diameter: 92 mm
  • Spindle mount: MT 4

Speed and drive

  • Speed range: 120 - 1810 min⁻¹
  • Number of speeds: 9
  • Motor power: 1.1 kW
  • Supply voltage: 400 V, 50 Hz

Drilling table

  • Table tilt angle: 45°
  • Table rotation: 360°

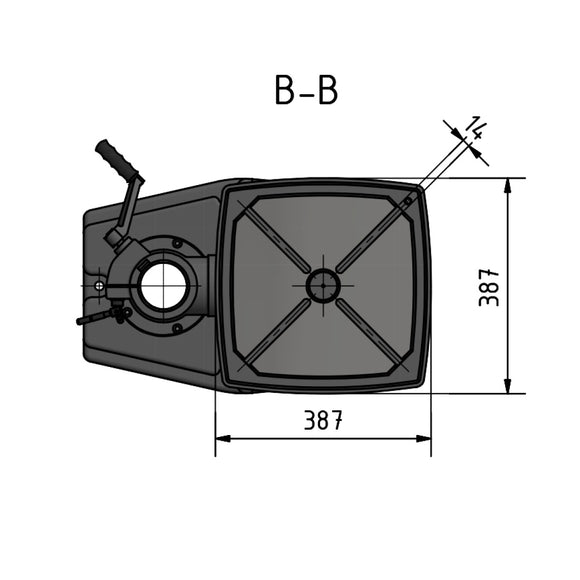

  • Table working area: 387 × 387 mm

Machine base

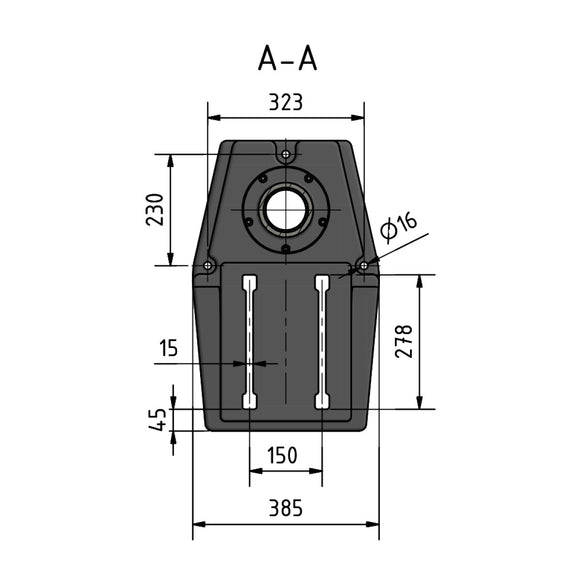

  • Base working area: 270 × 327 mm

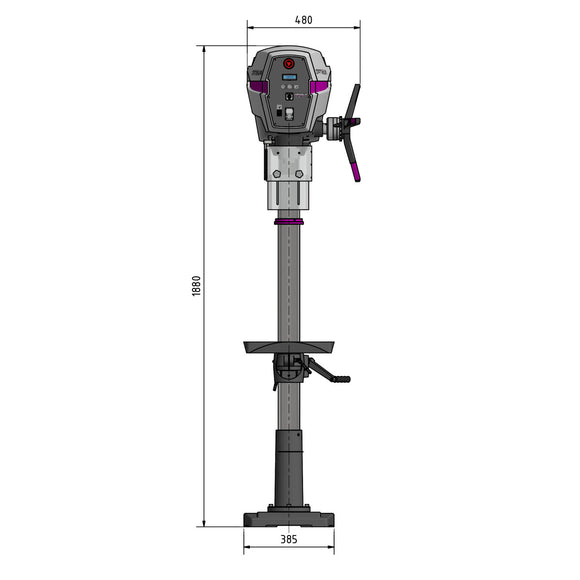

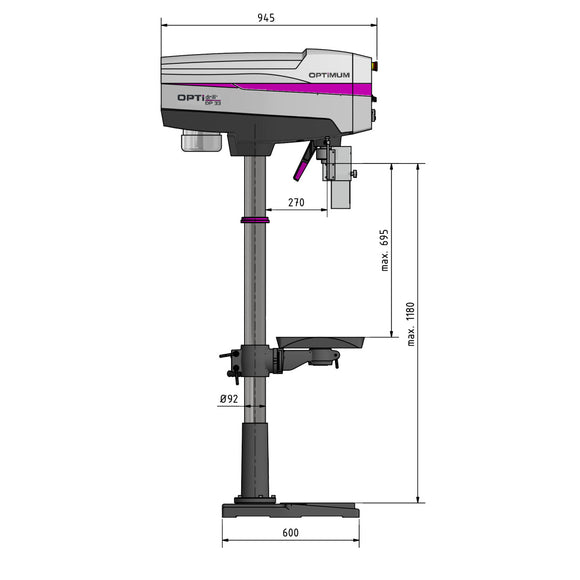

Dimensions and weight

  • Length: 945 mm
  • Width: 485 mm
  • Height: 1880 mm
  • Net weight: 186 kg
  • Quick-release drill chuck 0 - 16 mm
  • T-Nutensteine
  • Outing
  • Adapter MK 4-B16
  • Operating tool
