Upright drill OPTIdrill DP 26V-F

€2.458,77 EUR (€1.999,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3020675F Barcode: 4030635046025

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

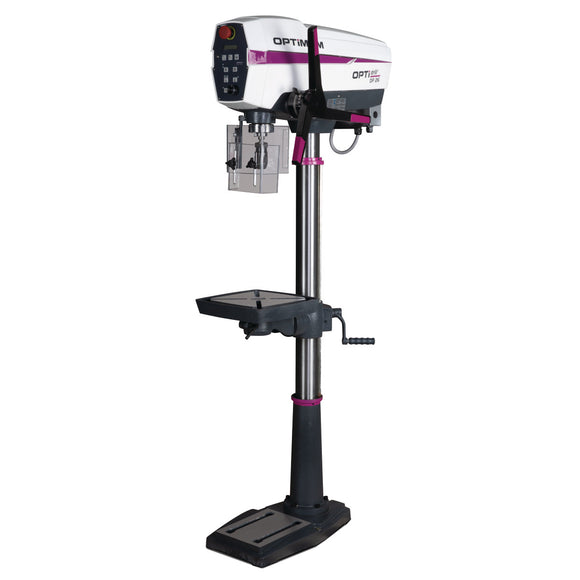

Upright drill OPTIdrill DP 26V-F.
  • Industrial motor
  • Quiet running spindle thanks to new spindle design
  • Machine operation with safety electrics in 24 V DC voltage
  • Guaranteed concentricity ≤ 0. 02 mm measured in the drilling spindle
  • Right/left rotation
  • Precision spindle bore

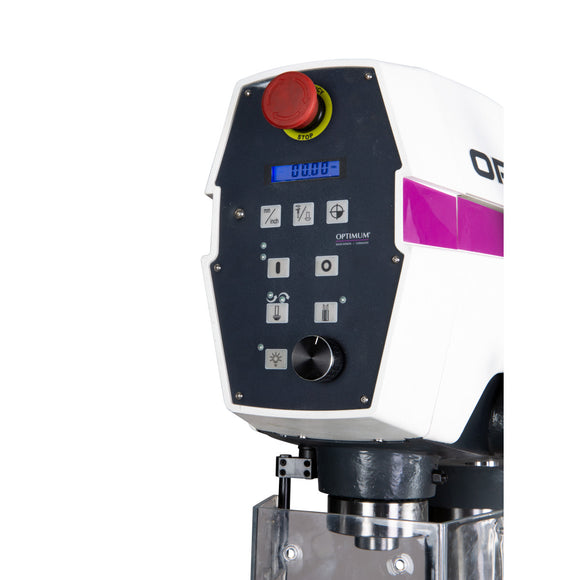

  • Control panel with user-friendly, dirt and water resistant membrane keypad
  • Speed display
  • Separate emergency stop impact switch
  • Thread cutting function

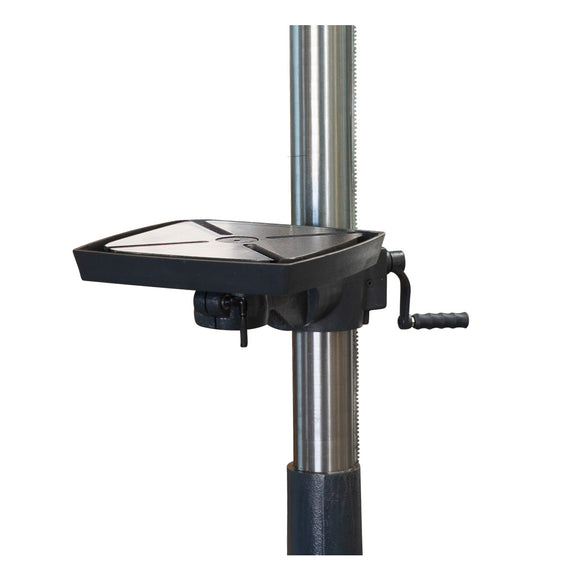

  • Precisely machined, stable drilling table with diagonally running T-slots with circumferential cooling water channel, laterally tiltable by ±45° and 360° rotatable
  • Digital depth gauge
  • LED machine light integrated in drill head
  • V-belt cover with safety switch
  • Thick-walled steel column for high force absorption and stability
  • Solid, large-dimensioned base plate with T-slots
  • Heavy-duty design of the entire machine


.
  • 60 - 3050 min¯¹
  • Column diameter 80 mm
  • Continuous drilling performance (steel) 20 mm
  • Drilling performance (steel) 25 mm
  • Drilling table angle 45 °
  • Drilling table rotation 360 °
  • Drilling table workspace length 308 mm
  • Drilling table workspace width 308 mm
  • Frequency 50 Hz
  • Height 1724 mm
  • Length 845 mm
  • Machine base workspace length 202 mm
  • Machine base workspace width 265 mm
  • Motor power 0.75 kW
  • Net weight 107 kg
  • Number of gears 12 Steps
  • Quill stroke 95 mm
  • Reach 209 mm
  • Spindle chuck MT 3
  • Supply voltage 400 V
  • Width 406 mm
  • Quick-action drill chuck 1-16 mm
  • Taper arbor for drill chuck
  • T-nuts
  • ejector

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
