Upright drill OPTIdrill DP 26BV - F-1
Upright drill OPTIdrill DP 26BV - F-2
Upright drill OPTIdrill DP 26BV - F-3
Upright drill OPTIdrill DP 26BV - F-4
Upright drill OPTIdrill DP 26BV - F-5
Upright drill OPTIdrill DP 26BV - F-6

Upright drill OPTIdrill DP 26BV - F

€2.589,15 EUR (€2.105,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3027660F Barcode: 4030635047237

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

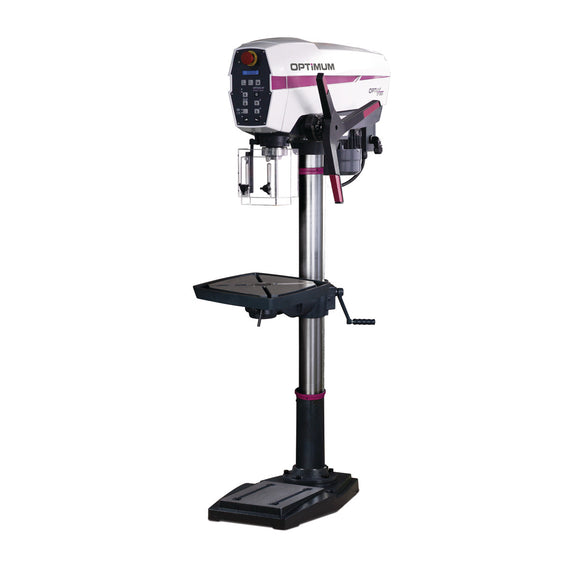

Upright drill OPTIdrill DP 26BV - F.

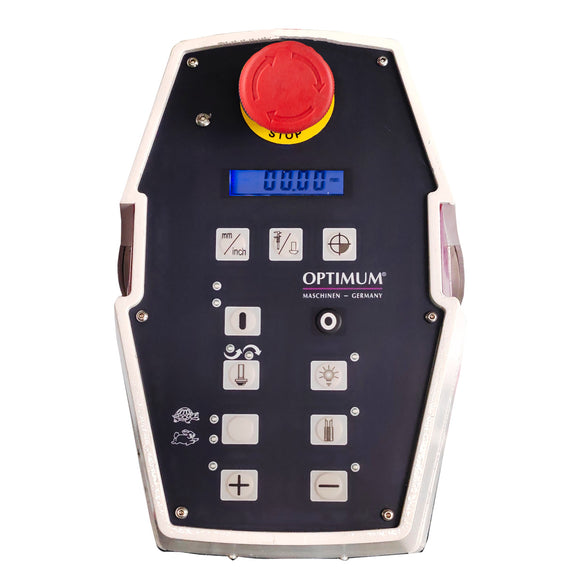

  • Separate emergency stop switch
  • Digital depth gauge
  • Machine operation with safety electrics in 24 V DC voltage
  • Guaranteed concentricity ≤ 0. 02 mm measured in the drilling spindle
  • Particularly smooth running thanks to new spindle design
  • Industrial motor
  • LED machine light integrated in the drill head
  • Precision spindle bore
  • Thick-walled steel column for high force absorption and stability
  • Speed display
  • Solid, large base plate with T-slots
  • Precisely crafted, stable drill table with diagonal T-slots with circumferential cooling water channel, can be tilted sideways by ±45° and rotated through 360

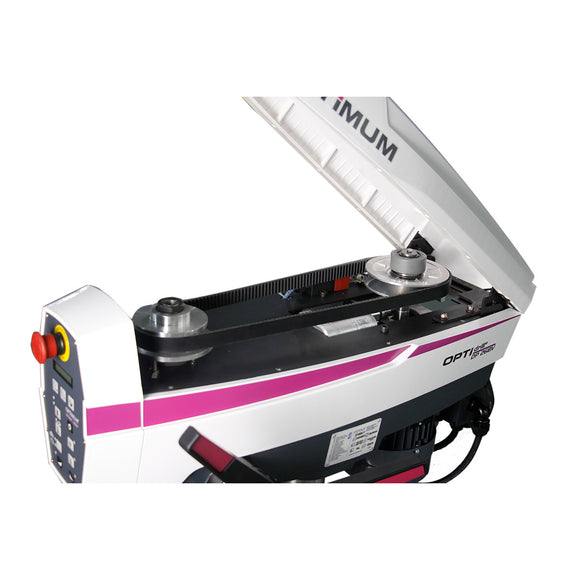

  • V-belt cover with safety switch


.
  • 420 - 2100 min¯¹
  • Column diameter 80 mm
  • Continuous drilling performance (steel) 16 mm
  • Drilling performance (steel) 20 mm
  • Drilling table angle 45 °
  • Drilling table rotation 360 °
  • Drilling table workspace length 308 mm
  • Drilling table workspace width 308 mm
  • Frequency 50 Hz
  • Height 1724 mm
  • Length 748 mm
  • Machine base workspace length 202 mm
  • Machine base workspace width 265 mm
  • Motor power 0.45 / 0.75 kW
  • Net weight 111 kg
  • Number of gears 2
  • Quill stroke 95 mm
  • Reach 209 mm
  • Spindle chuck MT 3
  • Supply voltage 400 V
  • Width 406 mm
  • Quick-action drill chuck 1 - 16 mm
  • T-nuts
  • ejector
