Upright drill OPTIdrill DH 28GSV

€5.172,15 EUR (€4.205,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3034235 Barcode: 4030635033179

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

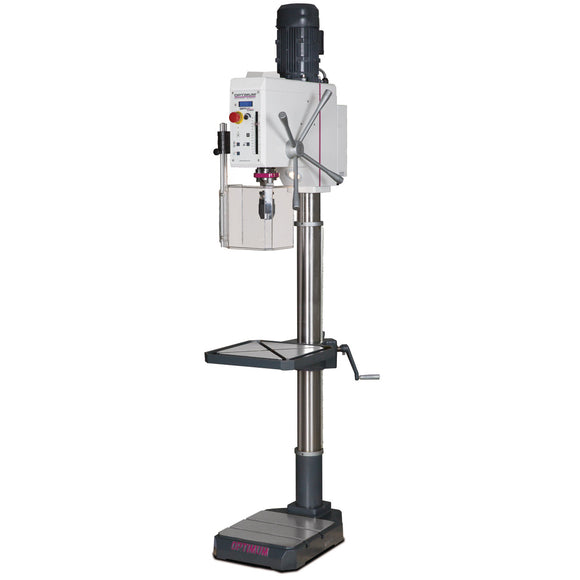

Upright drill OPTIdrill DH 28GSV.

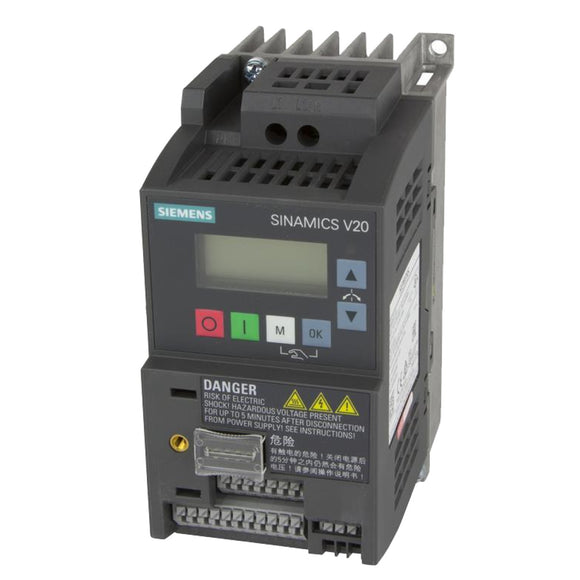

  • Frequency converter

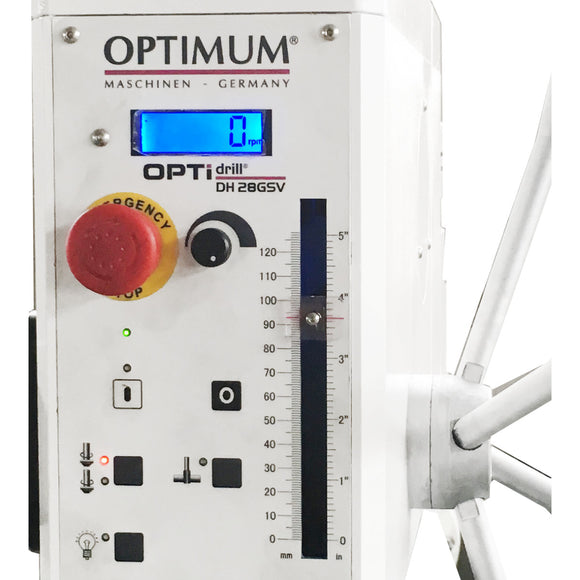

  • Digital speed display
  • Smooth running thanks to ground multi-tooth driver
  • High concentricity due to hardened and ground main spindle
  • Low-maintenance gearbox with grease lubrication
  • Gearbox with PA6 gears
  • Large speed range
  • User-friendly membrane keyboard
  • Heavy, solid cast construction
  • Large, height-adjustable protective screen with safety switch for the utmost protection of the user
  • Drilling depth stop adjustable with millimeter scale
  • Forward/reverse operation
  • Tapping function
  • Machine light integrated in the drill head
  • Integrated expeller for easy tool change
  • Precision machined drilling table with diagonal T-slots with all-round cooling water channel
  • Thick-walled cast-iron column for high power absorption and stability
  • Massive base plate, large dimensions and strongly ribbed on the back
  • Optional foot switch for switching between right-left rotation and thread cutting (article no. ) available


.
  • 45 - 3200 min¯¹
  • Column diameter 92 mm
  • Continuous drilling performance (steel) 23 mm
  • Drilling performance (steel) 26 mm
  • Drilling table load bearing capacity 100 kg
  • Drilling table rotation 360 °
  • Drilling table workspace length 376 mm
  • Drilling table workspace width 394 mm
  • EMV-Class C2
  • Frequency 50 Hz
  • Height 2080 mm
  • Length 690 mm
  • Machine base workspace length 350 mm
  • Machine base workspace width 356 mm
  • Net weight 184 kg
  • Number of gears 4 Steps
  • Quill stroke 127 mm
  • Reach 260 mm
  • Spindle chuck MT 3
  • Spindle motor power 1,5 kW
  • Standard DIN EN 55011
  • Supply voltage 400 V
  • Thread tapping (steel) M 16 x 2 mm
  • Width 375 mm
  • Adapter MK3-B16
