Gear drilling machine OPTIdrill DH 35G-1
Gear drilling machine OPTIdrill DH 35G-2
Gear drilling machine OPTIdrill DH 35G-3
Gear drilling machine OPTIdrill DH 35G-4
Gear drilling machine OPTIdrill DH 35G-5
Gear drilling machine OPTIdrill DH 35G-6

Gear drilling machine OPTIdrill DH 35G

€6.217,65 EUR (€5.055,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3034250 Barcode: 4030635038136

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

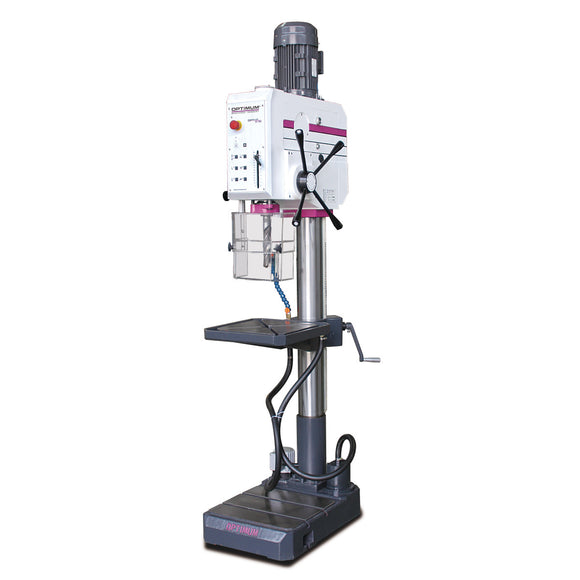

Gear drilling machine OPTIdrill DH 35G.
  • Dirt and water resistant, easy to clean membrane keypad
  • Electronics 24V DC
  • Depth stop
  • Electrical quill feed
  • Low-maintenance, running in closed oil bath gearbox
  • Threading attachment
  • Machine light integrated in the drill head
  • Main switch
  • Large, height-adjustable protective screen with safety switch for the utmost protection of the user
  • Large dimensioned, solid drill table, precisely worked with diagonal T-slots and all-round cooling water channel, strongly ribbed on the back, tiltable ± 90 ° sideways
  • Coolant device integrated with coolant reservoir in the base plate
  • Chip filter cleans the coolant from coarse components
  • Extremely stable, thick-walled cast-iron column for high power consumption
  • Solid base plate with parallel T-slots, precision surface finish
  • Optional foot switch for switching between right-left rotation and thread cutting (article no. ) available


.
  • 75 - 2000 min¯¹
  • Column diameter 115 mm
  • Continuous drilling performance (steel) 26 mm
  • Coolant pump drive motor output 40 W
  • Drilling performance (steel) 35 mm
  • Drilling table load bearing capacity 200 kg
  • Drilling table workspace length 400 mm
  • Drilling table workspace width 420 mm
  • Frequency 50 Hz

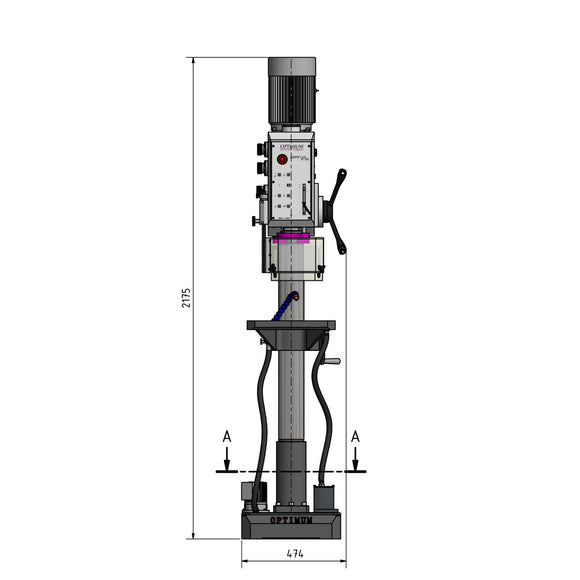

  • Height 2175 mm
  • Length 860 mm
  • Machine base workspace length 420 mm
  • Machine base workspace width 395 mm
  • Motor power 1,5 / 2,2 kW
  • Net weight 350 kg
  • Number of gears 8 Steps
  • Quill feed gears 3 Steps
  • Quill feed speed 0.05 – 0.15 mm/rev
  • Quill stroke 125 mm
  • Reach 285 mm
  • Spindle chuck MT 4
  • Supply voltage 400 V
  • Thread tapping (steel) M 24
  • Width 474 mm
  • Keyless drill chuck 1 - 16 mm
  • Morse taper MK 4/B16
