Gear drilling machine OPTIdrill DH 45V

€11.966,67 EUR (€9.729,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3034262 Barcode: 4030635038143

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

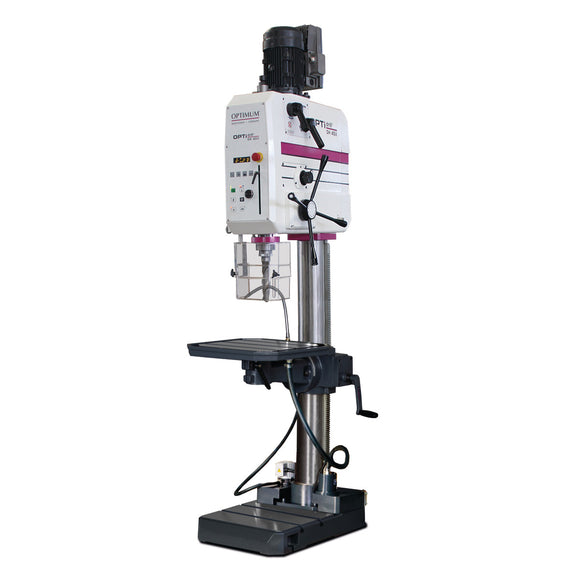

Gear drilling machine OPTIdrill DH 45V.

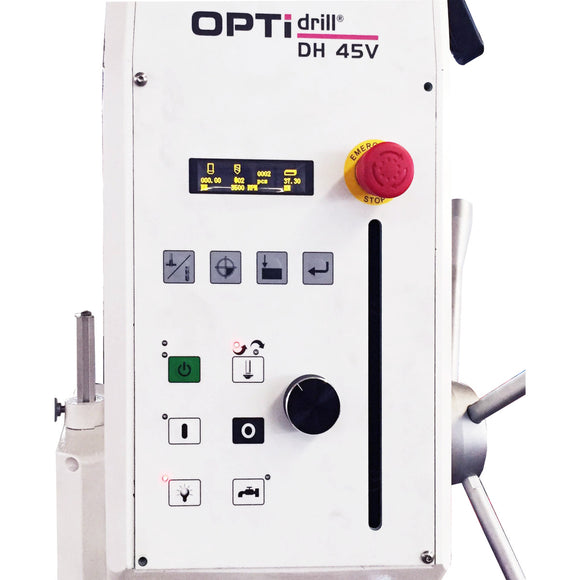

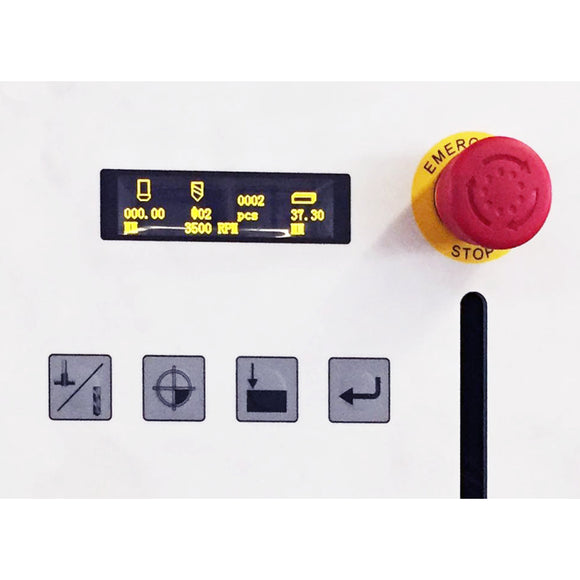

  • Dirt and water resistant, easy to clean membrane keypad
  • Electronics 24V DC
  • Drilling depth stop
  • Automatic gear lubrication via oil pump
  • Thread cutting device
  • Machine light integrated in drill head
  • Main switch
  • Largely dimensioned, height-adjustable safety screen with safety switch for the greatest possible protection of the operator
  • Largely dimensioned, solid drilling table, precisely machined with parallel T-slots and circumferential cooling water channel, heavily ribbed at the rear, can be tilted sideways by ± 90°.
  • Coolant unit and external coolant tank can be removed for easy and complete emptying
  • Extremely stable, thick-walled cast column for high force absorption
  • Solid base plate with parallel T-slots, precisely surface machined

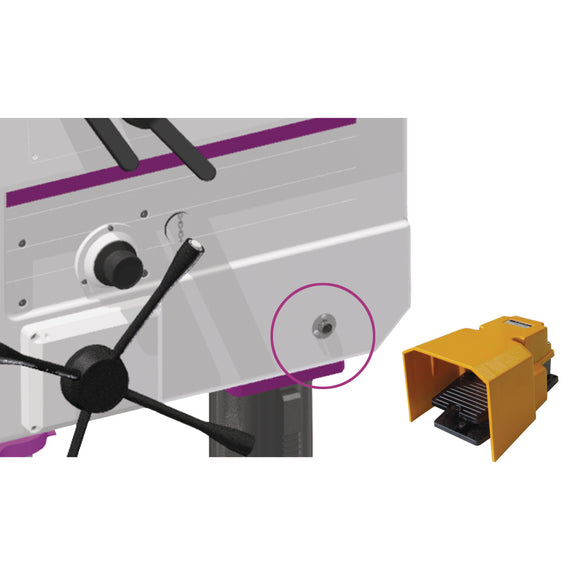

  • Optional foot switch available for switching between clockwise and counterclockwise rotation and for thread cutting (article no.
  • 30 - 2430 min¯¹
  • Column diameter 150 mm
  • Continuous drilling performance (steel) 35 mm
  • Coolant pump drive motor output 100 W
  • Drilling performance (steel) 40 mm
  • Drilling table angle 90 °
  • Drilling table load bearing capacity 250 kg
  • Drilling table rotation 360 °
  • Drilling table workspace length 530 mm
  • Drilling table workspace width 530 mm
  • Frequency 50 Hz

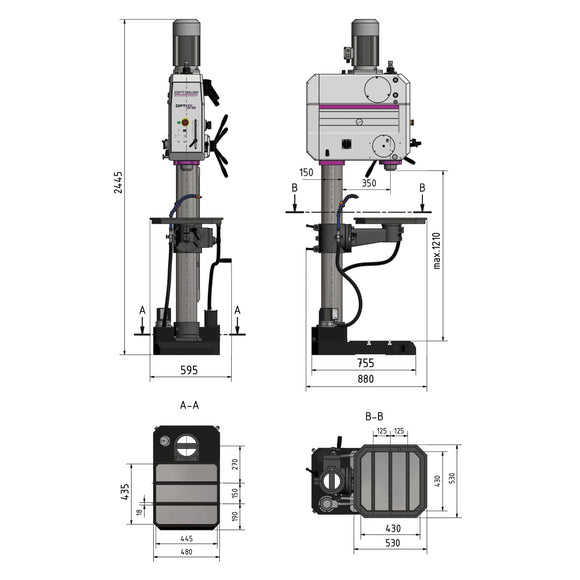

  • Height 2445 mm
  • Length 880 mm
  • Machine base workspace length 435 mm
  • Machine base workspace width 445 mm
  • Motor power 2.2 kW
  • Net weight 550 kg
  • Number of gears 4 Steps
  • Quill feed gears 3 Steps
  • Quill feed speed 0.1 – 0.2 mm/rev
  • Quill stroke 170 mm
  • Reach 350 mm
  • Spindle chuck MT 4
  • Supply voltage 400 V
  • Thread tapping (steel) M 30
  • Width 595 mm
  • Keyless chuck 1 - 16 mm
  • Morse cone MK 4-B16
  • Transmission oil
