Gear drilling machine OPTIdrill DH 55V

€17.552,10 EUR (€14.270,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3034267 Barcode: 4030635039355

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Gear drilling machine OPTIdrill DH 55V.
  • Infinitely variable speed control
  • High concentricity due to hardened and ground main spindle
  • Thread cutting device
  • Main switch
  • Largely dimensioned, height-adjustable safety screen with safety switch for maximum protection of the user
  • Drilling depth stop
  • 24V DC electronics
  • Electronic quill feed

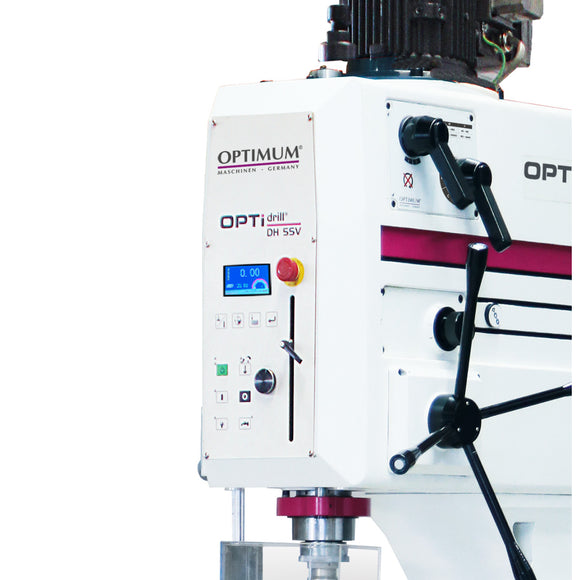

  • Dirt and water resistant, easy to clean membrane keypad

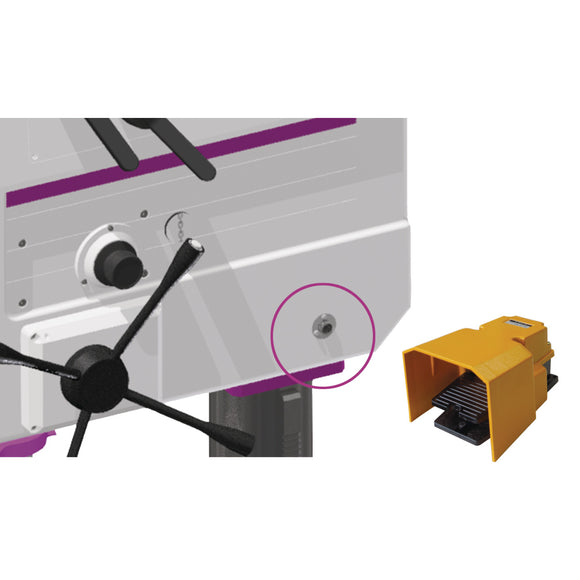

  • Optional foot switch for switching between clockwise and counterclockwise rotation and for thread cutting
  • Programmable feed cut-off
  • Easy-to-read digital display
  • Digitally adjustable drilling and thread depth
  • Digital zero point can be set
  • External coolant tank

Drilling and thread depth adjustmentDepth selection
freely adjustable via the digital display. Workpiece counter for drilling / threading

.
  • 10 - 3000 min¯¹
  • Continuous drilling performance (steel) 50 mm
  • Drilling performance (steel) 55 mm
  • Drilling table load bearing capacity 350 kg

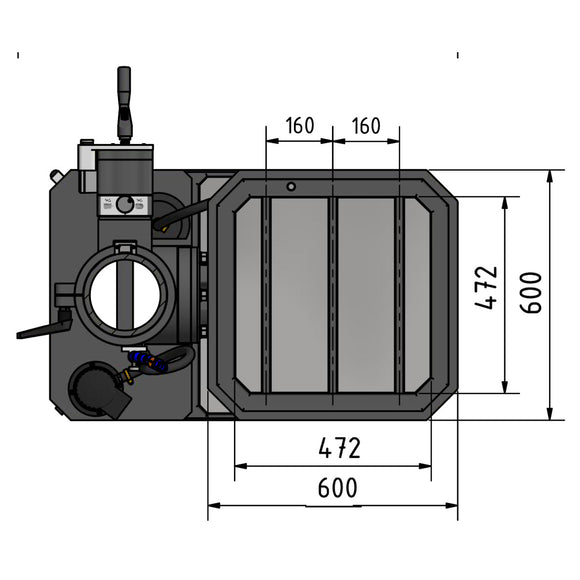

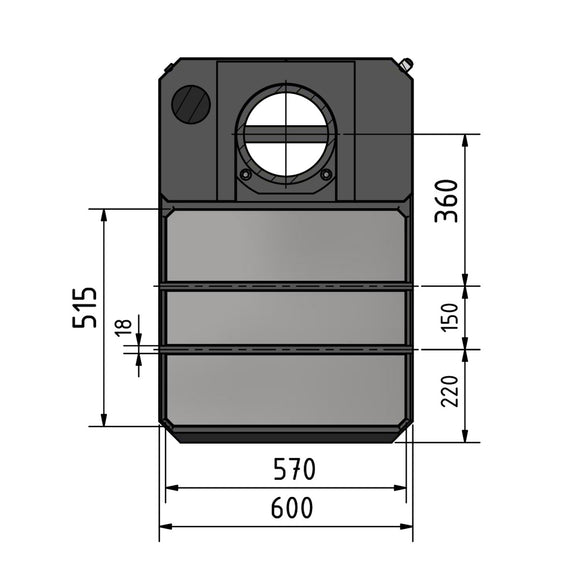

  • Drilling table workspace length 600 mm
  • Drilling table workspace width 600 mm
  • Frequency 50 Hz

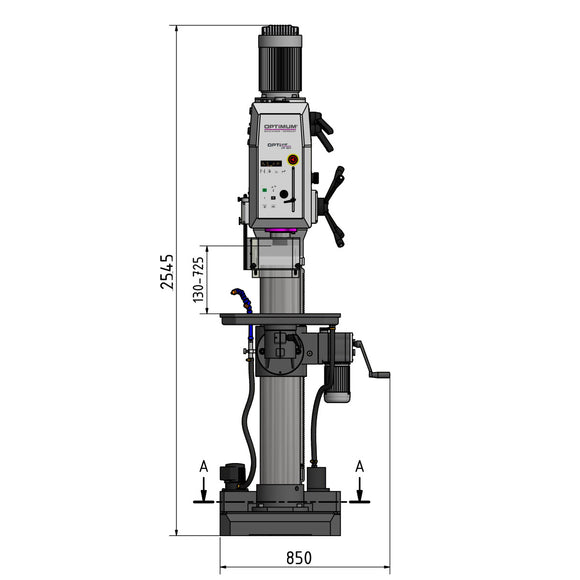

  • Height 2500 mm
  • Length 850 mm
  • Motor power 2,8 kW
  • Net weight 900 kg
  • Number of gears 4 Steps
  • Quill diameter 60 mm
  • Quill stroke 190 mm

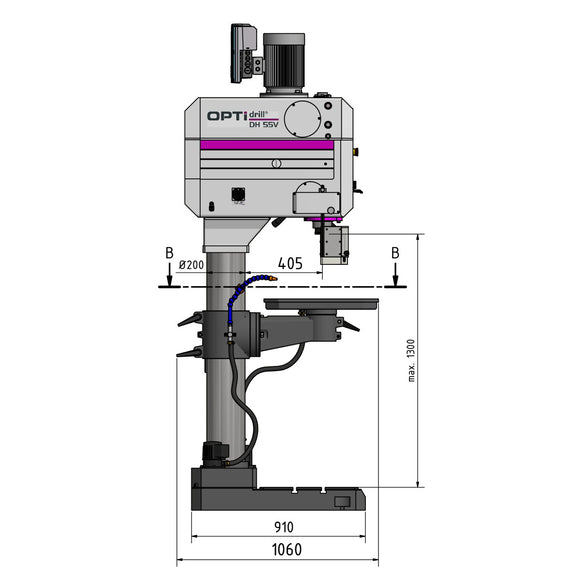

  • Reach 405 mm
  • Spindle chuck MT 4
  • Supply voltage 400 V
  • Thread tapping (steel) M 42
  • Width 1060 mm
  • Keyless chuck 1-16 mm
  • Morse cone MK 4/B 16
  • Transmission oil
