Universal pillar gear drill OPTIdrill DH 40G-1
Universal pillar gear drill OPTIdrill DH 40G-2
Universal pillar gear drill OPTIdrill DH 40G-3

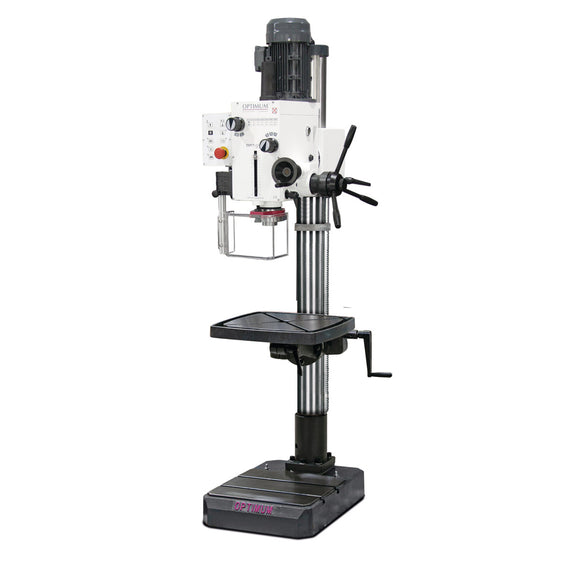

Universal pillar gear drill OPTIdrill DH 40G

€3.934,77 EUR (€3.199,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3034356 Barcode: 4030635046001

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Only 2 in stock!
Description Features Delivery contents Shipping
Universal pillar gear drill OPTIdrill DH 40G.
  • Heavy, solid cast construction
  • Smooth running due to polished gear wheels running in oil bath
  • Two-stage industrial electric motor
  • Tapping function
  • Gear head and table can be adjusted in height
  • Large speed range of 95 - 3,200 rpm through 12 switchable speeds
  • Large dimensioned, solid drilling table, precisely worked with diagonal T-slots and circumferential cooling water channel; strongly ribbed on the reverse and double clamped
  • Depth stop
  • Height-adjustable feed guard with micro-switch for the utmost protection of the user
  • Coupling for switching from manual coarse feed to manual fine feed
  • Thick-walled cast-iron column for high power absorption and stability
  • Solid precision surface machined base plate; by pivoting away the drill table can be used as a work surface for particularly high workpieces


.
  • 95 - 3200 min¯¹
  • Continuous drilling performance (steel) 25 mm
  • Drilling head angle 360 °
  • Drilling head height adjustment 265 mm
  • Drilling head rotation 45 °
  • Drilling performance (steel) 32 mm
  • Drilling table load bearing capacity 50 kg
  • Drilling table workspace length 500 mm
  • Drilling table workspace width 460 mm
  • Frequency 50 Hz
  • Height 2050 mm
  • Length 590 mm
  • Motor power 1.1 / 1.5 kW
  • Net weight 320 kg
  • Number of gears 2 x 6 Steps
  • Quill stroke 120 mm
  • Reach 280 mm
  • Spindle chuck MT 4
  • Supply voltage 400 V
  • Thread tapping (steel) M 16
  • Width 700 mm
  • Gear rim drill chuck 1-13 mm/B16
  • Taper mandrel for MK4/B16 drill chuck
  • Tightening rod M 16
  • Adapter MK4-MK3
  • Operating tool

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
