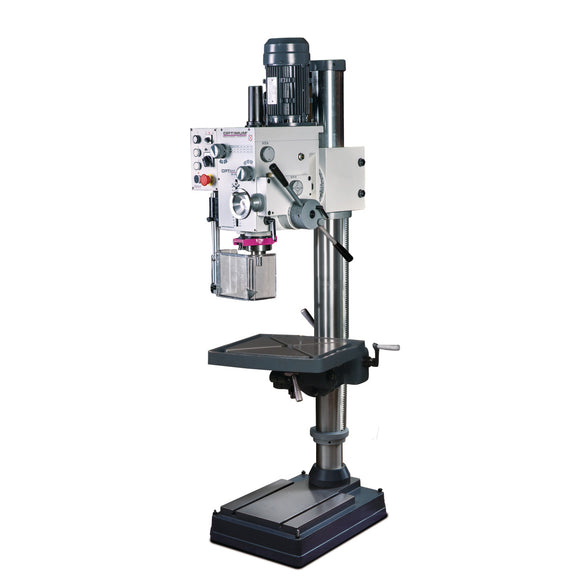

Universal pillar gear drill OPTIdrill DH 40GP

• 95 - 3200 min¯¹
• Continuous drilling performance (steel) 25 mm
• Drilling head angle 360 °
• Drilling head height adjustment 265 mm
• Drilling head rotation 45 °
• Drilling performance (steel) 32 mm
• Drilling table load bearing capacity 50 kg
• Drilling table workspace length 500 mm
• Drilling table workspace width 460 mm
• Frequency 50 Hz
• Height 2050 mm
• Length 590 mm
• Motor power 1.1 / 1.5 kW
• Net weight 335 kg
• Number of gears 2 x 6 Steps
• Quill feed gears 3 Steps
• Quill feed speed 0.1 / 0.18 / 0.26 mm/rev
• Quill stroke (automatic mode) 115 mm
• Quill stroke 120 mm
• Reach 280 mm
• Spindle chuck MT 4
• Supply voltage 400 V
• Thread tapping (steel) M 16
• Width 700 mm

• Gear rim drill chuck 1-13 mm/B16
• Taper mandrel for MK4/B16 drill chuck
• Tightening rod M 16
• Adapter MK4-MK3
• Operating tool
