Pneumatic tapping machine OPTIdrill DGP 16

€1.536,27 EUR (€1.249,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3081126 Barcode: 4030635049118

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out

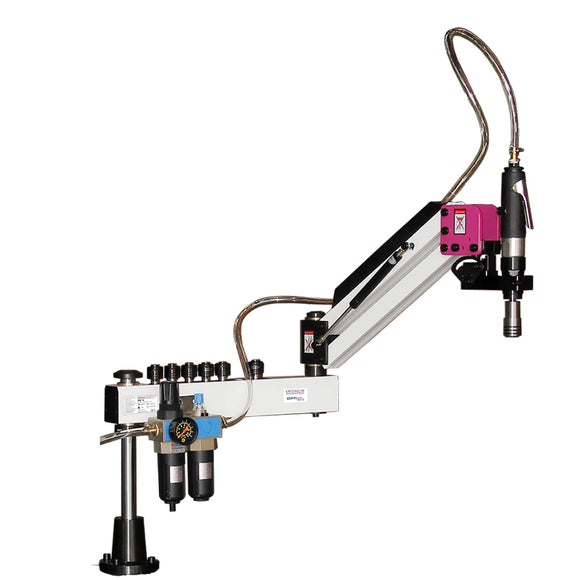

Pneumatic tapping machine OPTIdrill DGP 16.
  • For thread cutting in steel, stainless steel, aluminum and non-ferrous metals
  • High productivity, significant time savings compared to manual thread cutting
  • High cost-effectiveness due to low investment and maintenance costs
  • Flexible operation, multi-angle adjustable
  • Quick-clamping chuck
  • Air springs on both sides for a stable hold
  • Higher accuracy compared to manual tapping, thread is guaranteed to be right-angled (90°)
  • Includes swivel arm with large radius for easy positioning of the tap on the workpiece


.
  • Air consumption 110 l/min
  • Angle adjustment 0 - 90 °

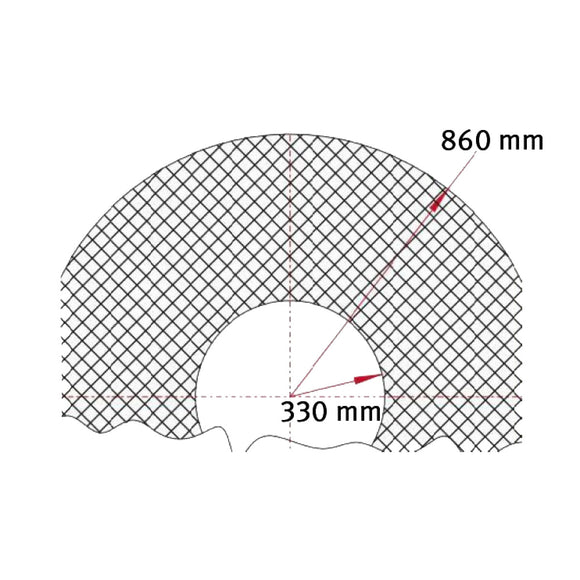

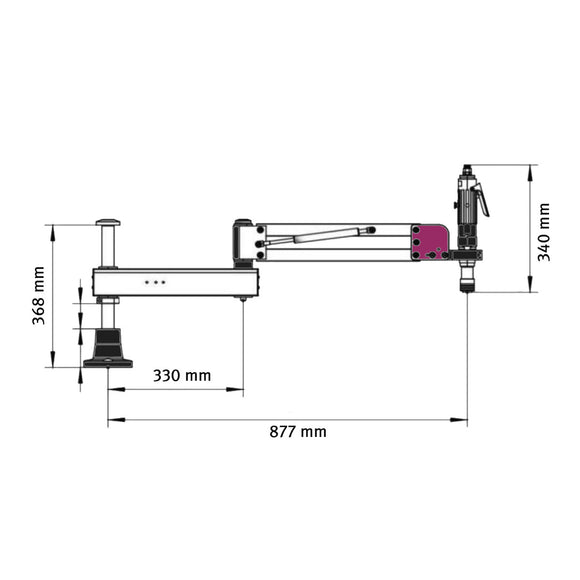

  • Cantilever radius 877 mm
  • Cutting direction Vertical / Horizontal
  • Max. speed 250 min¯¹
  • Net weight 22 kg
  • Operating pressure 6 - 8 bar
  • Tapped holes (400 N/mm²) M3 – M16
8-piece collets (M3 / M4 / M5-6/ M8 / M10 / M12 / M 14 / M 16)
