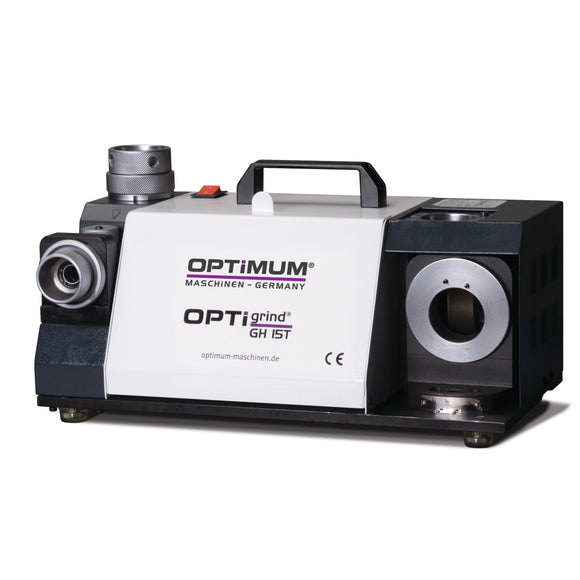

Optimum OPTIgrind GH 15T Drill Grinding Machine

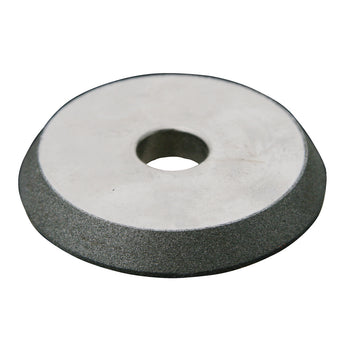

The Optimum OPTIgrind GH 15T is a 230 V drill grinding machine for regrinding double-edged twist drills from Ø 3 to 30 mm, with tip angles from 90° to 145°. A CBN grinding wheel and an adjusting aid hold the drill in the right position, so you can restore blunt drills quickly and accurately without prior experience. Workshops save money on new drills and avoid poor cutting caused by badly hand-ground tips. The delivery includes 6 ER 20 and 22 ER 40 collets, enough to cover the whole drill range straight away.

Key features

• Easy operation for precise, cost-effective grinding of double-edged twist drills
• Drill grinding that needs no previous experience: clean, fast and precise
• Grinding capacity for drills from Ø 3 to 30 mm
• Tip sharpening angle from 90° to 145°

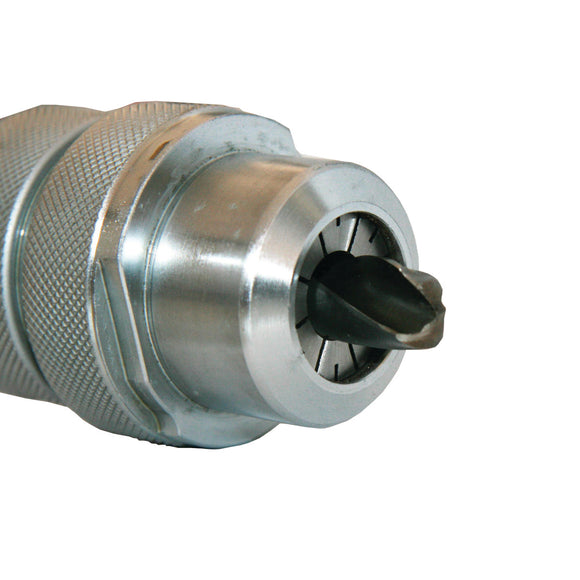

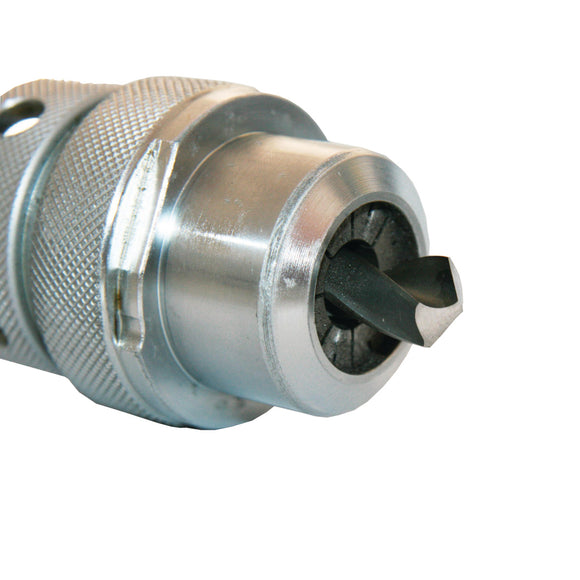

• Adjusting aid holds the drill’s cutting edges in a defined position in the collet holder
• Grinds the cutting edges with a short rotating movement of the collet holder, in a set order through the grinding openings
• Restores blunt, honed or worn drill tips quickly and easily

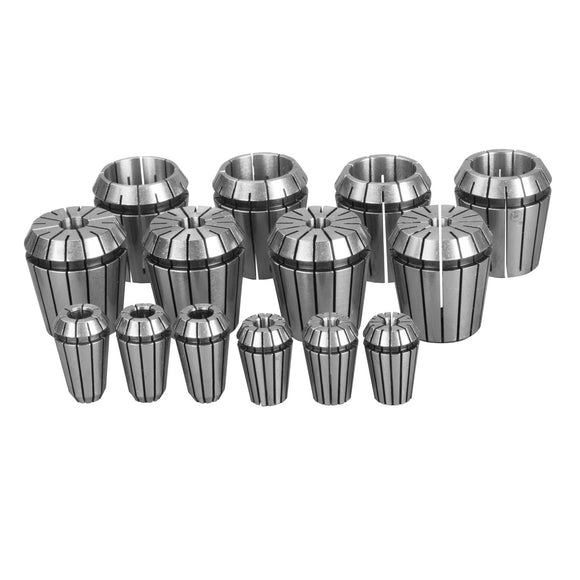

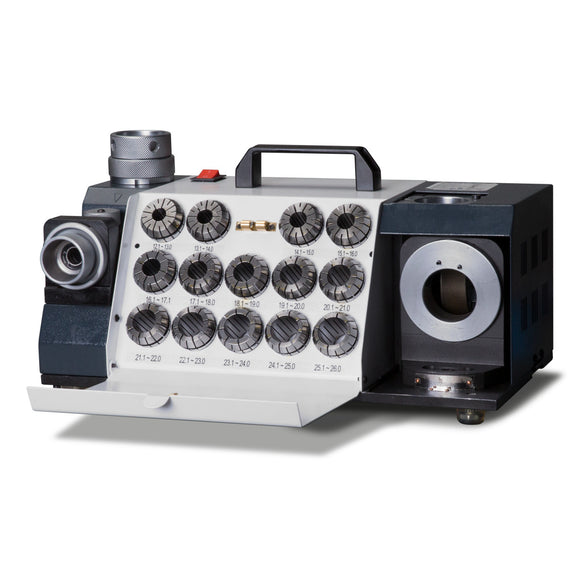

• Complete collet set stored inside the machine: 6 ER 20 collets (Ø 3 to 8 mm) and 22 ER 40 collets (Ø 8 to 30 mm)
• Easy to transport
