Tool grinding machine OPTIgrind GH 20 T-1
Tool grinding machine OPTIgrind GH 20 T-2
Tool grinding machine OPTIgrind GH 20 T-3
Tool grinding machine OPTIgrind GH 20 T-4
Tool grinding machine OPTIgrind GH 20 T-5
Tool grinding machine OPTIgrind GH 20 T-6
Tool grinding machine OPTIgrind GH 20 T-7
Tool grinding machine OPTIgrind GH 20 T-8
Tool grinding machine OPTIgrind GH 20 T-9
Tool grinding machine OPTIgrind GH 20 T-10

Tool grinding machine OPTIgrind GH 20 T

€1.216,47 EUR (€989,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3100125 Barcode: 4030635018626

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

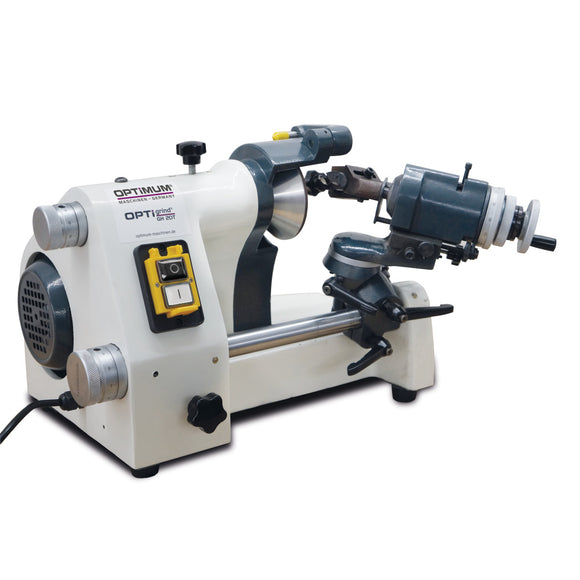

Tool grinding machine OPTIgrind GH 20 T.
  • Universal use thanks to versatile swivel and adjustment options
  • Many pan and adjustment options for making engraving stylus
    (cylindrical, centric, conical)
  • For grinding punches, twist drills, electrodes, turning tools, centering tips, etc.
  • High precision due to robust machine body and vibration-free driven precision grinding spindle
  • Easy handling and operation

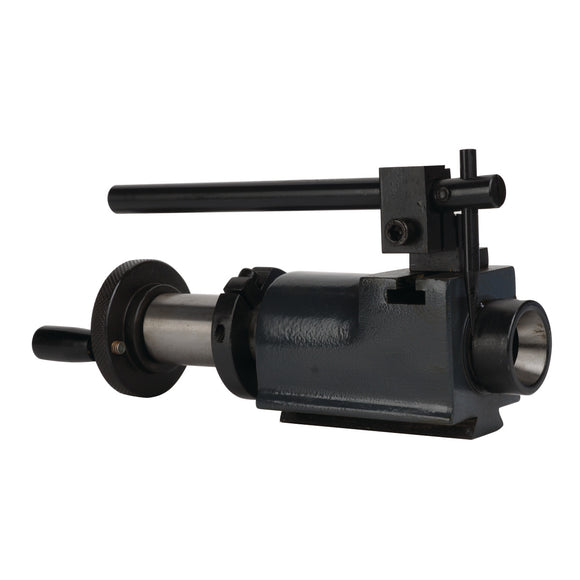

  • Index head with 24 locking positions
  • Adjustable puller
Note: CEKON plug is not part of the scope of delivery!

.
  • Adjustable angle horizontal/conical grinding 0 – 180 °
  • Adjustable angle negative 0 – 52 °
  • Adjustable angle vertical/rear side 0 – 40 °
  • Clamping jaw type 385E (5C), DIN 6341
  • Clamping range 1 – 12 mm
  • Frequency 50 Hz
  • Grinding disc speed 5000 min¯¹
  • Height 340 mm
  • Latching setting angle of rotation 22 x 15 / 180 °
  • Length 350 mm
  • Longitudinal fine adjustment 6 mm
  • Max. grinding speed 35 m/s
  • Motor power 0.37 kW
  • Net weight 45 kg
  • Speed motor 2750 min¯¹
  • Supply voltage 400 V
  • Tool holder fine adjustment 18 mm
  • Tool holder travel 140 mm
  • Width 450 mm

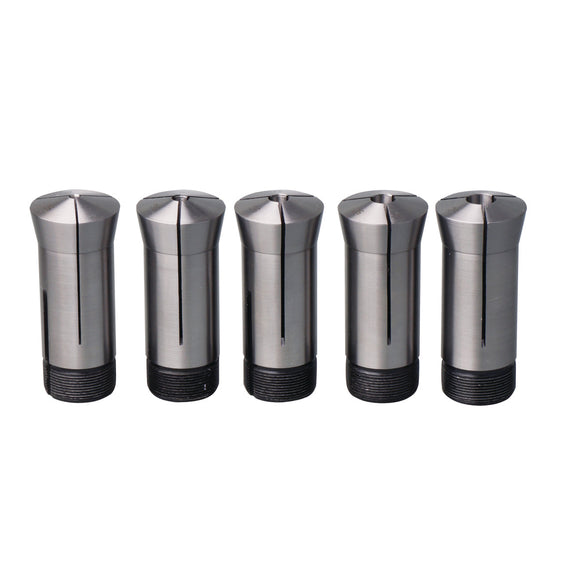

  • Collets 385E (5C) DIN 6341 Ø 37.5 mm; L = 89 mm; 20 °
  • Sizes Ø 4/6/8/10/12 mm

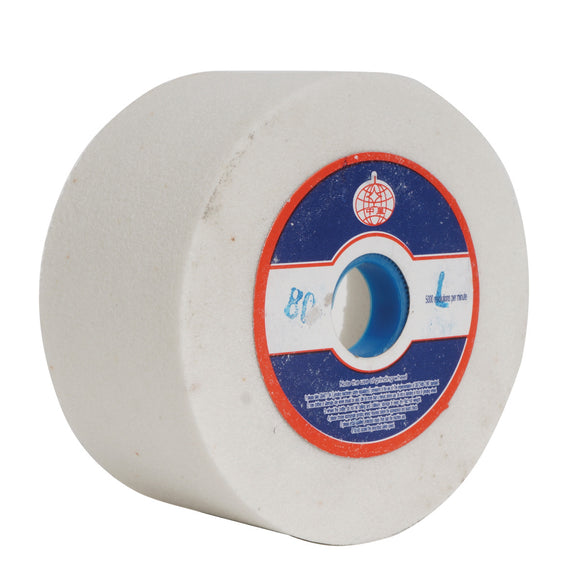

  • Corundum cup grinding wheel Ø 100 x 50 x Ø 20 mm
  • Diamond cup grinding wheel Ø 100 x 50 x Ø 20 mm (already assembled when delivered)

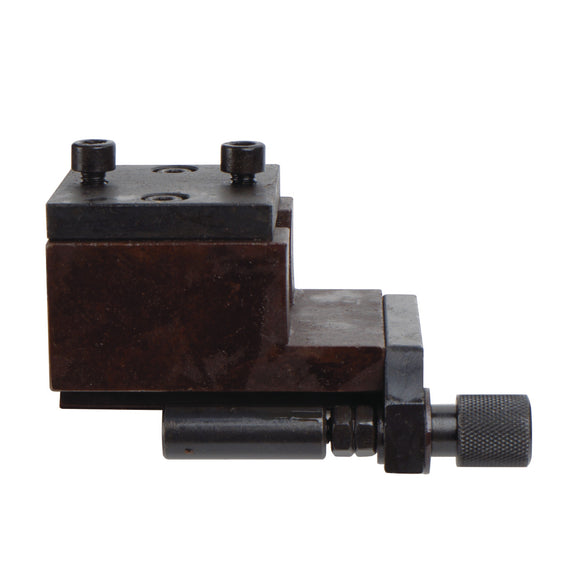

  • Apparatus for regrinding turning steels
  • Apparatus for regrinding end milling cutters

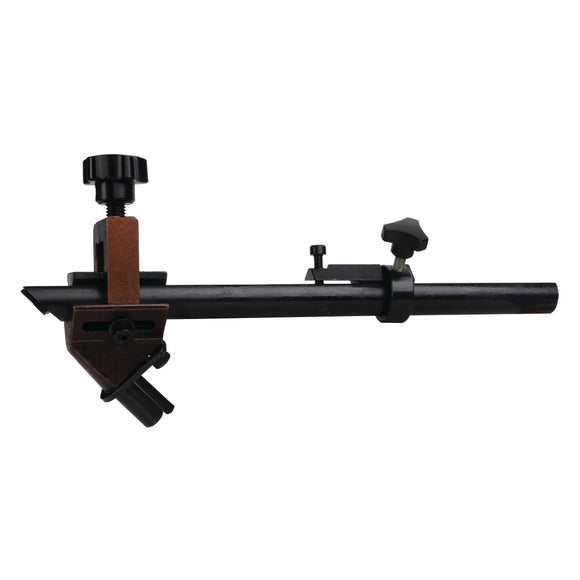

  • Apparatus for regrinding twist drills
  • operating tool

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
