Optimum Quantum DQ 13 bench drill with V-belt drive

€159,90 EUR

Tax includedShipping calculated at checkout

SKU: 3182000 Barcode: 4030635050053

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

In stock!

Contact us about this product

WhatsApp
Description Features Delivery contents Shipping

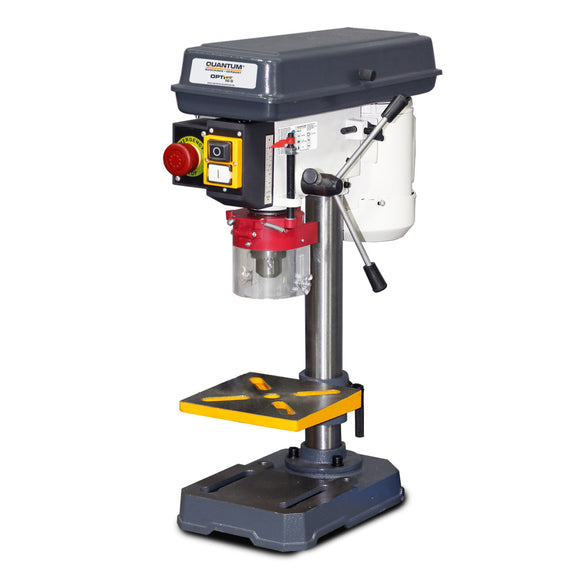

The Optimum Quantum DQ 13 is a compact bench drill with a V-belt drive, drilling up to 13 mm in steel. Its precision-bearing spindle with concentricity of 0.02 mm or better, five speeds and tiltable table give accurate, clean holes in different materials and at different angles, so you avoid off-centre holes, wandering bits and extra rework.

Key features

  • Guaranteed concentricity of 0.02 mm or better, measured in the drill spindle
  • Drill spindle with precision ball bearing
  • High-quality quick-action drill chuck
  • Large, height-adjustable chuck protection cover
  • Work table tiltable from +45° to -45°

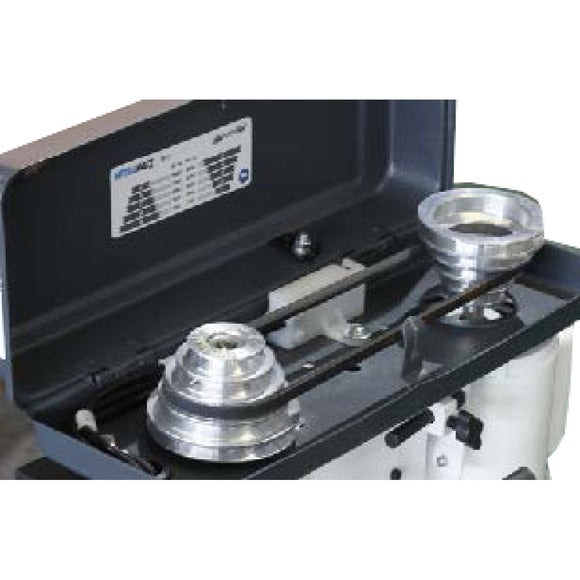

  • V-belt drive with five speeds
  • High practical performance for workshop use

Technical specifications

Drilling capacity

  • Drilling capacity in steel: 13 mm
  • Continuous drilling capacity in steel: 12 mm
  • Quill stroke: 50 mm
  • Reach: 105 mm
  • Column diameter: 46 mm
  • Spindle mount: B16

Speed and drive

  • Speed range: 620 - 2620 min⁻¹
  • Number of speeds: 5
  • Motor power: 0.35 kW
  • Supply voltage: 230 V, 50 Hz

Drilling table

  • Table tilt angle: ±45°
  • Table rotation: 360°
  • Table working area: 160 × 160 mm

Machine base

  • Base working area: 190 × 290 mm

Dimensions and weight

  • Length: 460 mm
  • Width: 340 mm
  • Height: 250 mm
  • Net weight: 15 kg
