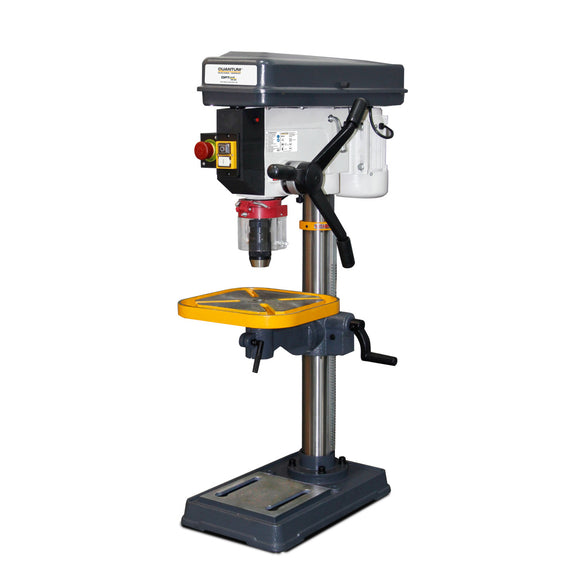

Optimum Quantum DQ 20 Bench Drill with V-Belt Drive

€455,10 EUR

Tax includedShipping calculated at checkout

SKU: 3182020 Barcode: 4030635050121

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

In stock!

Contact us about this product

WhatsApp
Description Features Delivery contents Shipping

The Optimum Quantum DQ 20 is a bench drill with a V-belt drive, drilling up to 20 mm in steel. Its 16 speeds from 180 to 2770 min⁻¹ cover everything from large-diameter holes in steel to small holes in softer materials. The precision-bearing spindle (concentricity of 0.02 mm or better) and tiltable table keep holes accurate and on-centre, so you avoid burnt bits, wandering holes and rework.

Key features

  • Guaranteed concentricity of 0.02 mm or better, measured in the drill spindle
  • Drill spindle with precision ball bearing
  • High-quality quick-action drill chuck
  • Large, height-adjustable chuck protection cover
  • Work table tiltable from +45° to -45°

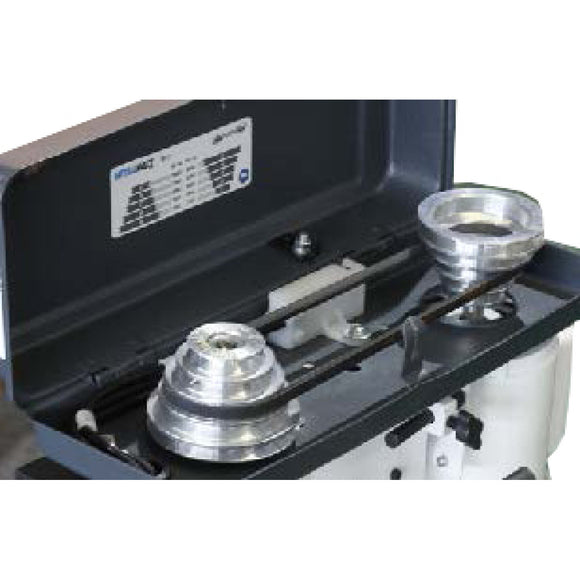

  • V-belt drive with 16 speeds
  • High practical performance for workshop use


Technical specifications

Drilling capacity

  • Drilling capacity in steel: 20 mm
  • Continuous drilling capacity in steel: 16 mm
  • Quill stroke: 85 mm
  • Reach: 180 mm
  • Column diameter: 72 mm
  • Spindle mount: MT 2

Speed and drive

  • Speed range: 180 - 2770 min⁻¹
  • Number of speeds: 16
  • Motor power: 0.55 kW
  • Supply voltage: 230 V, 50 Hz

Drilling table

  • Table tilt angle: ±45°
  • Table rotation: 360°
  • Table working area: 290 × 290 mm

Machine base

  • Base working area: 460 × 270 mm

Dimensions and weight

  • Length: 810 mm
  • Width: 490 mm
  • Height: 270 mm
  • Net weight: 50 kg

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Down device Table groove 14 mm / M 12 Down device Table groove 14 mm / M 12 - 0

Down device Table groove 14 mm / M 12

Optimum

€100,86 EUR
Coolant hoses with magnetic base KMS 2 Coolant hoses with magnetic base KMS 2 - 0

Coolant hoses with magnetic base KMS 2

Optimum

€70,11 EUR
Cooling lubricant nebulizer MMC1 Cooling lubricant nebulizer MMC1 - 0

Cooling lubricant nebulizer MMC1

Optimum

€206,64 EUR
View Product
Keyless drill chuck DKC13 0-13 mm Keyless drill chuck DKC13 0-13 mm - 0

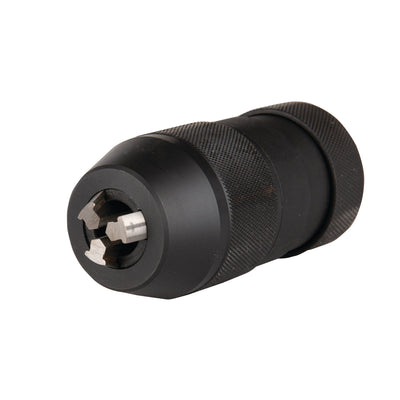

Keyless drill chuck DKC13 0-13 mm
