Optimum Quantum DQ 31 upright drill (230 V)

€1.031,97 EUR

Tax includedShipping calculated at checkout

SKU: 3182050 Barcode: 4030635050152

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

In stock!

Contact us about this product

WhatsApp
Description Features Delivery contents Shipping

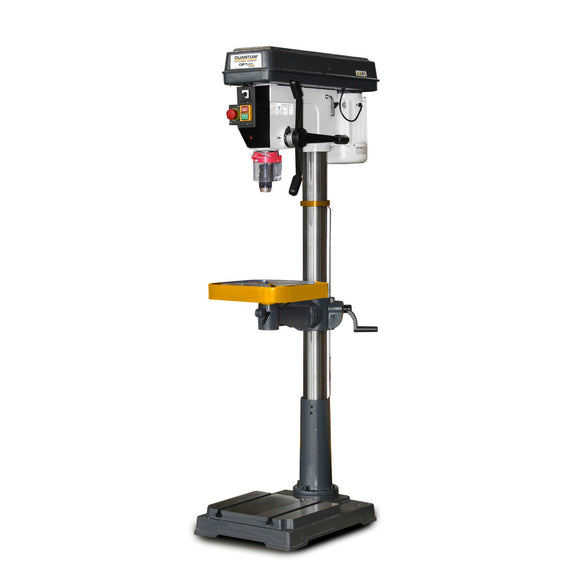

Optimum Quantum DQ 31 upright drill (230 V)

The Optimum Quantum DQ 31 is a 230 V upright drill with a drilling capacity of up to 32 mm in steel and an MT 4 spindle. Its twelve speeds from 150 to 2450 min⁻¹ and 1.5 kW motor let you drill large holes in steel and smaller ones in softer materials, while the precision-bearing spindle (concentricity of 0.02 mm or better) and the large, tiltable table keep holes accurate and workpieces secure.

Key features

  • Guaranteed concentricity of 0.02 mm or better, measured in the drill spindle
  • Drill spindle with precision ball bearing
  • High-quality quick-action drill chuck
  • Height-adjustable chuck protection cover
  • Work table tiltable from +45° to -45°
  • 12 speeds with manual speed control
  • High practical performance for workshop use

Technical specifications

Drilling capacity

  • Drilling capacity in steel: 32 mm
  • Continuous drilling capacity in steel: 28 mm
  • Quill stroke: 120 mm
  • Reach: 225 mm
  • Column diameter: 92 mm
  • Spindle mount: MT 4

Speed and drive

  • Speed range: 150 - 2450 min⁻¹
  • Number of speeds: 12
  • Speed control: manual
  • Motor power: 1.5 kW
  • Supply voltage: 230 V, 50 Hz

Drilling table

  • Table tilt angle: ±45°
  • Table rotation: 360°
  • Table working area: 360 × 360 mm

Machine base

  • Base working area: 575 × 425 mm

Dimensions and weight

  • Length: 1415 mm
  • Width: 650 mm
  • Height: 305 mm
  • Net weight: 115 kg
  • Quick-action drill chuck
