Bench drill OPTIdrill DQ 14-1
Bench drill OPTIdrill DQ 14-2
Bench drill OPTIdrill DQ 14-3
Bench drill OPTIdrill DQ 14-4
Bench drill OPTIdrill DQ 14-5
Bench drill OPTIdrill DQ 14-6
Bench drill OPTIdrill DQ 14-7
Bench drill OPTIdrill DQ 14-8

Bench drill OPTIdrill DQ 14

€252,15 EUR (€205,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3191040 Barcode: 4030635042331

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

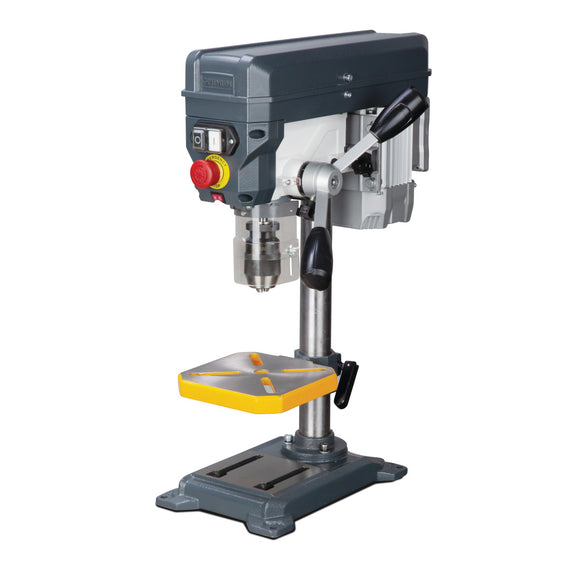

Bench drill OPTIdrill DQ 14.
  • Separate emergency stop stop switch
  • Measurement scale for drilling depth

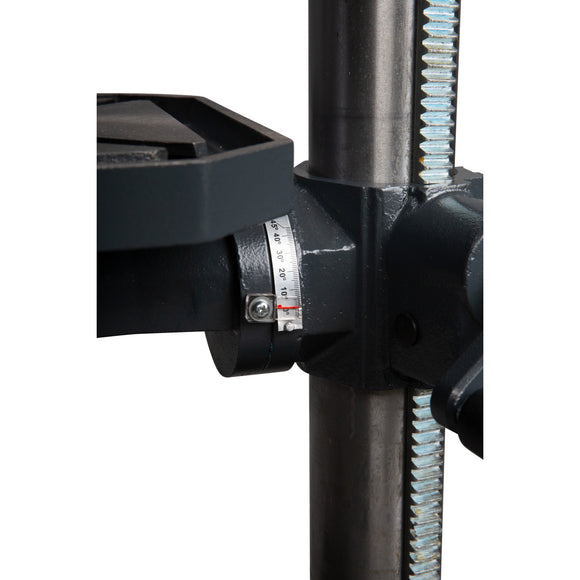

  • Drilling table ± 45° inclinable and 360° rotatable

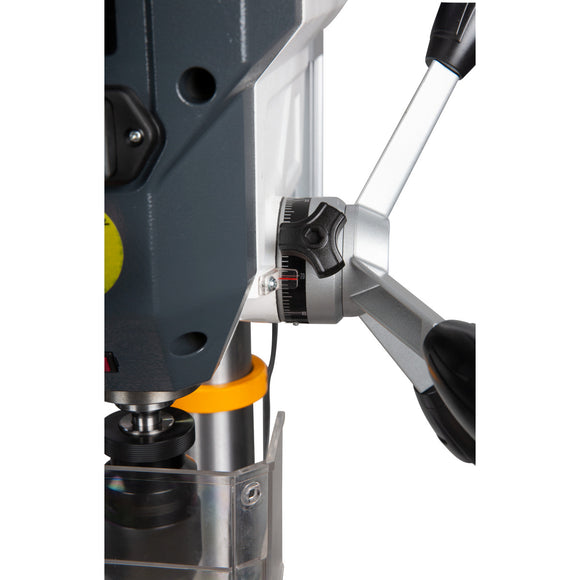

  • One-piece die-cast aluminium quill lever with soft-grip handles
  • Prezision spindle drilling
  • Safety electrics in 24 V DC voltage
  • Guaranteed concentricity accuracy of less than 0. 03 mm measured in the drilling sleeve

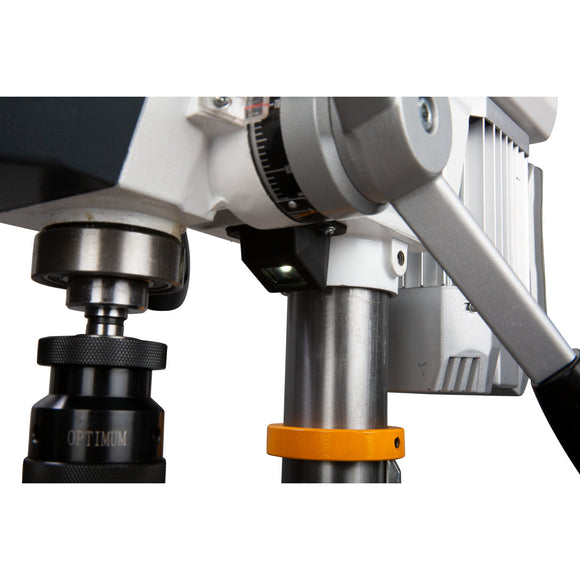

  • Drilling spindle with preprecision ball bearings
  • High-quality quick-action drill chuck

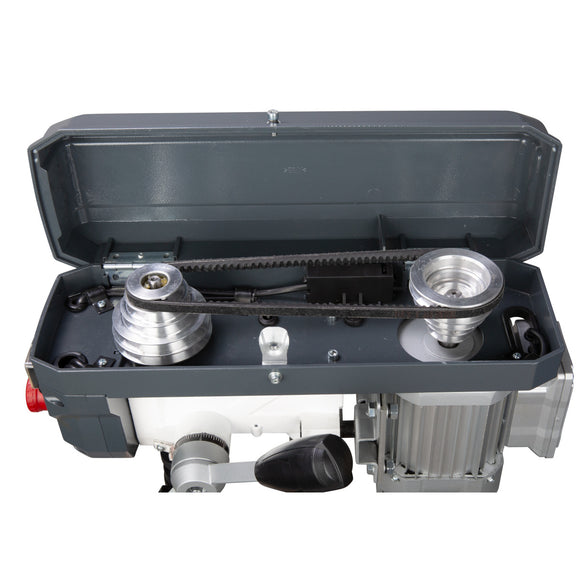

  • GATES quality belt
  • Largely dimensioned base plate with T-slots, heavily ribbed on the rear side


.
  • 700 - 2500 min¯¹
  • Column diameter 46 mm
  • Continuous drilling performance (steel) 12 mm
  • Drilling performance (steel) 13 mm
  • Drilling table angle 45 °
  • Drilling table load bearing capacity 8 kg
  • Drilling table rotation 360 °
  • Drilling table workspace length 170 mm
  • Drilling table workspace width 170 mm
  • Frequency 50 Hz
  • Height 634 mm
  • Length 472 mm
  • Machine base workspace length 138 mm
  • Machine base workspace width 128 mm
  • Motor power 0.35 kW
  • Net weight 18,5 kg
  • Number of gears 5 Steps
  • Quill stroke 52 mm
  • Reach 104 mm
  • Spindle chuck solid/B16
  • Supply voltage 230 V
  • Width 283 mm
  • Quick action drill chuck 1 - 15.9 mm
  • T-nuts

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Cooling lubricant nebulizer MMC1 Cooling lubricant nebulizer MMC1 - 0

Cooling lubricant nebulizer MMC1

Optimum

€206,64 EUR
Enquire
Workplace mat 1840 x 640 mm Workplace mat 1840 x 640 mm - 0

Workplace mat 1840 x 640 mm

Unicraft

€244,77 EUR
Twist Drill Set 25 pieces, 1 - 13 mm Twist Drill Set 25 pieces, 1 - 13 mm - 0

Twist Drill Set 25 pieces, 1 - 13 mm

Optimum

€113,16 EUR

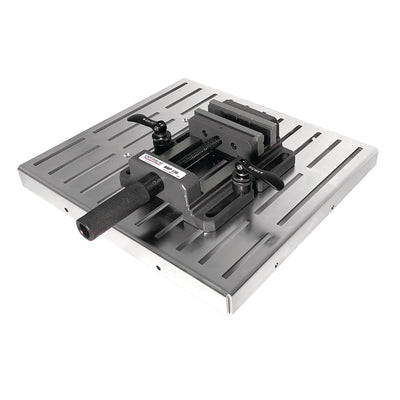

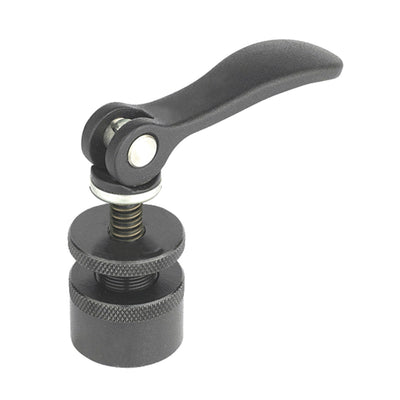

Stop and clamping element Ø 30 / 14 – 26 mm Stop and clamping element Ø 30 / 14 – 26 mm - 0
