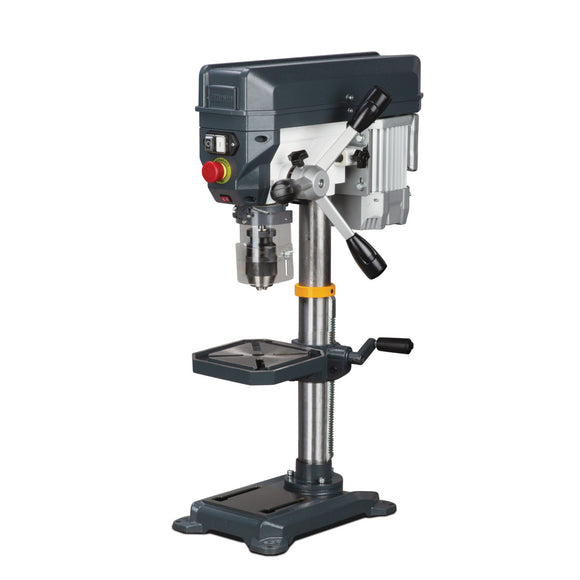

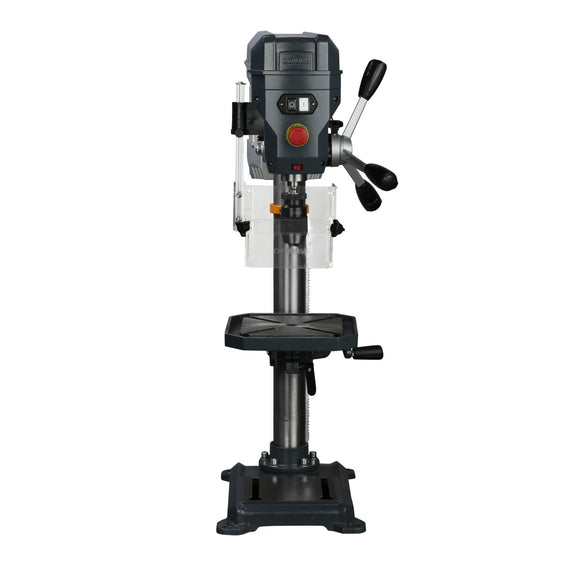

Optimum OPTIdrill DQ 18 bench drill

€453,87 EUR

Tax includedShipping calculated at checkout

SKU: 3191042 Barcode: 4030635042348

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

In stock!

Contact us about this product

WhatsApp
Description Features Delivery contents Shipping

The Optimum OPTIdrill DQ 18 is a bench drill with 24 V DC safety electronics, a separate emergency stop and a tiltable, rotating drilling table with T-slots. Its precision spindle with concentricity under 0.03 mm and rigid ribbed base plate give accurate holes in different materials and at different angles, while the cooling trough and depth scale help you drill repeatable holes without clamping problems or depth errors.

Key features

  • Separate emergency stop switch
  • Safety electrics with 24 V DC voltage

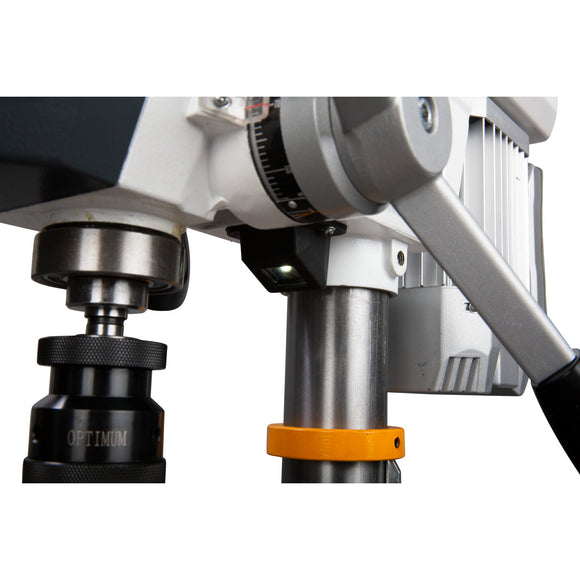

  • Precision drilling spindle with precision ball bearings
  • Guaranteed concentricity of less than 0.03 mm, measured in the drilling sleeve

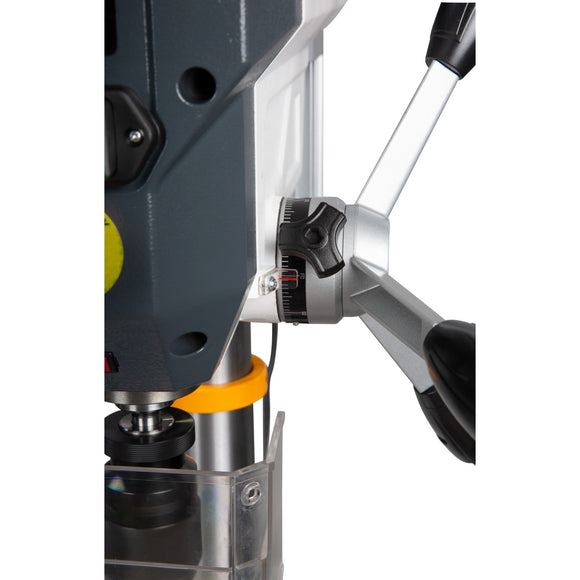

  • Measurement scale for drilling depth
  • Precisely machined, stable drilling table with diagonal T-slots and a circumferential cooling water trough

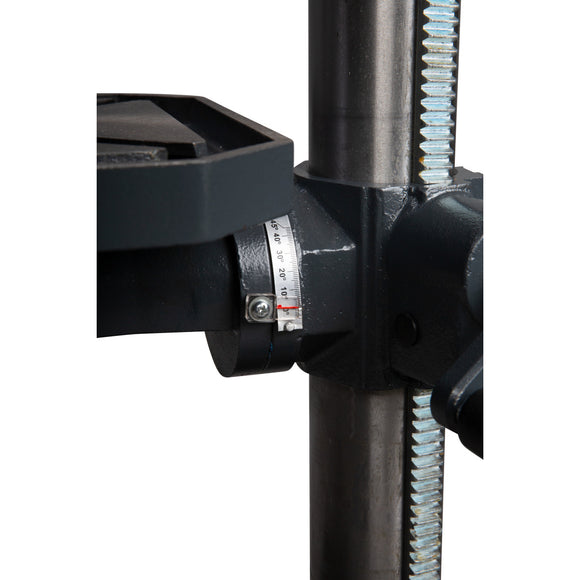

  • Drilling table inclinable ±45° and rotatable 360°
  • One-piece die-cast aluminium quill lever with soft-grip handles
  • High-quality quick-action drill chuck

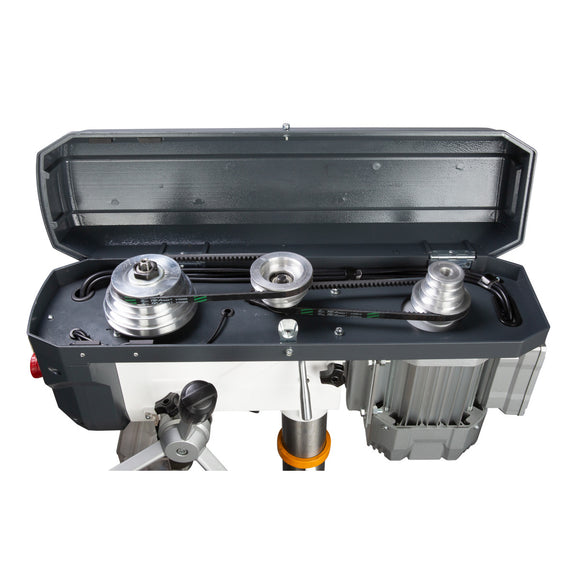

  • GATES quality belt
  • Large base plate with T-slots, heavily ribbed on the rear side

Technical specifications

Drilling capacity

  • Drilling capacity in steel: 15.9 mm
  • Continuous drilling capacity in steel: 14 mm
  • Quill stroke: 65 mm
  • Reach: 127 mm
  • Column diameter: 60 mm
  • Spindle mount: MT 2

Speed and drive

  • Speed range: 600 - 2400 min⁻¹
  • Number of speeds: 5
  • Motor power: 0.45 kW
  • Supply voltage: 230 V, 50 Hz

Drilling table

  • Table tilt angle: ±45°
  • Table rotation: 360°
  • Table working area: 200 × 200 mm
  • Table load capacity: 12 kg

Machine base

  • Base working area: 145 × 143 mm

Dimensions and weight

  • Length: 568 mm
  • Width: 319 mm
  • Height: 849 mm
  • Net weight: 28.5 kg
  • Quick action drill chuck 1 - 16 mm
  • Morse taper MK 2/B16
  • T-nuts

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
