Bench drill OPTIdrill DQ 22 (230V)

€613,77 EUR (€499,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3191044 Barcode: 4030635042355

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Only 3 in stock!
Description Features Delivery contents Shipping

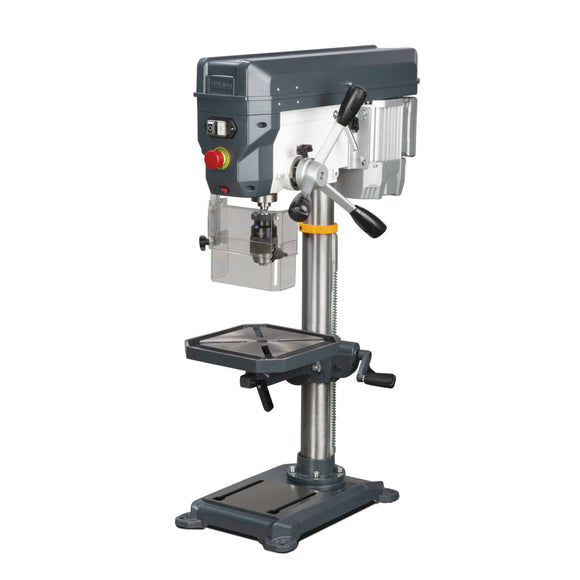

Bench drill OPTIdrill DQ 22 (230V).
  • Separate emergency stop stop switch
  • Drill depth stop
  • Precisely machined, stable drilling table with diagonally running T-slots and circumferential cooling water trough

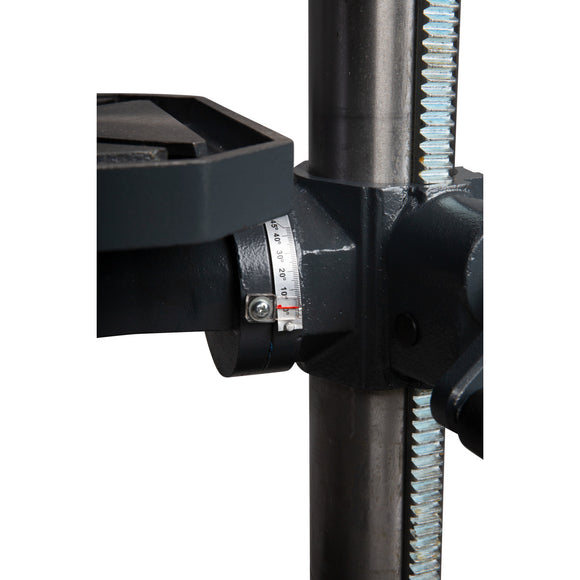

  • Drilling table ± 45° inclinable and 360° rotatable

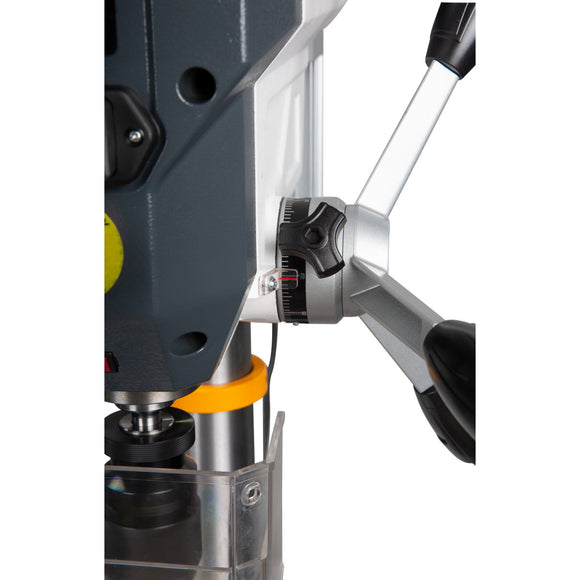

  • One-piece die-cast aluminium quill lever with soft-grip handles
  • Prezision spindle drilling
  • Safety electrics in 24 V DC voltage
  • Guaranteed concentricity accuracy of less than 0. 03 mm measured in the drilling sleeve
  • Drilling spindle with preprecision ball bearings

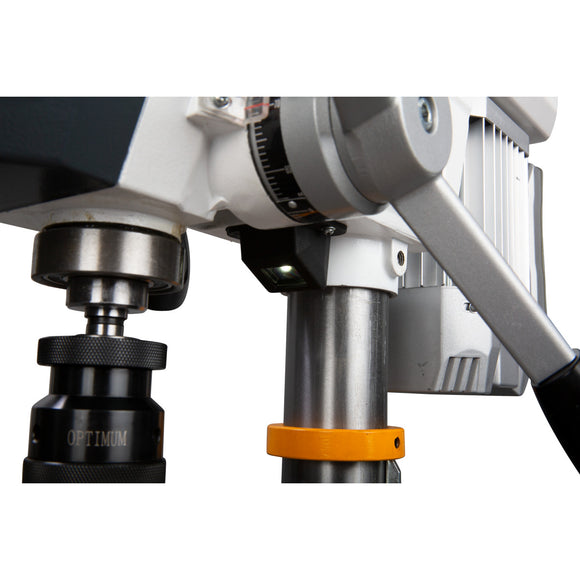

  • High-quality quick-action drill chuck

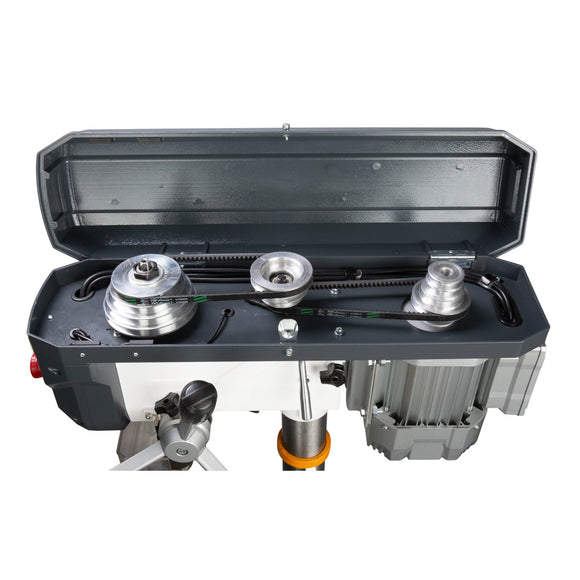

  • GATES quality belt
  • Largely dimensioned base plate with T-slots, heavily ribbed on the rear side
  • Largely dimensioned, height-adjustable protective screen with


.
  • 300 - 2300 min¯¹
  • Column diameter 70 mm
  • Continuous drilling performance (steel) 16 mm
  • Drilling performance (steel) 20 mm
  • Drilling table angle 45 °
  • Drilling table load bearing capacity 15 kg
  • Drilling table rotation 360 °
  • Drilling table workspace length 270 mm
  • Drilling table workspace width 270 mm
  • Frequency 50 Hz
  • Height 1006 mm
  • Length 700 mm
  • Machine base workspace length 191 mm
  • Machine base workspace width 187 mm
  • Motor power 0.55 kW
  • Net weight 41,7 kg
  • Number of gears 12 Steps
  • Quill stroke 85 mm
  • Reach 169 mm
  • Spindle chuck MT 2
  • Supply voltage 230 V
  • Width 351 mm
  • Quick action drill chuck 1 - 16 mm
  • Morse taper MK 2/B16
  • T-nuts

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Machine vice BMP 100 Machine vice BMP 100 - 0

Machine vice BMP 100

Optimum

€71,34 EUR
Down device Table groove 14 mm / M 12 Down device Table groove 14 mm / M 12 - 0

Down device Table groove 14 mm / M 12

Optimum

€100,86 EUR
Countersink set HSS, 6 pieces Countersink set HSS, 6 pieces - 0

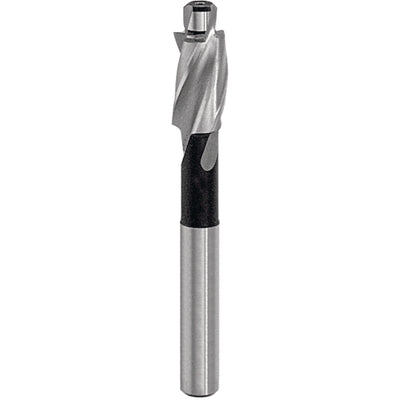

Countersink set HSS, 6 pieces

Optimum

€99,63 EUR
Enquire
Twist Drill Set 41-piece, 6 - 10 mm (0.1 mm rising) Twist Drill Set 41-piece, 6 - 10 mm (0.1 mm rising) - 0

Twist Drill Set 41-piece, 6 - 10 mm (0.1 mm rising)

Optimum

€146,37 EUR
Machine vice BME 100 Machine vice BME 100 - 0

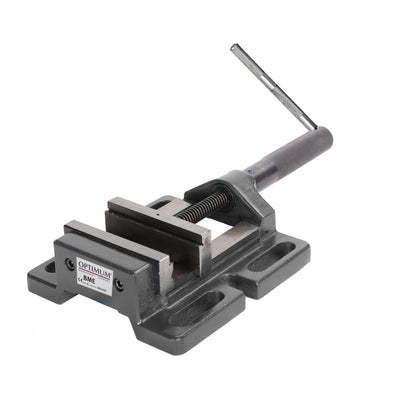

Machine vice BME 100
