Bench drill OPTIdrill DQ 22 (400V)

€658,05 EUR (€535,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3191045 Barcode: 4030635042362

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

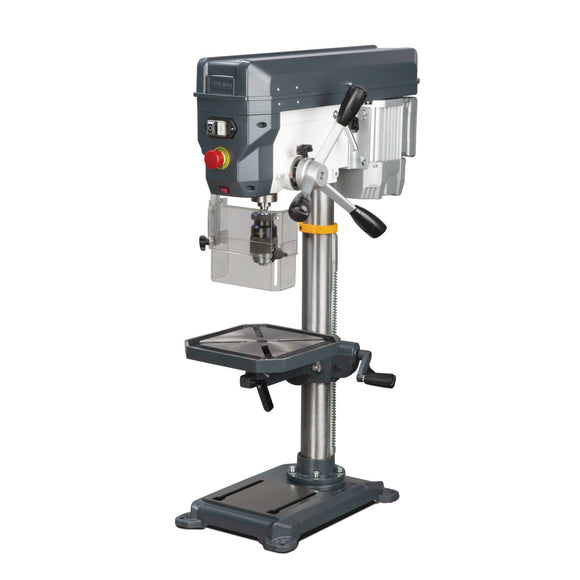

Bench drill OPTIdrill DQ 22 (400V).
  • Separate emergency stop stop switch

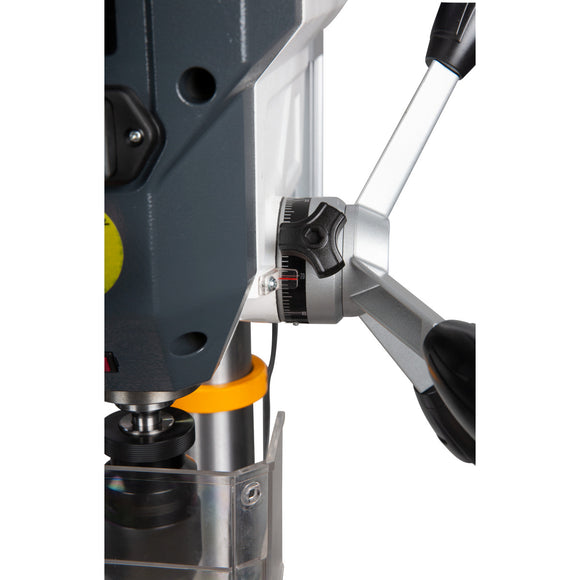

  • Measurement scale for drilling depth
  • Precisely machined, stable drilling table with diagonally running T-slots and circumferential cooling water trough

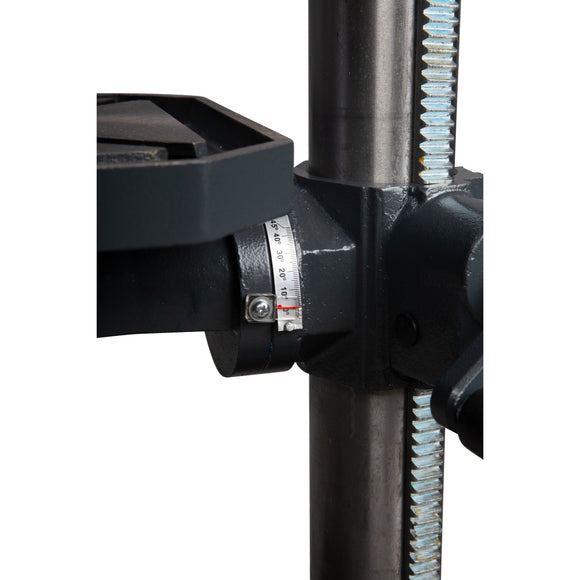

  • Drilling table ± 45° inclinable and 360° rotatable
  • One-piece die-cast aluminium quill lever with soft-grip handles
  • Prezision spindle drilling
  • Safety electrics in 24 V DC voltage
  • Guaranteed concentricity accuracy of less than 0. 03 mm measured in the drilling sleeve
  • Drilling spindle with preprecision ball bearings

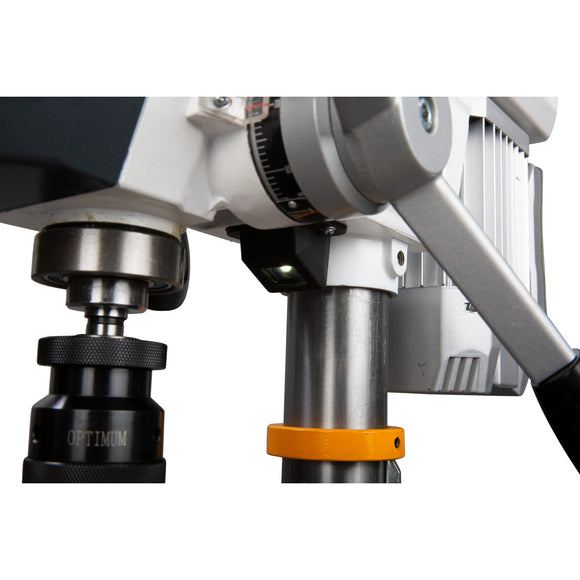

  • High-quality quick-action drill chuck

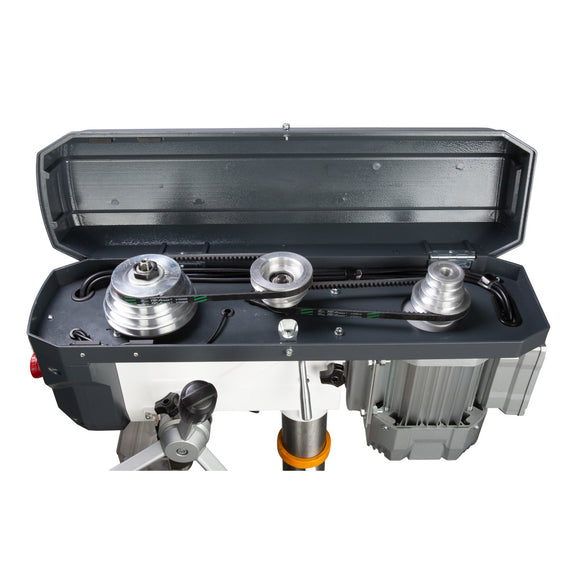

  • GATES quality belt
  • Largely dimensioned base plate with T-slots, heavily ribbed on the rear side
  • Largely dimensioned, height-adjustable protective screen with
  • Right/left rotation


.
  • 300 - 2300 min¯¹
  • Column diameter 70 mm
  • Continuous drilling performance (steel) 16 mm
  • Drilling performance (steel) 20 mm
  • Drilling table angle 45 °
  • Drilling table load bearing capacity 15 kg
  • Drilling table rotation 360 °
  • Drilling table workspace length 270 mm
  • Drilling table workspace width 270 mm
  • Frequency 50 Hz
  • Height 1006 mm
  • Length 700 mm
  • Machine base workspace length 191 mm
  • Machine base workspace width 187 mm
  • Motor power 0.55 kW
  • Net weight 41,7 kg
  • Number of gears 12 Steps
  • Quill stroke 85 mm
  • Reach 169 mm
  • Spindle chuck MT 2
  • Supply voltage 400 V
  • Width 351 mm
  • Quick action drill chuck 1 - 16 mm
  • Morse taper MK 2/B16
  • T-nuts
