Miter band saw OPTIsaw SQ-V13 media thumbnails
Miter band saw OPTIsaw SQ-V13-1
Miter band saw OPTIsaw SQ-V13-2
Miter band saw OPTIsaw SQ-V13-3
Miter band saw OPTIsaw SQ-V13-4
Miter band saw OPTIsaw SQ-V13-5
Miter band saw OPTIsaw SQ-V13-6

Miter band saw OPTIsaw SQ-V13

€453,87 EUR (€369,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3194013 Barcode: 4030635043918

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out

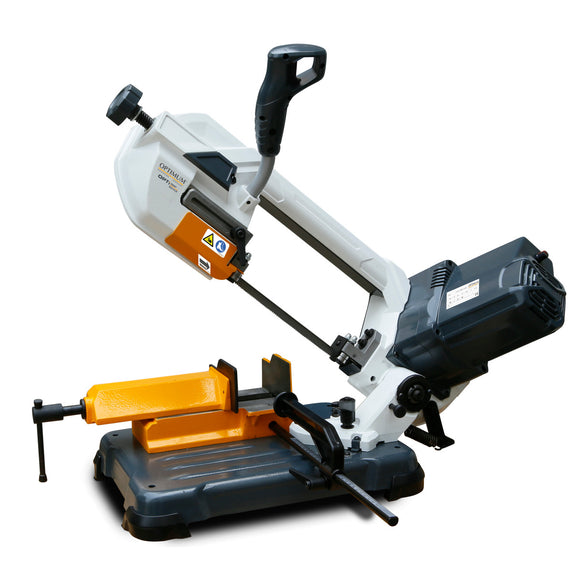

Miter band saw OPTIsaw SQ-V13.
  • In series with high-quality bi-metal saw blade
  • Adjustable material stop for series work

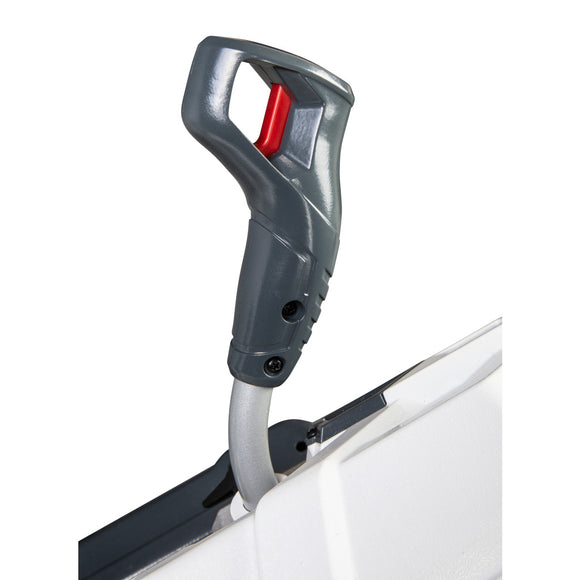

  • Push button on the lever arm for saw blade run switches the run of the saw blade on and offbelt on and off
  • bottom plate with non-slip feet
  • saw bow can be swivelled from 0° to +60° to allow angular saw cuts


.
  • Cutting angle from to 0 - 60 °
  • Cutting range +45° rectangular horiz. (solid material) 85 x 85 mm
  • Cutting range +45° round (full material) 85 mm
  • Cutting range +45° square (solid material) 85 mm
  • Cutting range +60° rectangular horiz. (solid material) 50 x 50 mm
  • Cutting range +60° round (solid material) 50 mm
  • Cutting range +60° square (solid material) 50 mm
  • Cutting range 0° rectangular lying (solid material) 125 x 125 mm
  • Cutting range 0° round (solid material) 125 mm
  • Cutting range 0° square (solid material) 125 mm
  • Frequency 50 Hz
  • Height 420 mm
  • Height max. 640 mm
  • Length 670 mm
  • Length max. 795 mm
  • Max. width/depth approx.. 613 mm
  • Motor power 0.4 kW
  • Net weight 23,3 kg
  • Saw band length 1440 mm
  • Saw band speed(s) 30 – 80 m/min
  • Saw band thickness 0,6 mm
  • Saw band width 12,5 mm
  • Supply voltage 230 V
  • Width 382 mm
  • material stop

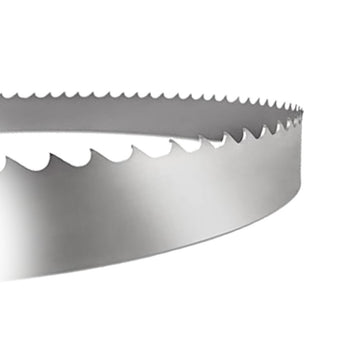

  • bi-metal saw blade
