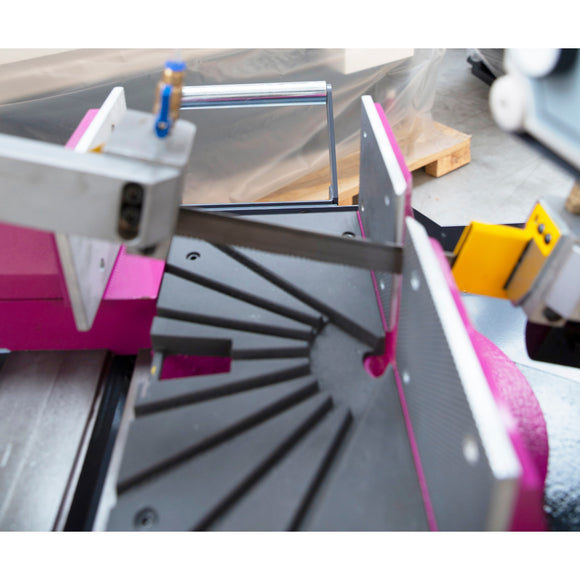

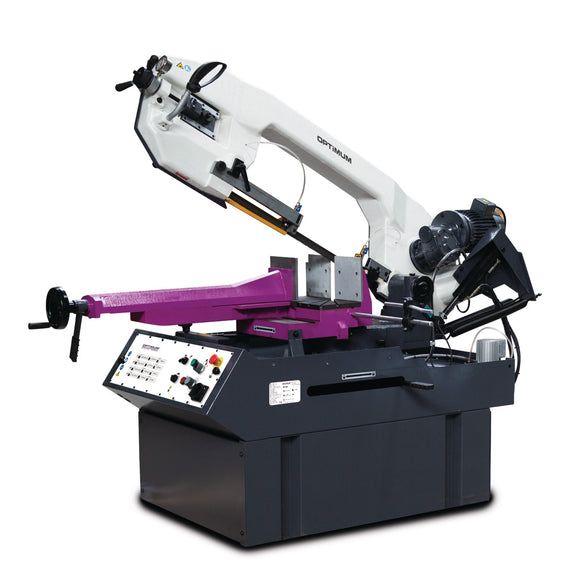

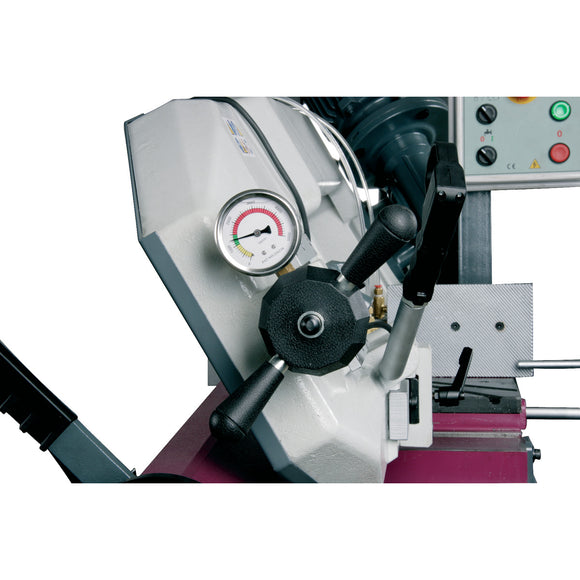

Optimum OPTIsaw SD 500 double mitre metal band saw

Technical specifications

Maximum cutting capacity at 0°

• Round, solid material: 355 mm
• Square, solid material: 280 mm
• Rectangular, solid material (upright): 280 × 490 mm

Maximum cutting capacity at 45°

• Round, solid material: 355 mm
• Square, solid material: 280 mm
• Rectangular, solid material (upright): 280 × 340 mm

Maximum cutting capacity at 60°

• Round, solid material: 230 mm
• Square, solid material: 180 mm
• Rectangular, solid material (upright): 180 × 220 mm

Drive and electrical

• Supply voltage: 400 V, 50 Hz
• Motor power: 2.2 kW
• Coolant pump motor power: 0.1 kW
• Total connected load: 3.8 kW

Saw band

• Cutting angle: -45° to 60°
• Saw band speeds: 35 / 70 m/min
• Saw band dimensions: 3770 × 34 × 1.1 mm
• Saw bow lifting: manual

Dimensions and weight

• Length: 2122 mm
• Width: 1046 mm
• Height: 1497 mm
• Net weight: 552 kg

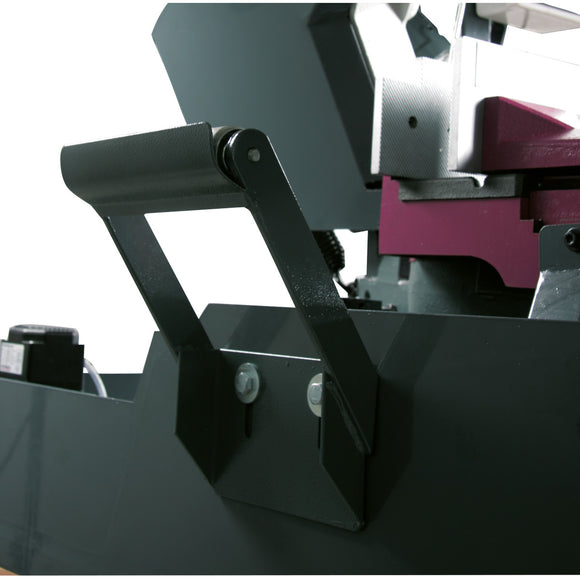

• Material stop
• Bi-metal saw band 4-6 ZpZ M42
• Machine substructure
• Coolant pump
