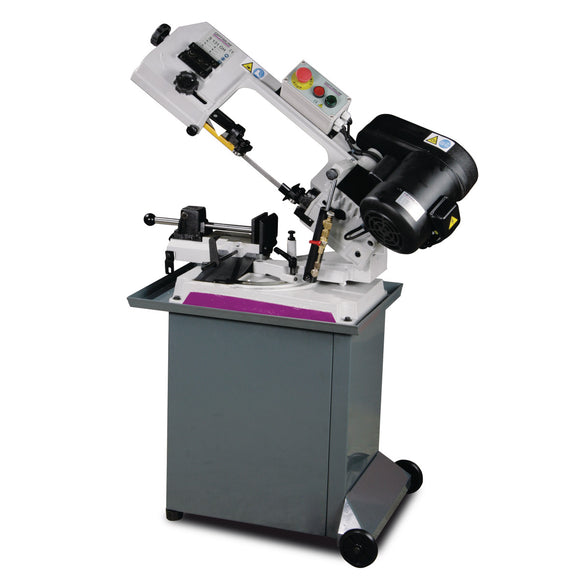

The Optimum OPTIsaw S 131GH is a metal band saw with a safety-focused design: low-voltage 24 V electronics, a separate emergency stop and cover interlocks that cut the power when the belt or saw band cover is opened. Its three speed levels, quick-action vice and adjustable material stop let you cut different materials and repeat parts quickly, with less risk when changing blades or adjusting the machine.

Key features

  • Low-voltage 24 V electronics for safer operation
  • Separate emergency stop impact switch
  • Circuit breakers on the belt cover and the saw band cover
  • Quiet running
  • Three speed levels for a wide range of materials
  • Powerful belt drive
  • Ball bearing saw band guide for accurate cuts
  • Micro switch for an automatic limit stop at the end of the cut

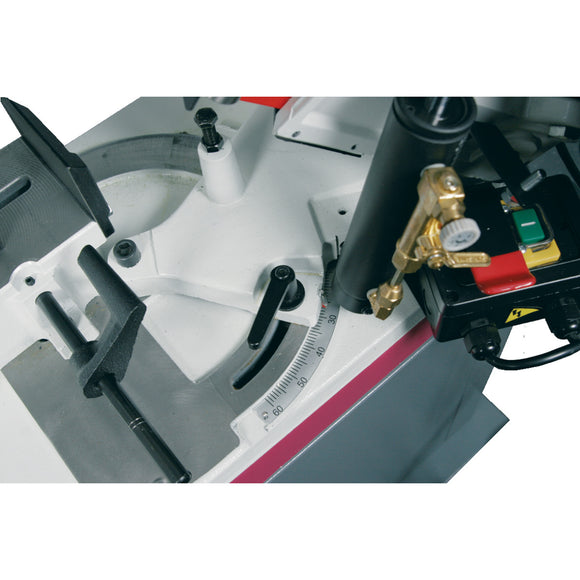

  • Easy-to-read scale for angle adjustment
  • Quick-action vice for fast workpiece clamping
  • Adjustable material stop for repeat cuts and serial work
  • Saw band tension adjusted at the front with a handwheel

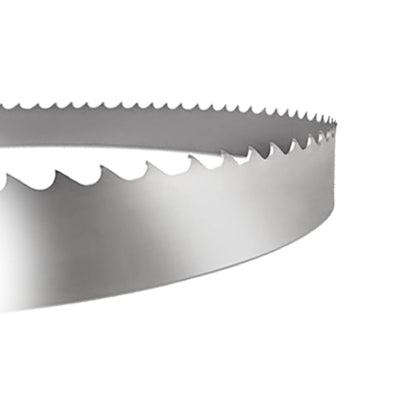

  • High-quality bi-metal saw band included as standard
  • Mobile machine base, so the saw can be moved around the workshop

Technical specifications

Maximum cutting capacity at 0°

  • Round, solid material: 128 mm
  • Square, solid material: 128 mm
  • Rectangular, solid material (lying): 160 × 145 mm

Maximum cutting capacity at 45°

  • Round, solid material: 90 mm
  • Square, solid material: 85 mm
  • Rectangular, solid material (horizontal): 85 × 95 mm

Drive and electrical

  • Supply voltage: 230 V, 50 Hz
  • Motor power: 1.1 kW

Saw band

  • Cutting angle: -45° to 60°
  • Saw band speeds: 22 / 31 / 55 m/min
  • Saw band dimensions: 1638 × 13 × 0.65 mm
  • Saw bow lifting: manual

Dimensions and weight

  • Length: 965 mm
  • Maximum length: 1085 mm
  • Width: 498 mm
  • Height: 978 mm
  • Maximum height: 1300 mm
  • Net weight: 78 kg
  • Material stop
  • Bi-metal saw band
  • Machine base
