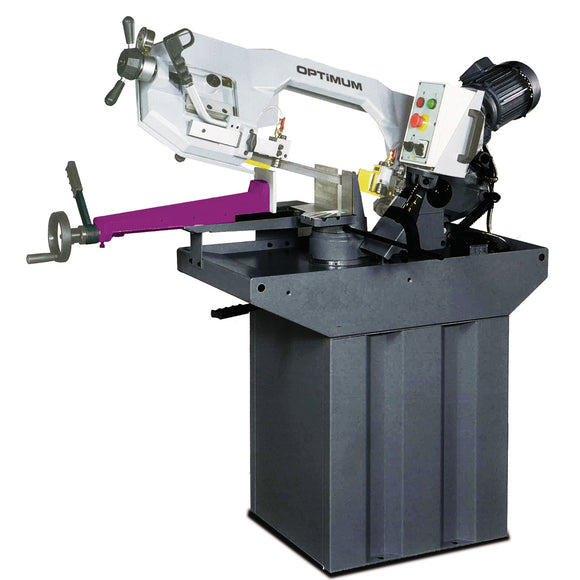

Optimum OPTIsaw S 275N Metal Band Saw

Technical specifications

Maximum cutting capacity at 0°

• Round, solid material: 225 mm
• Square, solid material: 190 mm
• Rectangular, solid material (lying): 150 × 245 mm

Maximum cutting capacity at 45°

• Round, solid material: 145 mm
• Square, solid material: 150 mm
• Rectangular, solid material (horizontal): 190 × 150 mm

Maximum cutting capacity at 60°

• Round, solid material: 90 mm
• Square, solid material: 90 mm
• Rectangular, solid material (horizontal): 120 × 90 mm

Drive and electrical

• Supply voltage: 400 V, 50 Hz
• Motor power: 1.1 kW
• Coolant pump motor power: 0.09 kW

Saw band

• Cutting angle: 0° to 60°
• Saw band speeds: 45 / 90 m/min
• Saw band dimensions: 2480 × 27 × 0.9 mm
• Saw bow lifting: manual

Dimensions and weight

• Length: 1400 mm
• Width: 685 mm
• Maximum height: 1700 mm
• Maximum width/depth: approx. 985 mm
• Net weight: 185 kg

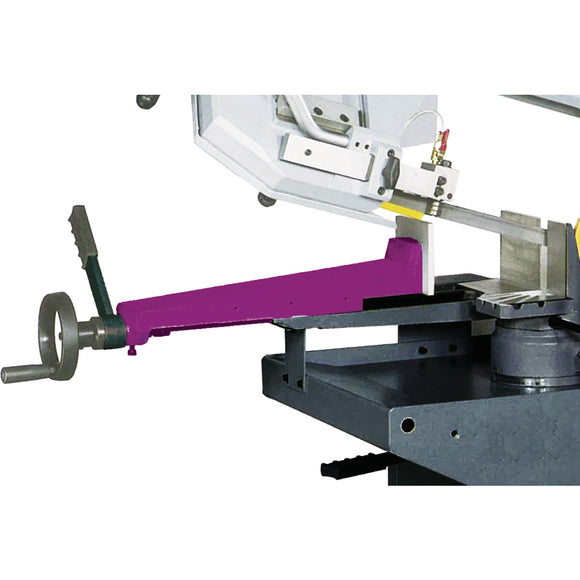

• material stop
• Bi-metal saw band
• substructure
• Coolant pump
