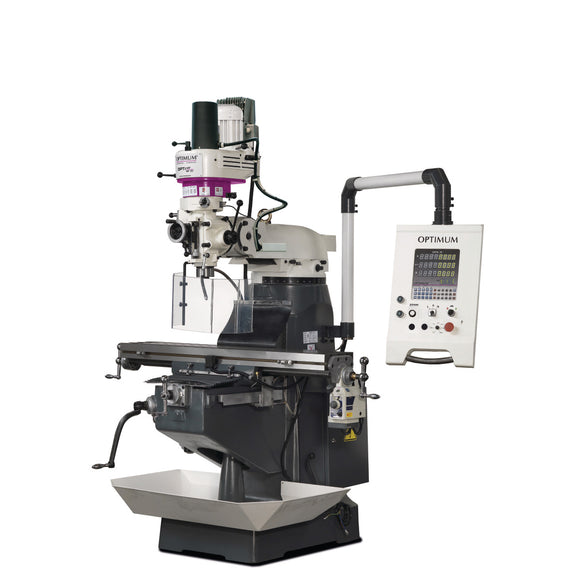

Drilling-milling machine OPTImill MF 2V

• Continuous drilling performance (steel) 20 mm
• Coolant pump(s) drive power 100 W

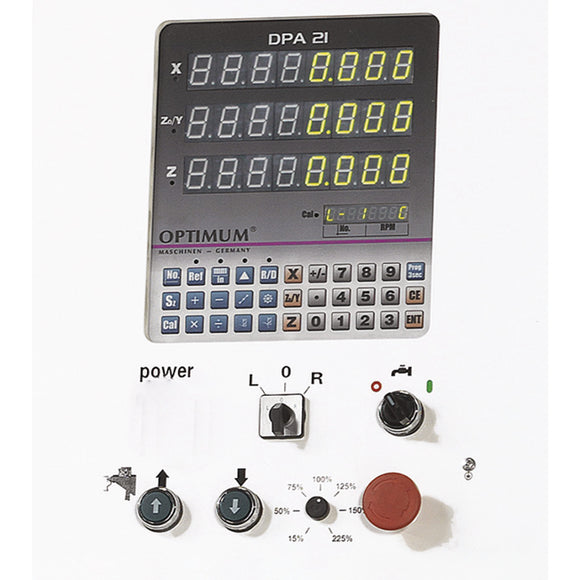

• Digital position indicator DPA 21
• Drilling performance (steel) 24 mm
• EMC level C2
• Frequency 50 Hz
• Height 2150 mm
• Horizontal milling table length 1244 mm
• Horizontal milling table max. load bearing capacity 230 kg
• Horizontal milling table width 230 mm
• Length 1400 mm
• Max. size milling head 76 mm
• Max. size shaft milling cutter 18 mm
• Mill head swivel range ± 90 °
• Net weight 950 kg
• Standard DIN EN 55011
• Supply voltage 400 V
• Total rated value 2,2 kW
• Travel X axis automatic 730 mm
• Travel Y axis milling head 320 mm
• Vertical spindle drive motor output normal operation 1,5 kW
• Vertical spindle number of gears 6
• Vertical spindle quill feed 0.04 / 0.08 / 0.15 mm/rev
• Vertical spindle quill stroke 127 mm
• Vertical spindle reach from to 213 – 533 mm
• Vertical spindle speed range 10 – 5100 min¯¹
• Vertical spindle spindle chuck ISO 40 DIN 2080
• Width 1450 mm
• X-axis travel 800 mm
• Y-axis travel 305 mm
• Z-axis travel 406 mm

• Chip tray
• Operating tool
