Universal milling machine OPTImill MT 200

€33.886,50 EUR (€27.550,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3336120 Barcode: 4030635018879

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

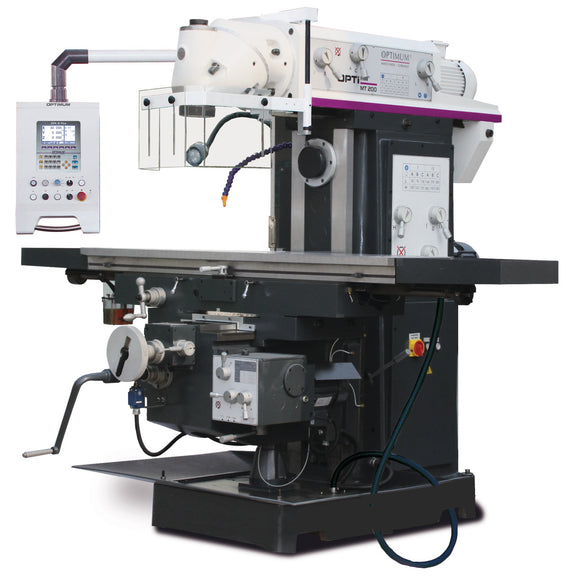

Universal milling machine OPTImill MT 200.
  • Versatile range of applications
  • Robust machine design
  • Heavy, solid design made of high-quality Meehanite cast iron
  • Smooth running due to ground gear wheels running in an oil bath
  • All guides are hardened and can be adjusted using wedge strips
  • Stable flat bed guide in the Y and Z axes
  • Central lubrication
  • Large decoupled handwheels with scale
  • LED machine lamp
  • Coolant device
  • Simple operation of the switching elements
  • Table feed X- and Y-axis
  • Z-axis with electric table height adjustment
  • Solid and generously dimensioned cross table, precisely surface-finished with T-slots
  • Vertical and horizontal milling position

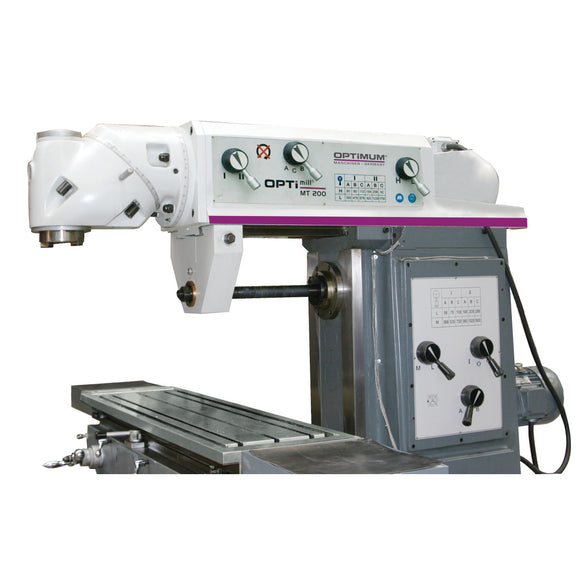

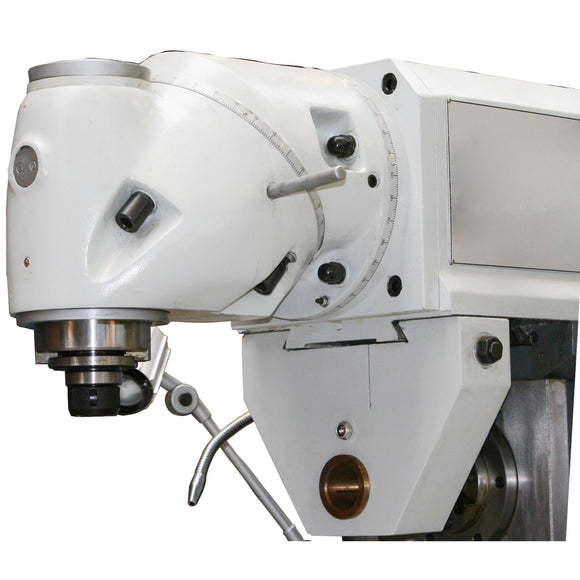

  • Milling head with two rotary axes, can be swiveled and rotated at any spatial angle
  • Counter holder for horizontal milling always within reach thanks to attachment at the rear
  • Height-adjustable protective screen with microswitch to prevent flying chips and parts for maximum user protection
  • Feed motor with fixed steps


.
  • Coolant pump(s) drive power 90 W

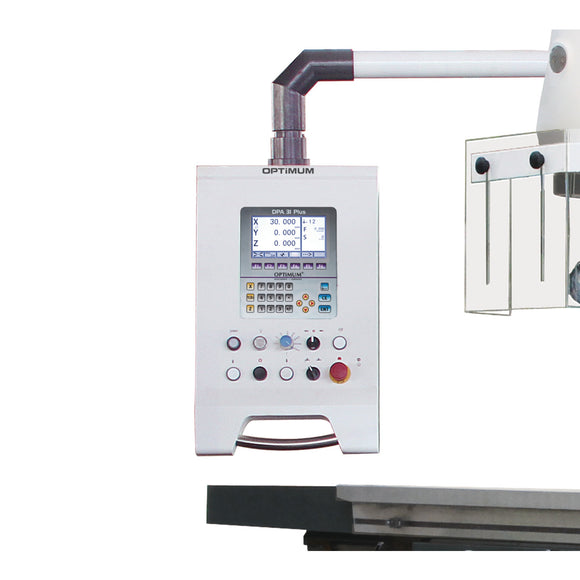

  • Digital position indicator DPA 31 Plus
  • Fast motion speed X axis 1290 mm/min
  • Fast motion speed Y axis 1290 mm/min
  • Fast motion speed Z axis 342 mm/min
  • Feed gears X axis 8 Steps
  • Feed gears Y axis 8 Steps
  • Feed gears Z axis 8 Steps
  • Frequency 50 Hz

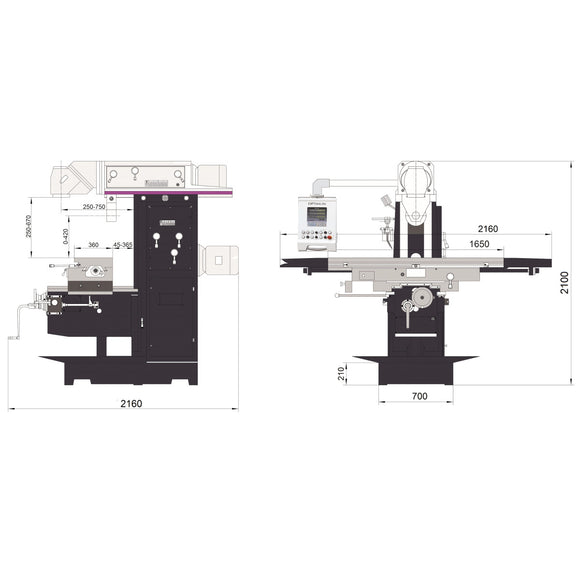

  • Height 2100 mm
  • Horizontal milling table length 1650 mm
  • Horizontal milling table max. load bearing capacity 450 kg
  • Horizontal milling table rotation 35 °
  • Horizontal milling table width 360 mm
  • Horizontal spindle drive motor output 4 kW
  • Horizontal spindle gear 58 – 1800 min¯¹
  • Horizontal spindle number of gears 12
  • Horizontal spindle spindle chuck ISO 50 DIN 2080
  • Horizontal spindle spindle chuck diameter 22 mm
  • Length 2160 mm
  • Max. distance spindle to column 750 mm
  • Max. size milling head 100 mm
  • Max. size shaft milling cutter 20 mm
  • Min. distance spindle to column 250 mm
  • Net weight 2700 kg
  • Standard DIN EN 55011
  • Supply voltage 400 V
  • Total rated value 9.2 kW
  • Travel X axis automatic 1210 mm
  • Travel Y axis automatic 200 mm
  • Travel Z axis automatic 320 mm
  • Vertical spindle drive motor output normal operation 4 kW
  • Vertical spindle number of gears 12
  • Vertical spindle speed range 60 – 1750 min¯¹
  • Vertical spindle spindle chuck ISO 50 DIN 2080
  • Vertical spindle tightening bar M 24
  • Width 2160 mm
  • X axis feed drive motor output 1,1 kW
  • X axis feed speed 22 – 380 mm/min
  • X-axis travel 1290 mm
  • Y axis feed drive motor output 1,1 kW
  • Y axis feed speed 20 – 380 mm/min
  • Y-axis travel 280 mm
  • Z axis feed drive motor output 1,1 kW
  • Z axis feed speed 7 – 127 mm/min
  • Z-axis travel 400 mm
  • Milling spindle for horizontal milling Ø 32 mm
  • Milling spindle for horizontal milling Ø 27 mm
  • Milling arbor ISO 50
  • Milling cutter chuck ISO 50 Ø 4 - Ø 26 mm
  • Operating tool

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

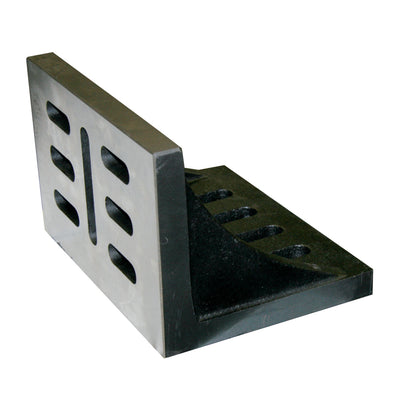

Stop angle 90 degrees Stop angle 90 degrees - 0

Stop angle 90 degrees

Optimum

€190,65 EUR
Down device Table groove 14 mm / M 12 Down device Table groove 14 mm / M 12 - 0

Down device Table groove 14 mm / M 12

Optimum

€100,86 EUR

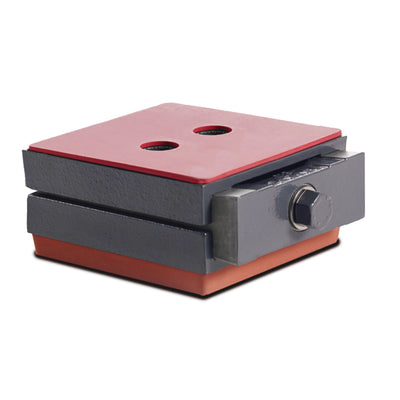

Precision machine foot SEU1 Precision machine foot SEU1 - 0

Precision machine foot SEU1

Optimum

€215,25 EUR
Enquire

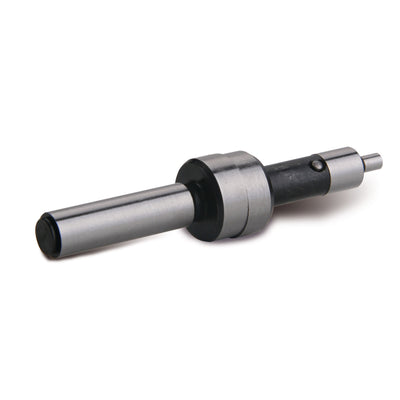

Edge finder Diameter 10 mm Edge finder Diameter 10 mm - 0

Edge finder Diameter 10 mm

Optimum

€14,64 EUR

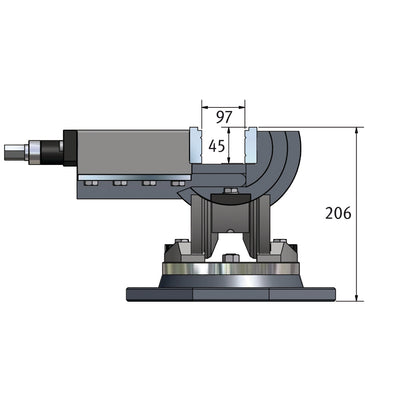

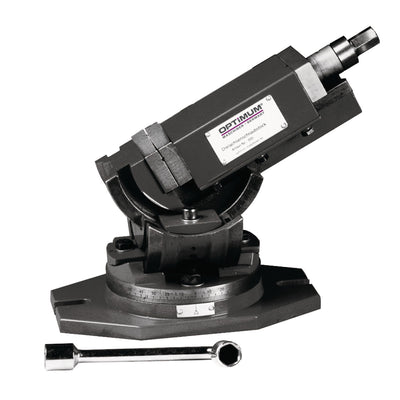

Three axis vise MV3-125 Three axis vise MV3-125 - 0
