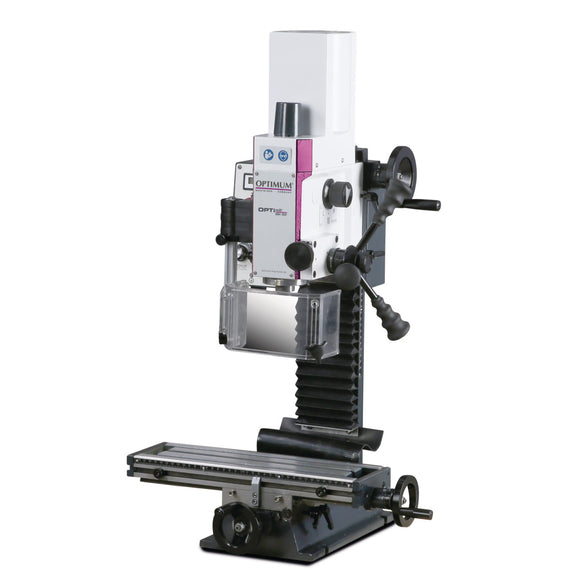

Optimum OPTImill MH 15V Milling Machine

Technical Specifications

Drilling Capacity

• Drilling capacity in steel: 13 mm
• Continuous drilling capacity in steel: 11 mm

Milling Capacity

• Maximum milling head size: 50 mm
• Maximum shaft milling cutter size: 13 mm
• Milling head swivel range: ±90°

Speed and Drive

• Motor power: 0.5 kW
• Supply voltage: 230 V
• Frequency: 50 Hz
• Vertical spindle speed range: 90–2250 min⁻¹
• Vertical spindle gear stages: 2

Vertical Spindle

• Quill diameter: 60 mm
• Quill stroke: 50 mm
• Spindle reach: 145 mm
• Spindle taper: MT 2
• Drawbar thread: M10

Milling Table

• Table length: 400 mm
• Table width: 120 mm

Axis Travel

• X-axis travel: 240 mm
• Y-axis travel: 135 mm
• Z-axis travel: 150 mm

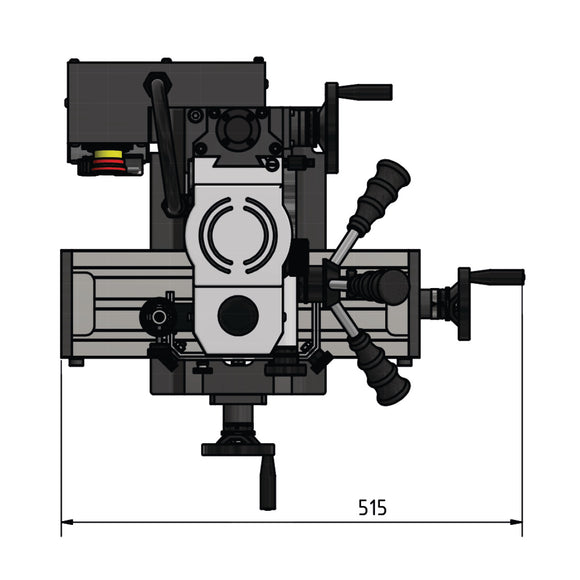

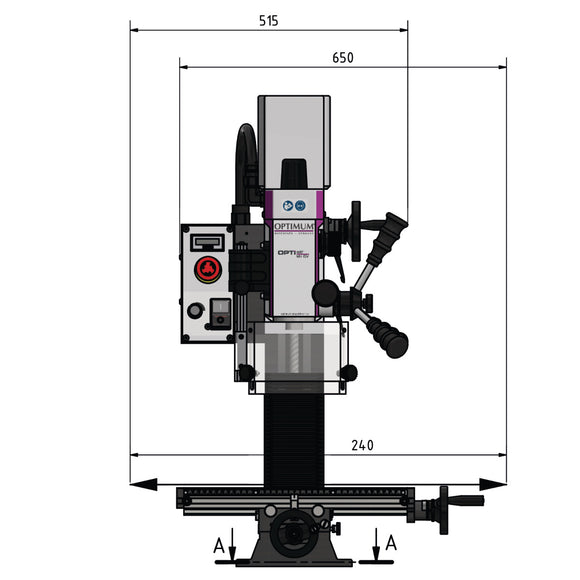

Dimensions and Weight

• Length: 504 mm
• Width: 515 mm
• Height: 800 mm
• Net weight: 58.5 kg

• Drill chuck 1-13 mm
• taper shank
• T-nut
• Operating tool
