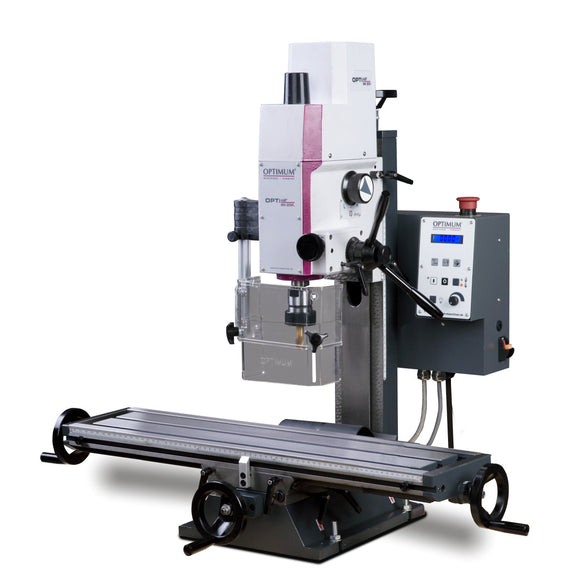

Drilling-milling machine OPTImill MH 20VL

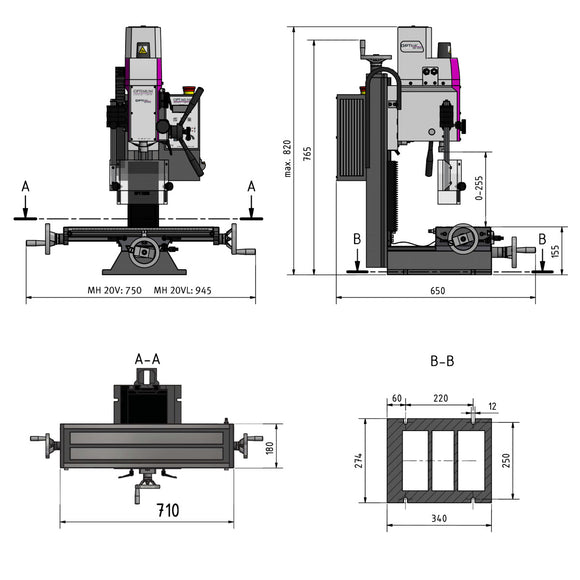

The Optimum OPTImill MH 20VL is a 230 V drilling and milling machine with an electronically infinitely variable drive (100 to 3000 min⁻¹), a 700 × 180 mm cross table and 480 mm X-axis travel. Tapered roller bearings hold spindle concentricity to 0.015 mm or better, while play-free adjustable axes, a ±60° tiltable head and 24 V safety electronics let you mill and drill accurately and safely, without chatter, loose axes or rework on small precision jobs.

Key features

• Precision-machined construction
• High concentricity of 0.015 mm or better, measured in the sleeve, thanks to tapered roller bearings
• Powerful DC motor with permanent current monitoring
• Motor with two-stage gear ratio for powerful transmission of motor power
• Air filter for the motor
• New electrical system with improved motor protection (extended circuit board plus an additional board for EMC)
• Safety electrics in 24 V version

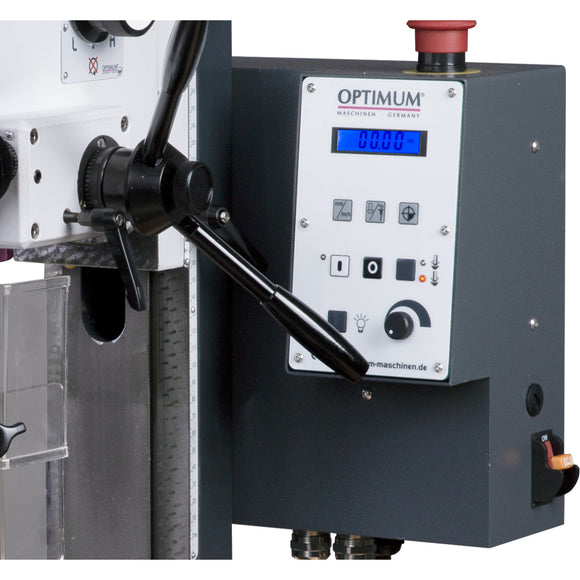

• Control electronics with integrated relay control
• Large, solid cross table, precisely surface-machined, with T-slots and adjustable gibs
• Stable dovetail guides with adjustable gibs
• Adjustable end stops
• Feed spindle play can be adjusted and readjusted
• Double-row angular contact ball bearings in the axes, adjustable without play

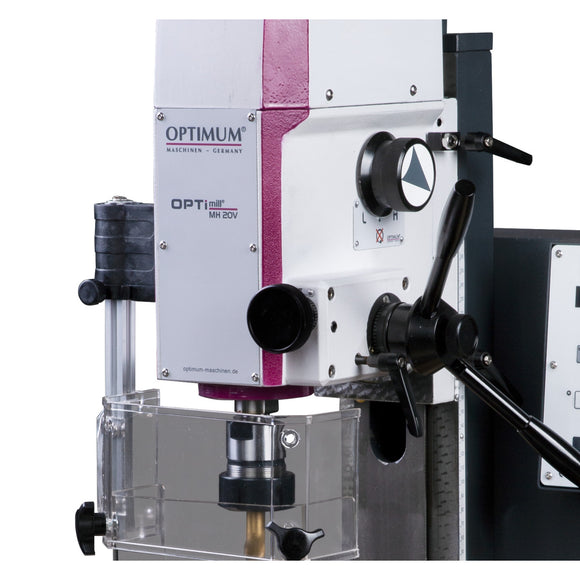

• Drilling/milling head tiltable by ±60°
• Right/left rotation
• Machine lamp
• Height-adjustable protective screen with microswitch, protecting the operator from flying chips and parts
• Emergency stop switch
• Lockable main switch
• Prepared for mounting the DRO5 digital position indicator on the X and Y axes (groove ready for retrofitting the magnetic strips)
