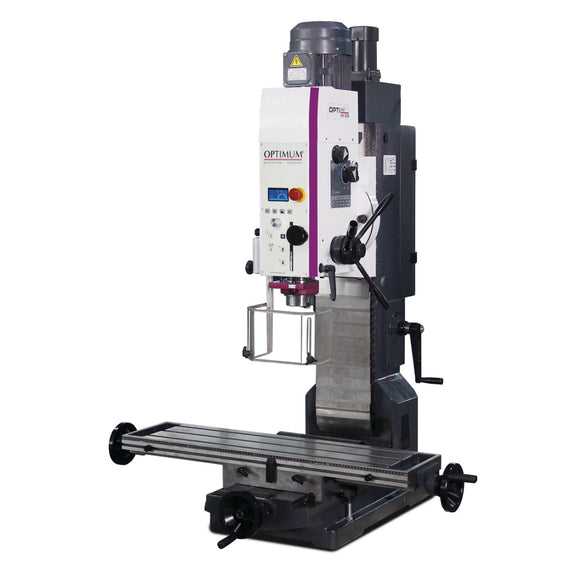

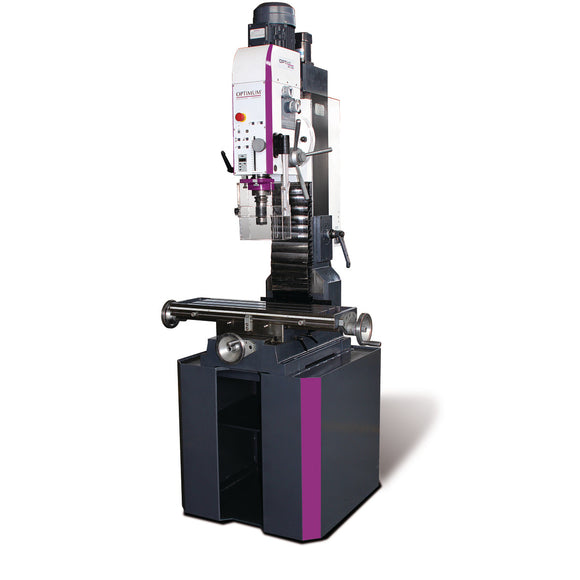

Drilling-milling machine OPTImill MH 50G

• Continuous drilling performance (steel) 32 mm
• Drilling performance (steel) 38 mm
• Frequency 50 Hz

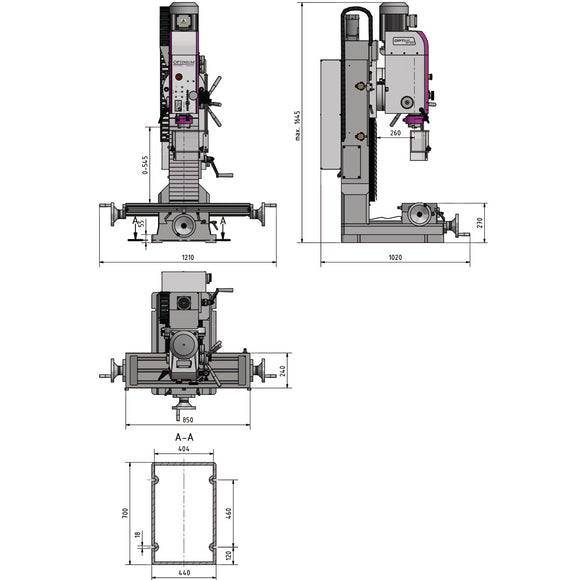

• Height 1645 mm
• Horizontal milling table length 850 mm
• Horizontal milling table max. load bearing capacity 175 kg
• Horizontal milling table width 240 mm
• Length 1210 mm
• Max. size milling head 80 mm
• Max. size shaft milling cutter 32 mm
• Motor power 1,5 / 2,2 kW
• Net weight 518 kg
• Supply voltage 400 V
• Travel Z axis automatic 385 mm
• Vertical spindle number of gears 2 x 6
• Vertical spindle quill diameter 80 mm
• Vertical spindle quill stroke 115 mm
• Vertical spindle reach 260 mm
• Vertical spindle speed range 225 – 3260 min¯¹
• Vertical spindle spindle chuck BT 40
• Width 1020 mm
• X-axis travel 520 mm
• Y-axis travel 260 mm
• Z-axis travel 465 mm

• operating tool
